4-24 Inputs and Outputs Revised June-2017
4.15.1 Wiring the 6-Point AO/DO Module
Caution
Configure all AO/DO points in ROCLINK before connecting any wiring.
Failure to do so may result in physical damage to the I/O board.

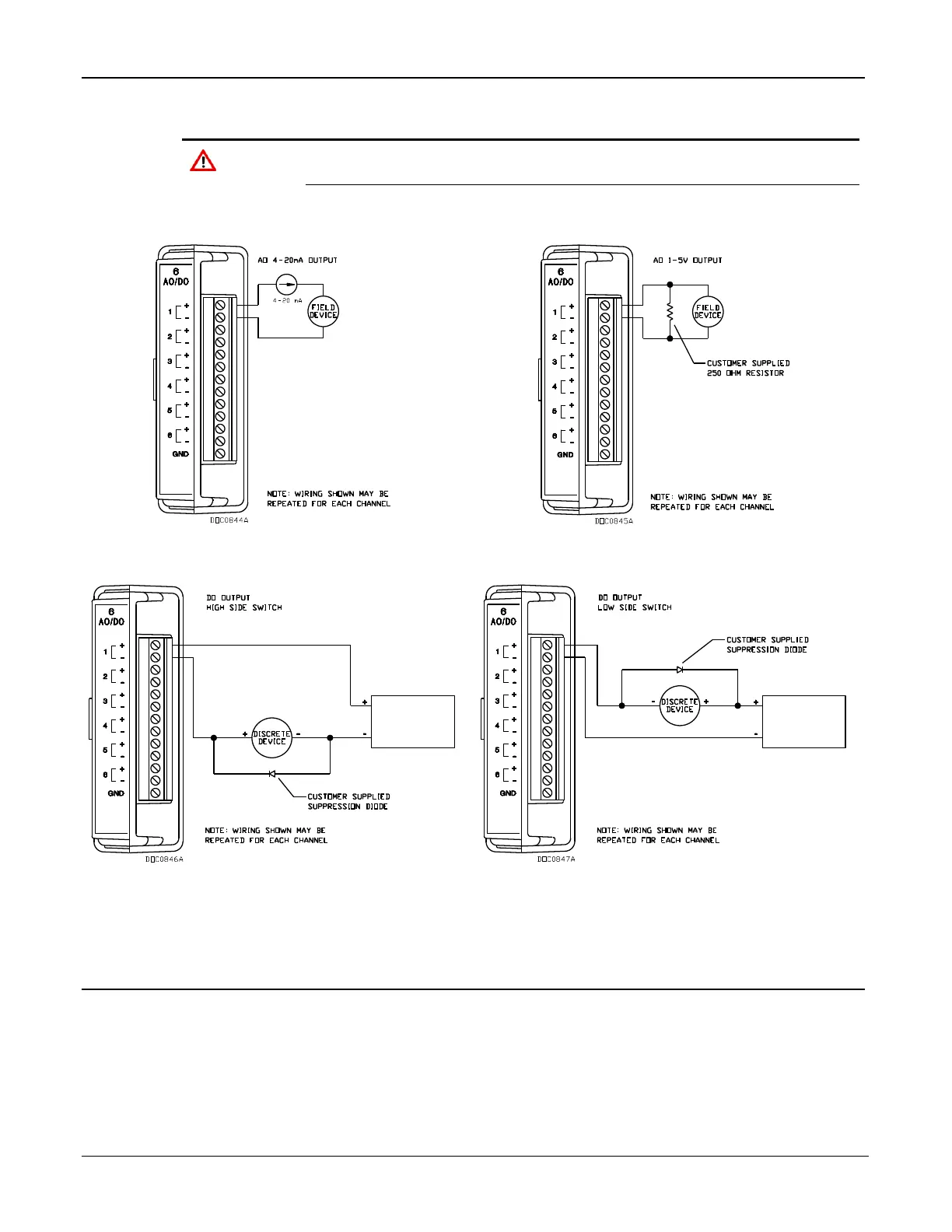

Figures 4-21 through 4-24 show a variety of wiring scenarios.
Figure 4-21. Analog Output 4-20 mA Wiring
Figure 4-22. Analog Output 1-5 V Wiring
DEVICE
POWER
SOURCE
DEVICE
POWER
SOURCE
Figure 4-23. Discrete Output High Side Switch
Wiring
Figure 4-24.. Discrete Output Low Side Switch
Wiring
4.16 HART
®
Module
The HART® (Highway Addressable Remote Transducer) module allows
the FB107 to communicate with HART devices using the HART
protocol. The HART module receives signals from and transmits signals
to HART devices.
The HART module has four input/output channels. Software configurable
switches on the module allow each channel to be set as an input or output
