Maintenance 17. Felt Sheet
228 VT Rev.1

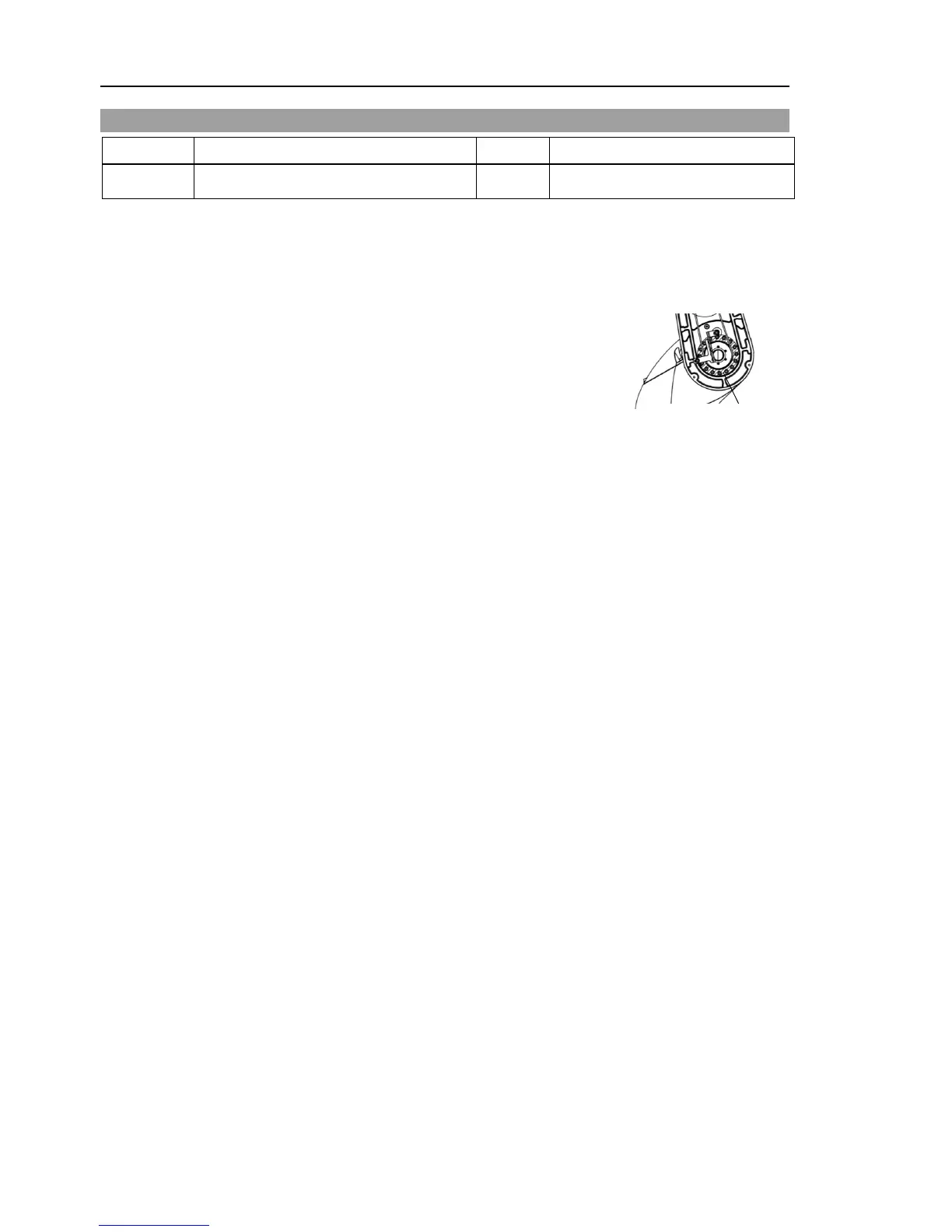

17.1 Replacing Joint #2 Felt Sheet
Name Quantity Note
Maintenance
parts
Felt Sheet 1 1755083
Joint #2
Felt Sheet
Removal
(1)
Turn OFF the Manipulator.
(2)
Remove
the Arm #2 Cover.
Reference: Maintenance 7.2 Arm #2 Cover
(2)
Remove J
oint #2 felt sheet from the Arm #2.
Hold a slit on the one side of felt sheet to remove
the
sheet
from the outside of the Joint #2.
Joint #2
Felt Sheet
Joint #2
Felt Sheet
Installation
(1)
Hold a slit on the one side of felt sheet to remove
the sheet from the outside of
the
Joint #2.
One side of
the felt sheet is a seal. Attach the felt sheet at the position where the Jo
int
2 screw holes and
the holes of the Joint #2 felt sheet matches.
(2)
M
ount the Arm #2 Cover.
Reference: Maintenance 7.2 Arm #2 Cover
