Epson VT6L User Manual

Maintenance 17. Felt Sheet
VT Rev.1 229

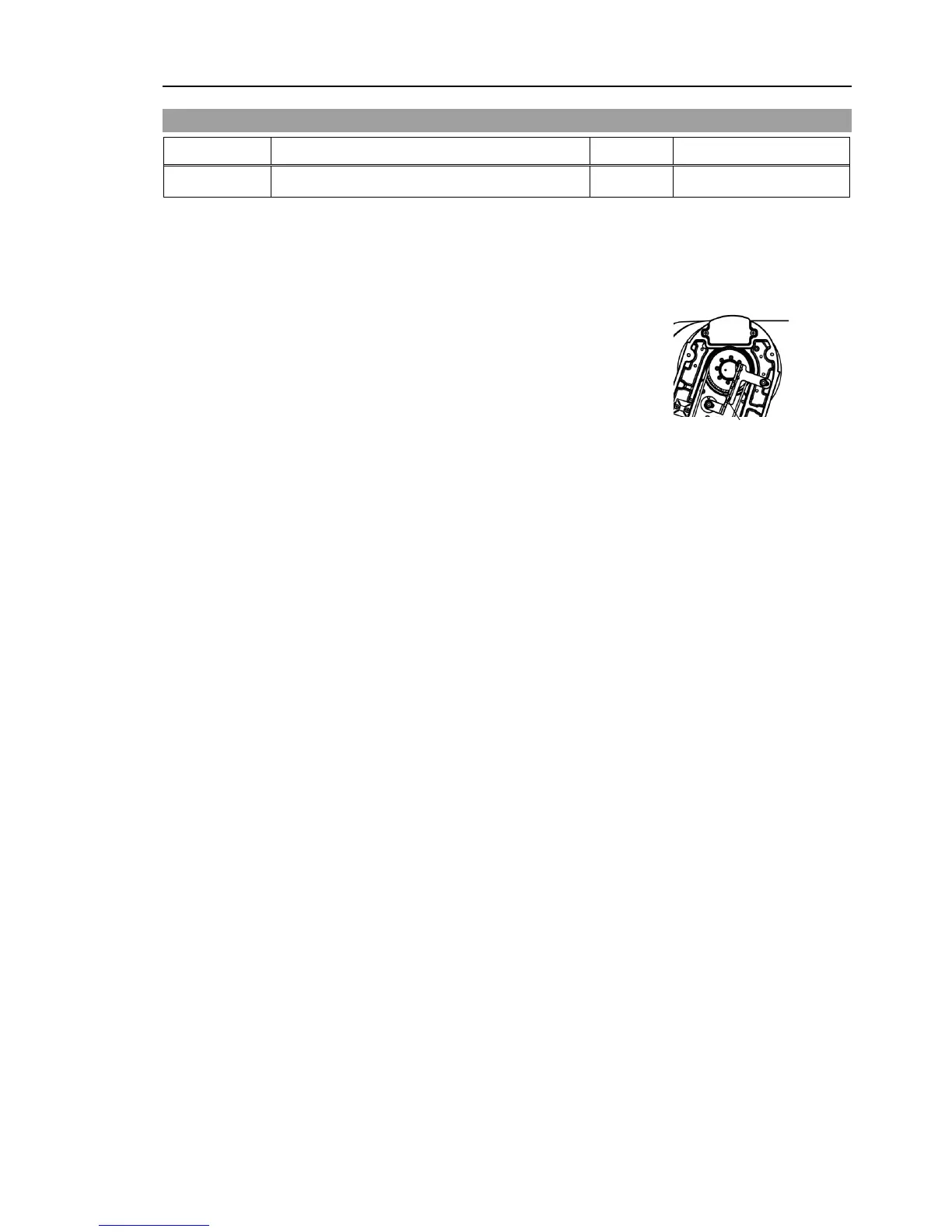

17.2 Replacing Joint #3 Felt Sheet
Name Quantity Note
Maintenance
parts
Felt Sheet 1 1755084
Joint #3
Felt Sheet
Removal
(1)
Turn OFF the Manipulator.
(2)
Remove
the Arm #2 Cover.
Reference: Maintenance 7.2 Arm #2 Cover
(2)
Remove J
oint #3 felt sheet from the Arm #2.
Hold a slit on the one side of felt sheet to remove
the
sheet from
the outside of the Joint #3.
Joint #
3
Felt Sheet
Joint #3
Felt Sheet
Installation
(1)
Hold a slit on the one side of
the Joint #3 felt sheet to remove the sheet from the
outside of
the Joint #3.
One side of
the felt sheet is a seal. Attach the felt sheet so that it fits in the
groove of
the Joint #3 of Arm #2.
(2)
M
ount the Arm #2 Cover.
Reference: Maintenance 7.2 Arm #2 Cover
