11. Options
VT series Manipulator has the following options.
11.1 Camera Plate Unit
11.2 Tool Adapter (ISO flange)
11.3 Adjustable Mechanical Stops
11.4 External Wiring Kit

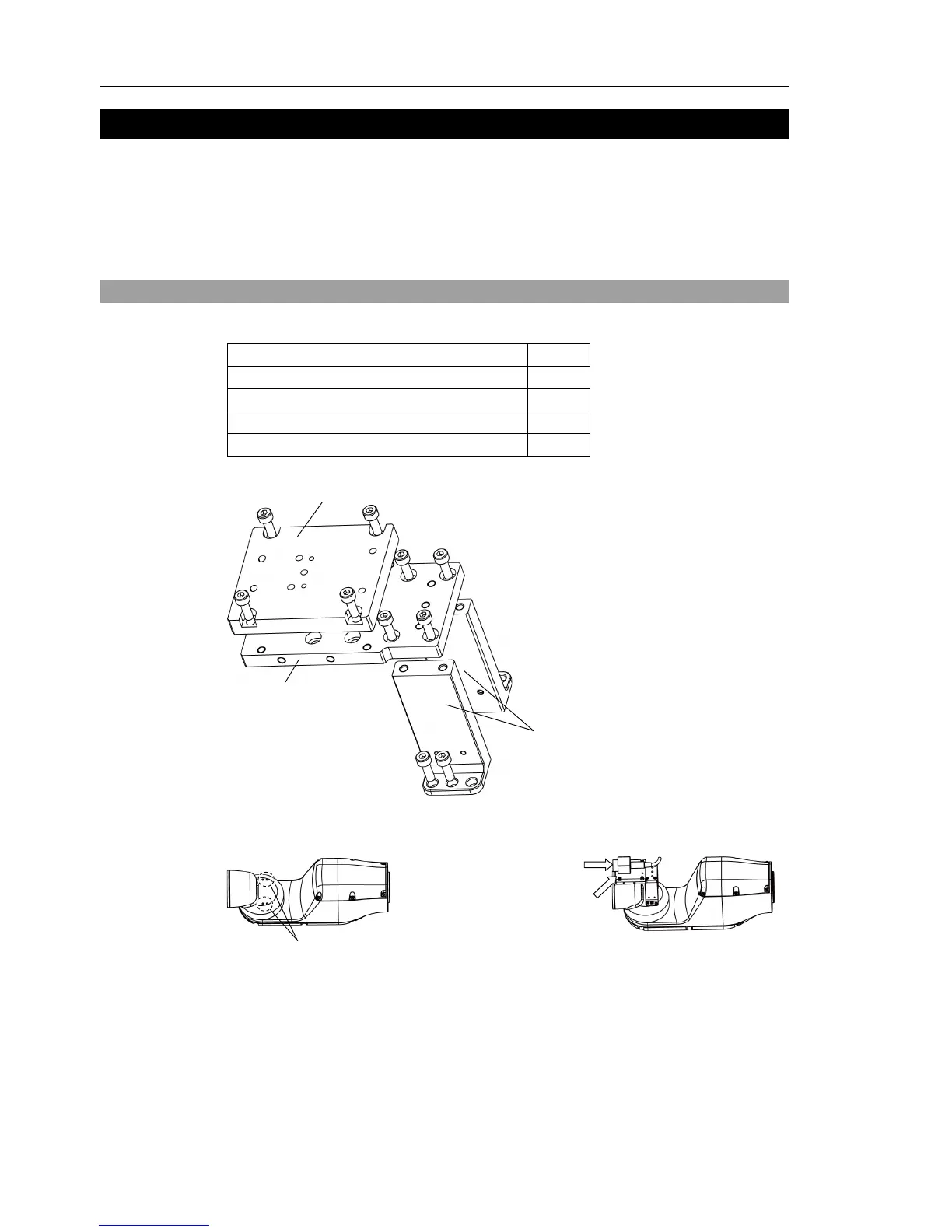

11.1 Camera Plate Unit
To mount a camera to the VT series manipulator, the camera plate unit is requried.
Parts included
Qty.
A
Camera adapter plate
1
B
Camera mid plate
1
C
Camera base plate
1
D
Hexagon socket head screws M4×12
12
B: Camera mid plate
C: Camera base plate
A: Camera adapter plate
Installation
Appearance of arm end with camera
Camera Plate Unit
mounting hole 4-M4
Camera Plate Unit
Camera
For the installation steps, refer to the following manual:
EPSON RC+ Option Vision Guide 7.0 Hardware & Setup
