02-I 9
Engine Service, 2.3L
02-I 9
2.3L ENGINE SERVICE (Continued)

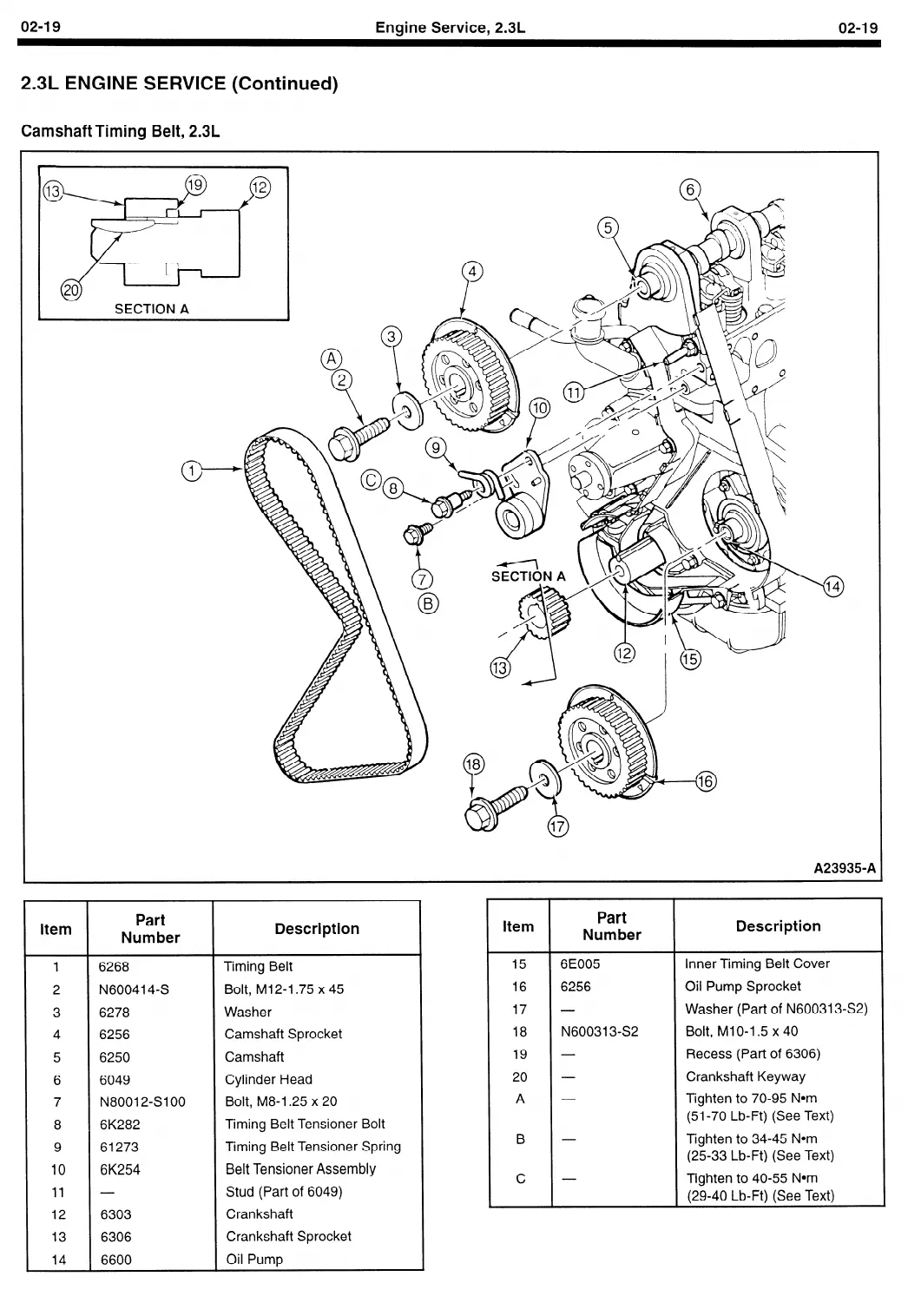

Camshaft Timing Belt, 2.3L
A23935-A
Item
1
2
3
4
5
6
7
8
9
IO
11
12
13
14
Part
Number
6268
N600414-S
6278
6256
6250
6049
N80012-SIOO
6K282
61273
6K254
6303
6306
6600
Description
Item
Timing Belt
Bolt, M12-1.75 x 45
Washer
Camshaft Sprocket
Camshaft
Cylinder Head
Bolt, M8-1.25 x 20
Timing Belt Tensioner Bolt
Timing Belt Tensioner Spring
Belt Tensioner Assembly
Stud (Part of 6049)
Crankshaft
Crankshaft Sprocket
Oil Pump
15
16
17
18
19
20
A
B
C
Part
Number
6E005
6256
N600313-S2
Description
Inner Timing Belt Cover
Oil Pump Sprocket
Washer (Part of N600313-S2)
Bolt, MlO-1.5 x 40
Recess (Part of 6306)
Crankshaft Keyway
Tighten to 70-95 Nom
(51-70 Lb-Ft) (See Text)
Tighten to 34-45 Nom
(25-33 Lb-Ft) (See Text)
Tighten to 40-55 Nom
(29-40 Lb-Ft) (See Text)
