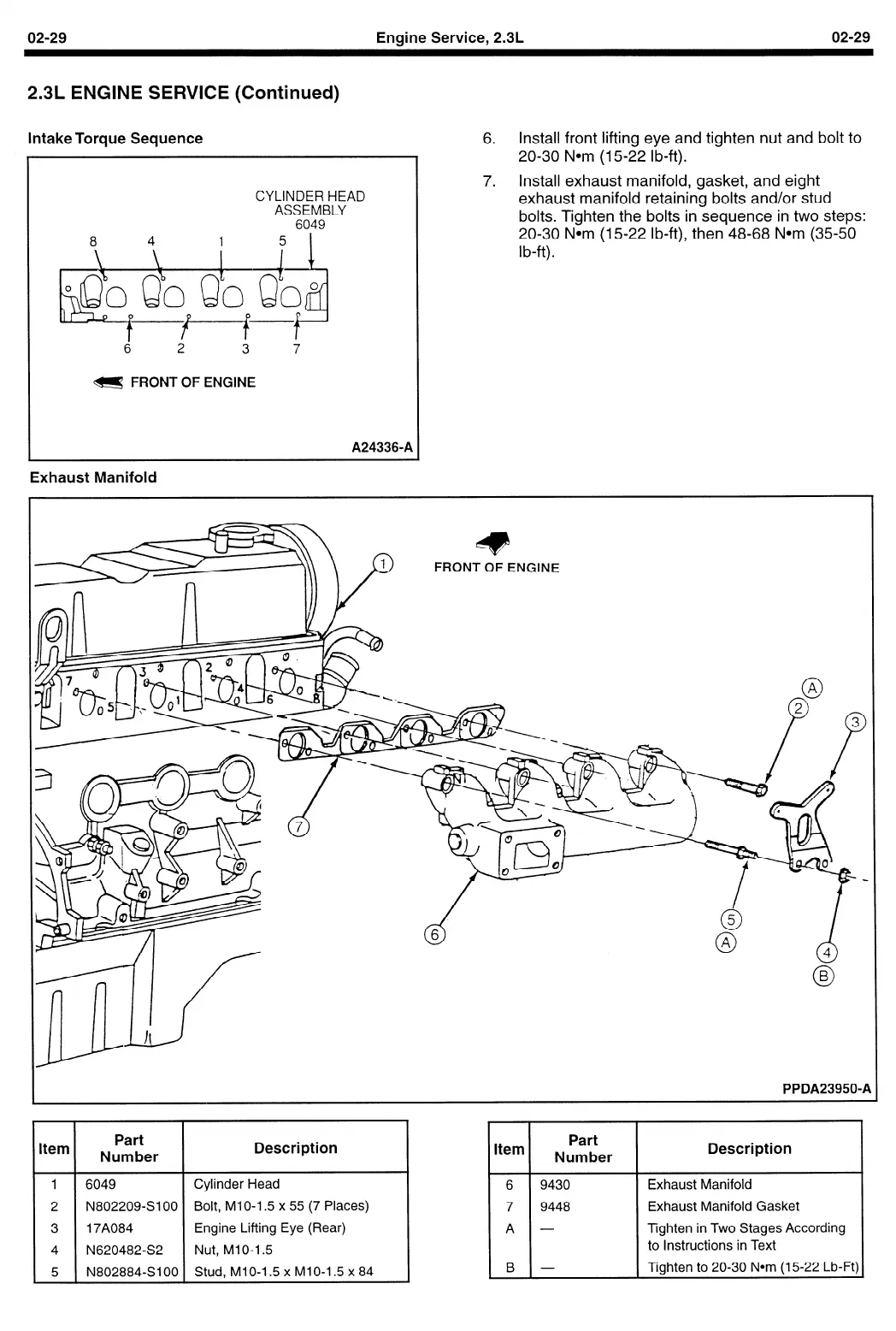

2.3L ENGINE SERVICE (Continued)
Intake Torque Sequence
CYLINDER HEAD
ASSEMBLY
6049
8
4
1
5 I
m FRONT OF ENGINE
A24336-A
Exhaust Manifold
6. Install front lifting eye and tighten nut and bolt to
20-30 Nom (15-22 lb-ft).
7. Install exhaust manifold, gasket, and eight
exhaust manifold retaining bolts and/or stud
bolts. Tighten the bolts in sequence in two steps:
20-30 Nom (15-22 lb-ft), then 48-68 Nom (35-50
I b-ft) .
PPDA23950-P
I I
Item
Part
Number
Description
1 6049 Cylinder Head
2 N802209-SlOO Bolt, MIO-1.5 x 55 (7 Places)
3
17A084 Engine Lifting Eye (Rear)
4 N620482-S2 Nut, Ml O-l 5
5 N802884-SIOO Stud, MlO-1.5 x MIO-1.5 x 84
I I
Item
Part
Number
Description
Exhaust Manifold
Exhaust Manifold Gasket
Tighten in Two Stages According
to Instructions in Text
Tighten to 20-30 Nom (15-22 Lb-Ft)
