GE Revolution CT User Manual

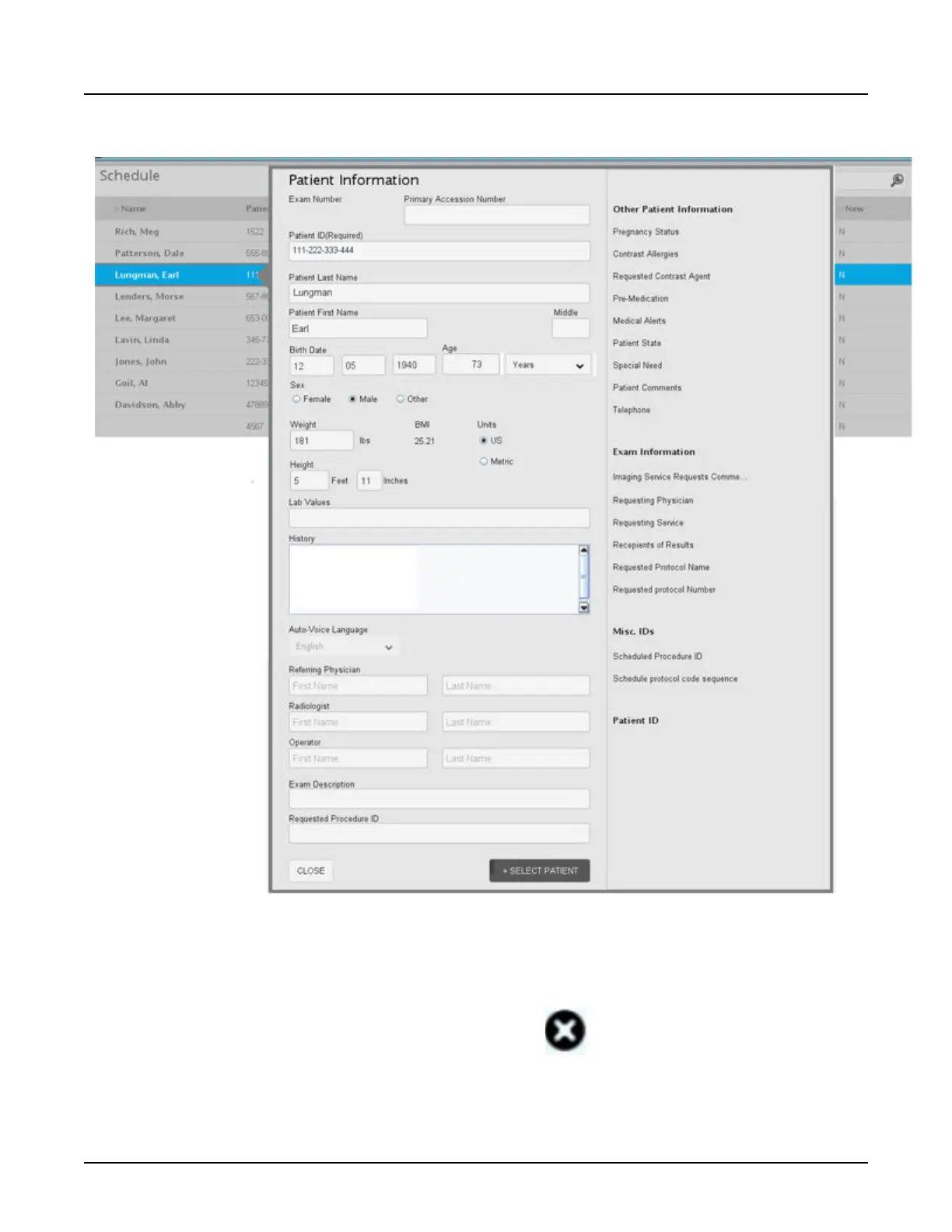

Illustration 5: Patient Information
2.5 Delete a patient from the schedule
1. From the scan monitor, click the Patient Schedule drawer.
2.
From the
Schedule window, select patients to be removed.
3.
Click the Delete icon at the right of the patient row . This applies only for locally created
patients. Alternatively, click [Delete All Completed] from the schedule dropdown menu to
remove all the completed patients, those marked with C.
Revolution CT User Manual
Direction 5480385-1EN, Revision 1
Chapter 10 Patient Schedule 209

GE Revolution CT Specifications

General

Detector Coverage	Up to 160 mm
Gantry Tilt	± 30 degrees
Spatial Resolution	Up to 0.23 mm
Scan Range	Up to 200 cm
X-ray Tube Current	Up to 800 mA
Type	Computed Tomography (CT) Scanner
Rotation Speed	0.28 seconds per rotation
Tube Voltage	80 kV to 140 kV
Number of Detector Rows	256
Power Requirements	480 VAC, 3-phase
Detector Rows	256
Coverage	160mm
