GE Revolution CT User Manual

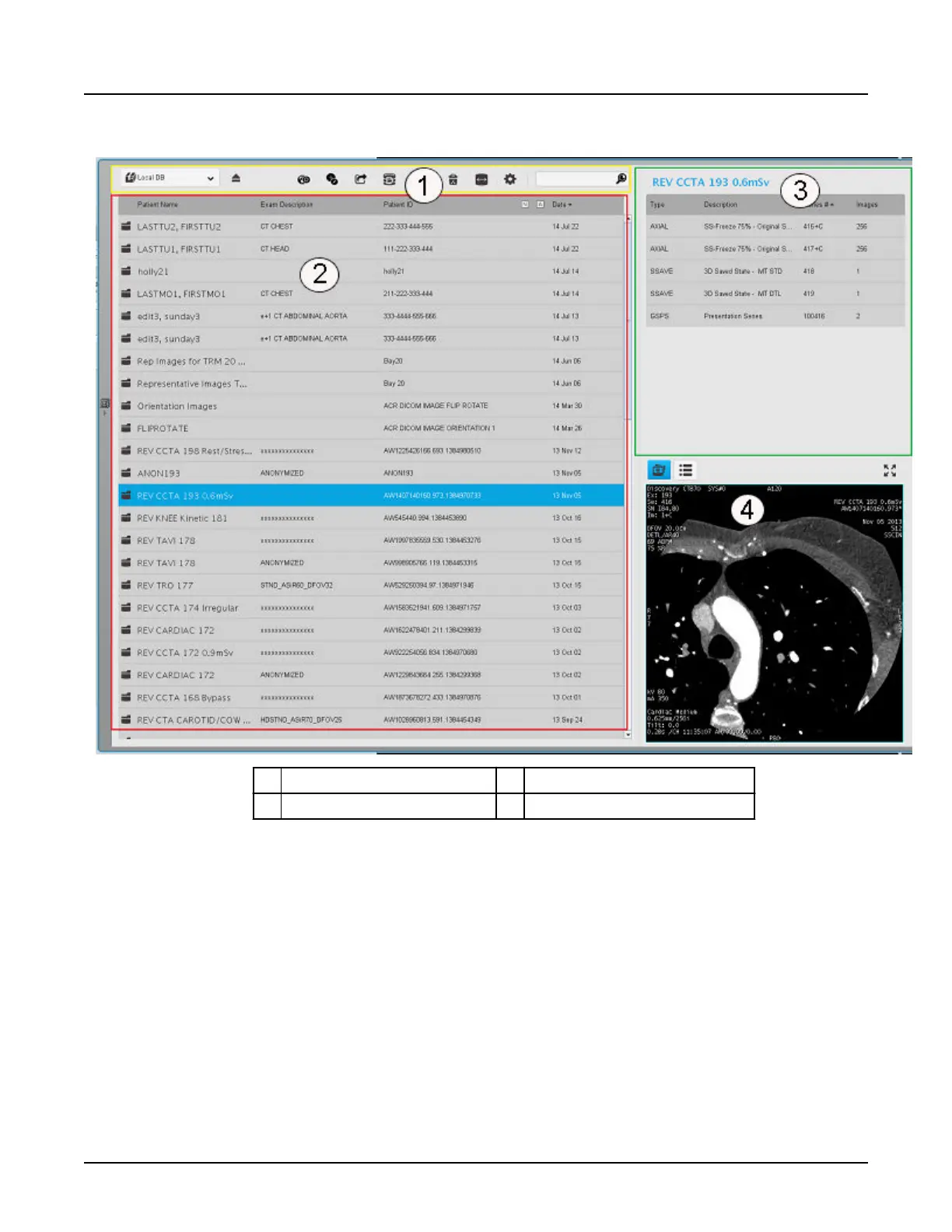

Illustration 2: Sections of the File Manager Drawer
1 Controls area 3 Series list
2 Exam list 4 Image display/Image list
Refer to the Chapter 17, File Manager section of the Data Management chapter for information
sorting the Exam list and on setting which columns display on the list.
2.1.1 Selecting images in File Manager
1. From the display monitor, open the File Manager drawer.
2.
From the Exam list, select the patient name.
3. The Series list shows the series for the selected patient. Select the series you want to view.
4.
The series loads into the Image viewport on the bottom right side of the right monitor.
5. Hover your cursor over the right of the viewport to reveal the scroll bar at the right of the
viewport.
By default, the first image in the series is displayed. To scroll through the images in the
series, click and drag the slider on the scroll bar.
Revolution CT User Manual
Direction 5480385-1EN, Revision 1
Chapter 14 View Images 375

GE Revolution CT Specifications

General

Detector Coverage	Up to 160 mm
Gantry Tilt	± 30 degrees
Spatial Resolution	Up to 0.23 mm
Scan Range	Up to 200 cm
X-ray Tube Current	Up to 800 mA
Type	Computed Tomography (CT) Scanner
Rotation Speed	0.28 seconds per rotation
Tube Voltage	80 kV to 140 kV
Number of Detector Rows	256
Power Requirements	480 VAC, 3-phase
Detector Rows	256
Coverage	160mm
