HEIDENHAIN MANUALplus 4110 Surface Machining Example 8.6

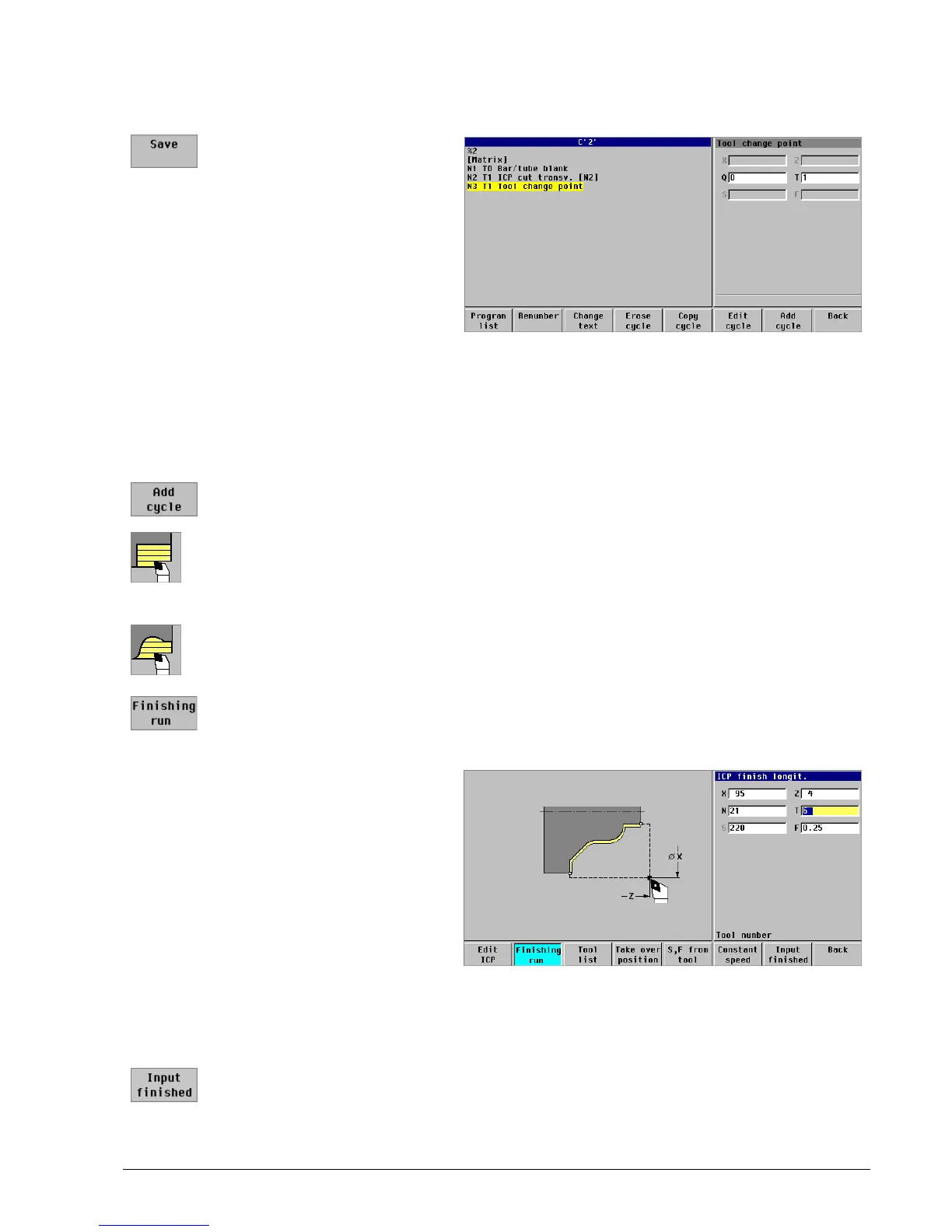

Create the “Matrix” cycle program
Program the cycle “ICP finishing longitudinal”
The matrix is finished from the inside towards the outside. For this reason the ICP contour
“Matrix – finishing contour” with the contour direction “from inside to outside” is used.
 Save the cycle:
Press the Save soft key
 Press the Add cycle soft
key
 Press the Roughing cycles,
longitudinal/transverse
menu key
 Press the ICP cutting
longitudinal menu key
 Switch to “Finishing cycle”:
Press the Finishing run
soft key
Enter the cycle parameters:
 Starting point X: 95 mm
 Starting point Z: 4mm
 ICP contour number N: 21
(For programming of the ICP contour,
see Page 20)
 Tool number T: 6
 Cutting speed S: 220 m/min
 Feed rate per revolution F:
0.25 mm/rev
Assume the tool number and technology
data from the tool file.
 Press the Input finished
soft key
