HEIDENHAIN MANUALplus 4110 Tool Management 4.13

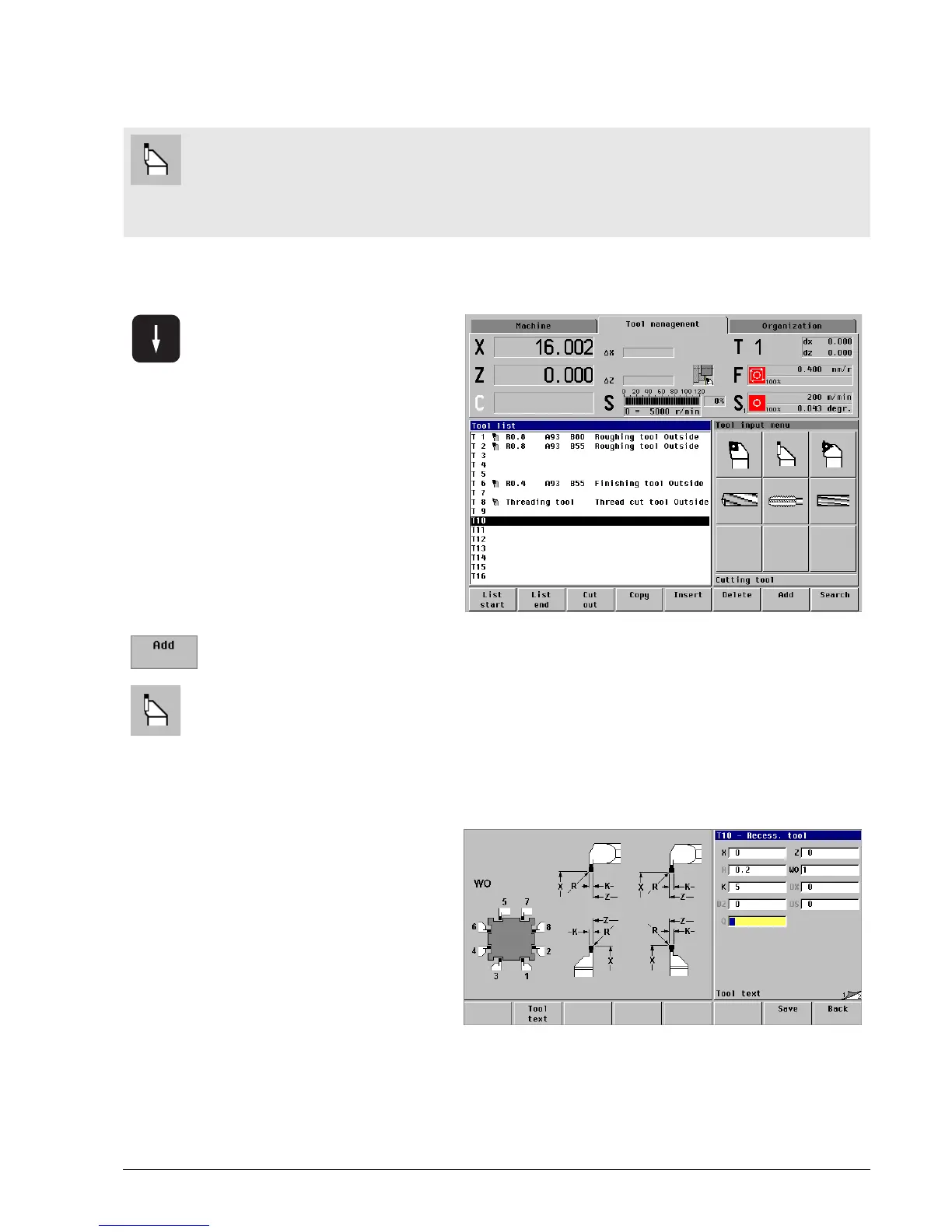

Creating tool T10
Specify the position in the tool manager
Enter the tool data (part 1)
Recessing tool T10  Cutting radius: 0.2 mm
 Cutting width: 5 mm
The setting dimensions are preliminarily entered
as 0.
 Place the cursor on position
T10:
Press the arrow key
repeatedly
 Add a new tool:
Press the Add soft key
 Select the tool type:
Press the Recessing tool
menu key
 Setup dimension X in X: 0 mm
 Setup dimension Z in Z: 0 mm
 Cutting radius R: 0.2 mm
 Tool orientation WO: 1
 Cutting width K: 5mm
 Wear compensation DX in X: 0 mm
 Wear compensation DZ in Z: 0 mm
 Special compensation DS: 0 mm
