HEIDENHAIN MANUALplus 4110 Tool Management 4.2

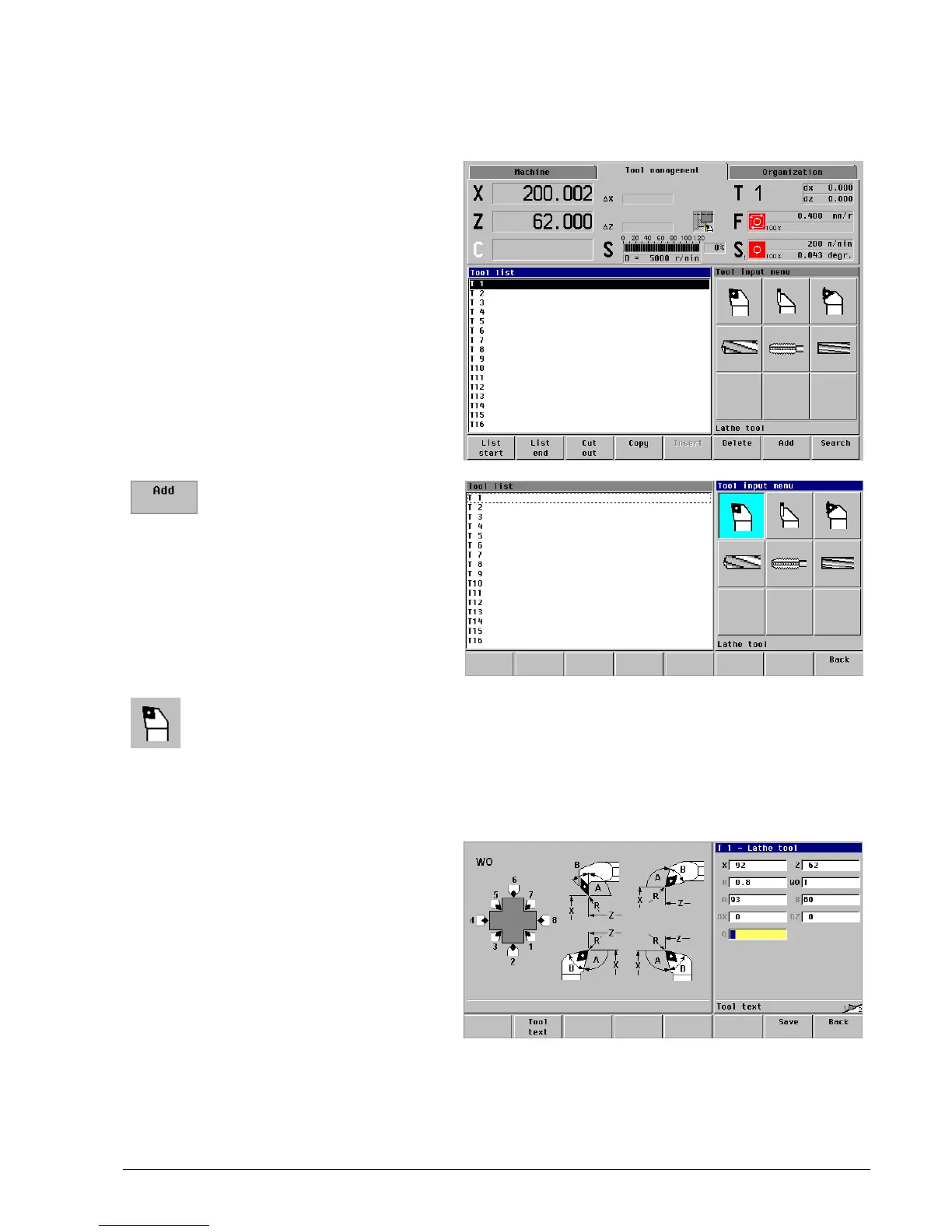

Creating tool T1
Specify the position in the tool manager
Enter the tool data (part 1)
 Activate the Tool Management mode
 Add a new tool:
Press the Insert soft key
(The cursor is on the
position T 1)
 Select the tool type:
Press the Lathe tool menu
key
 Setup dimension X in X: 92 mm
 Setup dimension Z in Z: 62 mm
 Cutting radius R: 0.8 mm
 Tool orientation WO: 1
(outside tool, machining direction
toward the chuck)
 Tool angle A: 93°
 Tip angle B: 80°
 Wear compensation DX in X: 0 mm
 Wear compensation DZ in Z: 0 mm
