HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.22

Create the “Threaded stud” cycle program

Run a graphic simulation of the cycle

The tool-path simulation accounts for the exact geometry of the tool tip. Therefore, this

simulation is recommended for the finishing process.

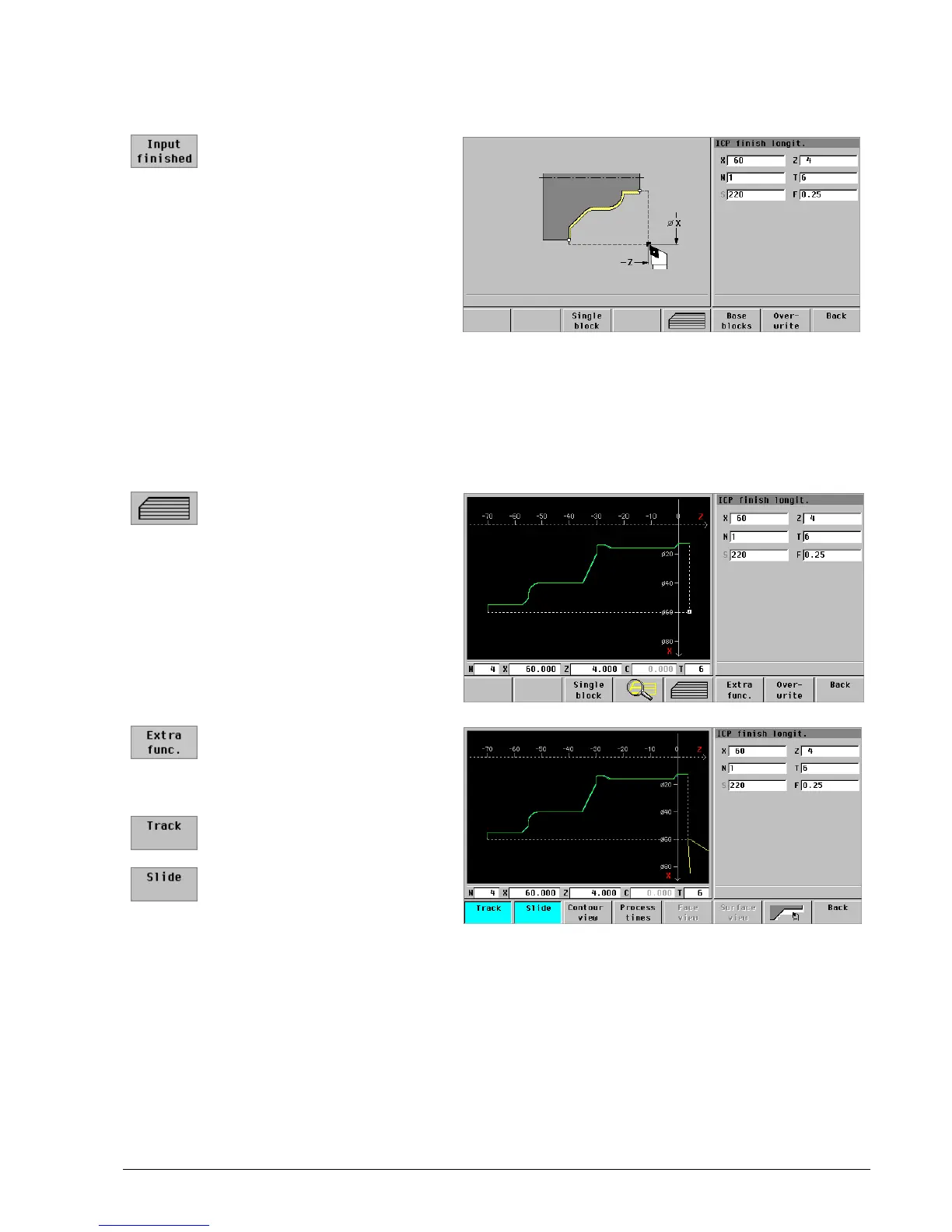

 Conclude input:

Press the Input finished

soft key

 Press the Graphics soft key

 Call the additional functions

of the simulation:

Press the Extra functions

soft key

 Press the Track soft key

 Press the Slide soft key
