HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.8

Create the ICP contour “Threaded stud”

Contour element 2 (thread undercut)

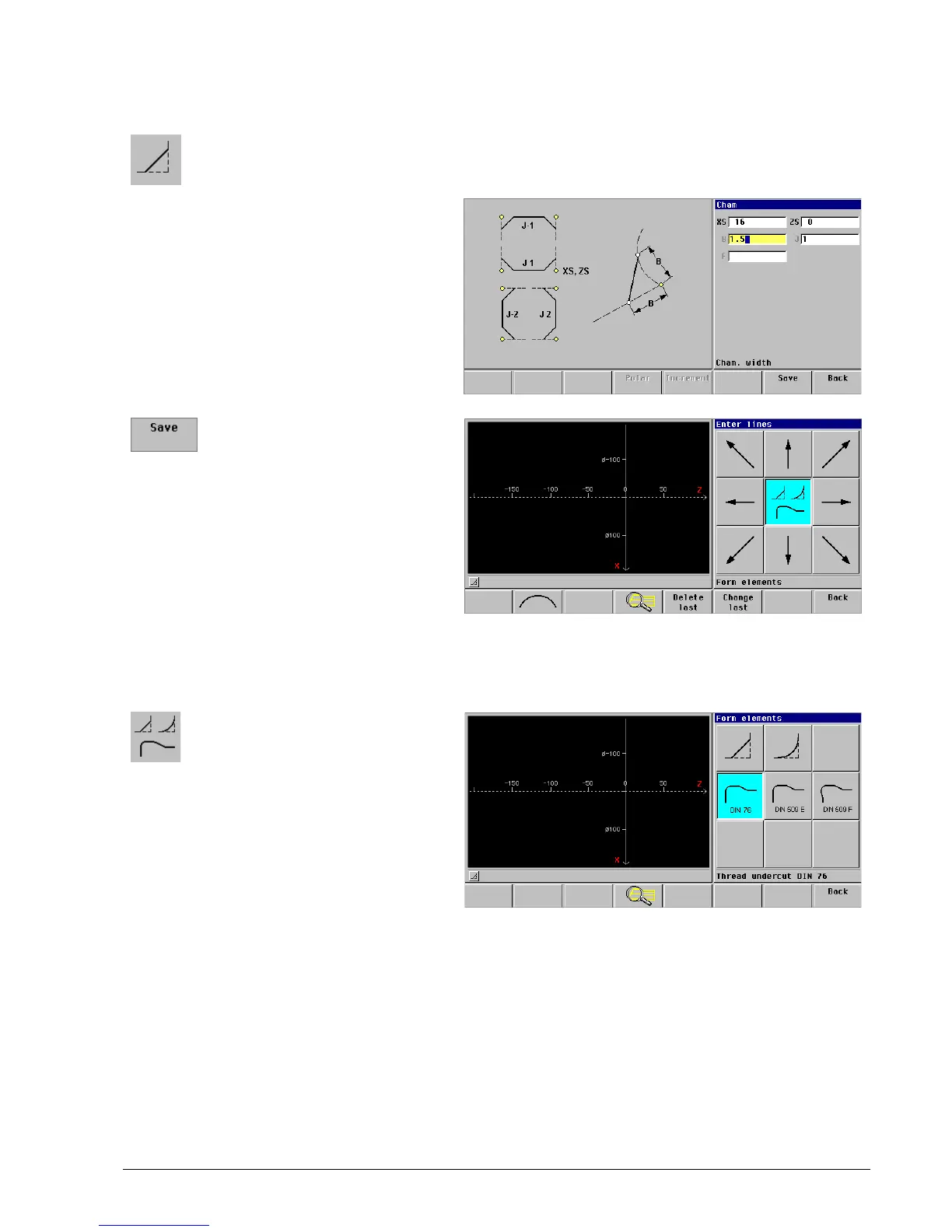

 Press the Chamfer menu

key

Describe the contour element:

 Starting point XS in X: 16 mm

 Starting point ZS in Z: 0 mm

 Chamfer width B: 1.5 mm

 Element position J: 1

 Special feed rate F: No entry

 Conclude entry:

Press the Save soft key

“Unresolved elements” are shown as

symbols below the graphics window

 Press the Form elements

menu key

Contents3
