HEIDENHAIN MANUALplus 4110 Recess Machining Example 9.4
Create the “Form roll” cycle program
Run a graphic simulation of the cycle
The tool-path simulation accounts for the exact geometry of the tool tip. Therefore, this
simulation is recommended for the recessing process.

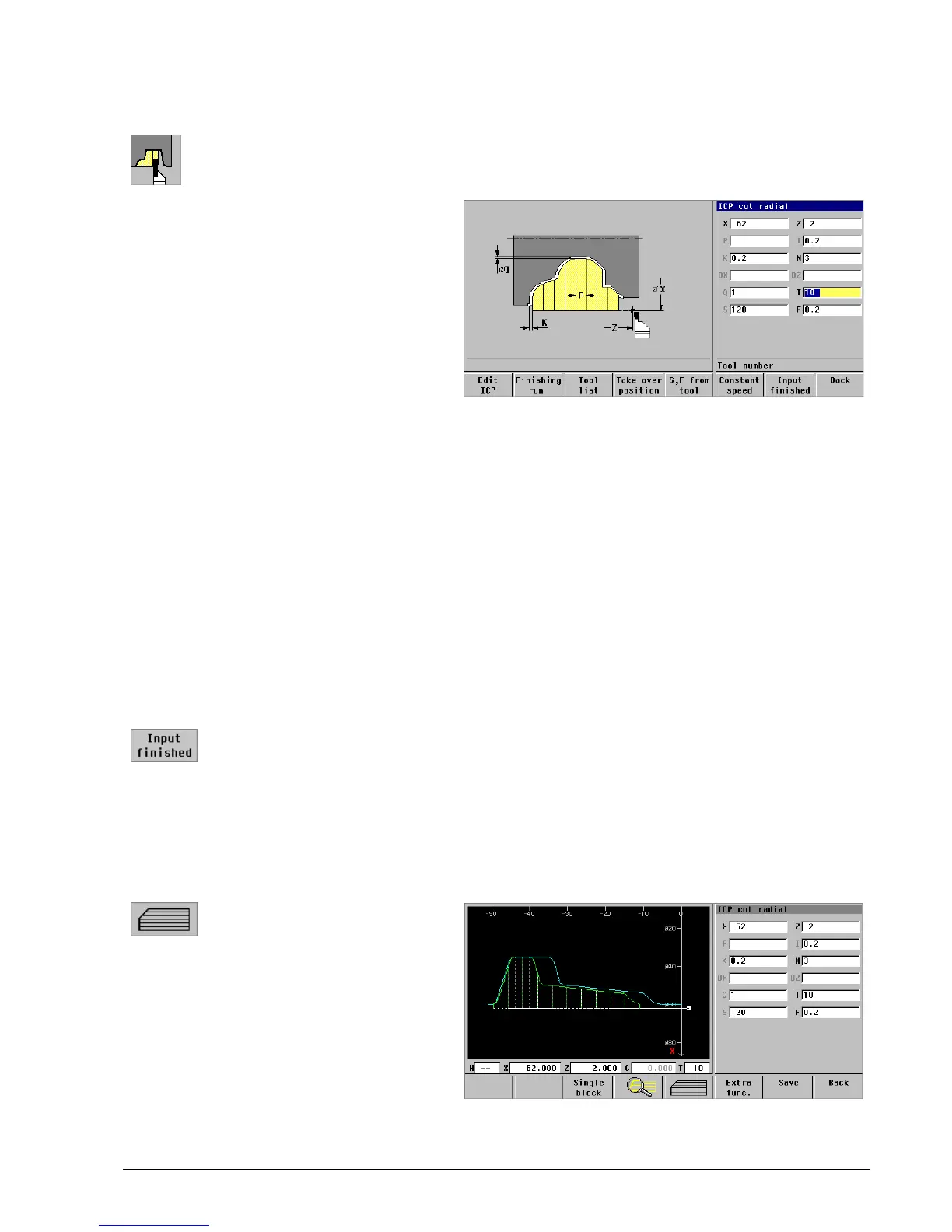

 Press the ICP cut radial
menu key
Enter the cycle parameters:
 Starting point X: 62 mm
 Starting point Z: 2mm
 Recessing width P: No entry
(The recessing width is derived from
the “cutting width” tool parameter.)
 I oversize X: 0.2 mm
 K oversize Z: 0.2 mm
 ICP contour number N: 3
(For programming of the ICP contour,
see Page 11)
 Distance DX to the subsequent
recess: No entry
 Distance DZ to the subsequent
recess: No entry
 Q number of recess cycles: 1
 Tool number T: 10
 Cutting speed S: 120 m/min
 Feed rate per revolution F:
0.2 mm/rev
Assume the tool number and technology
data from the tool file.
 Press the Input finished
soft key
 Press the Graphics soft key
