HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.21
Create the “Threaded stud” cycle program

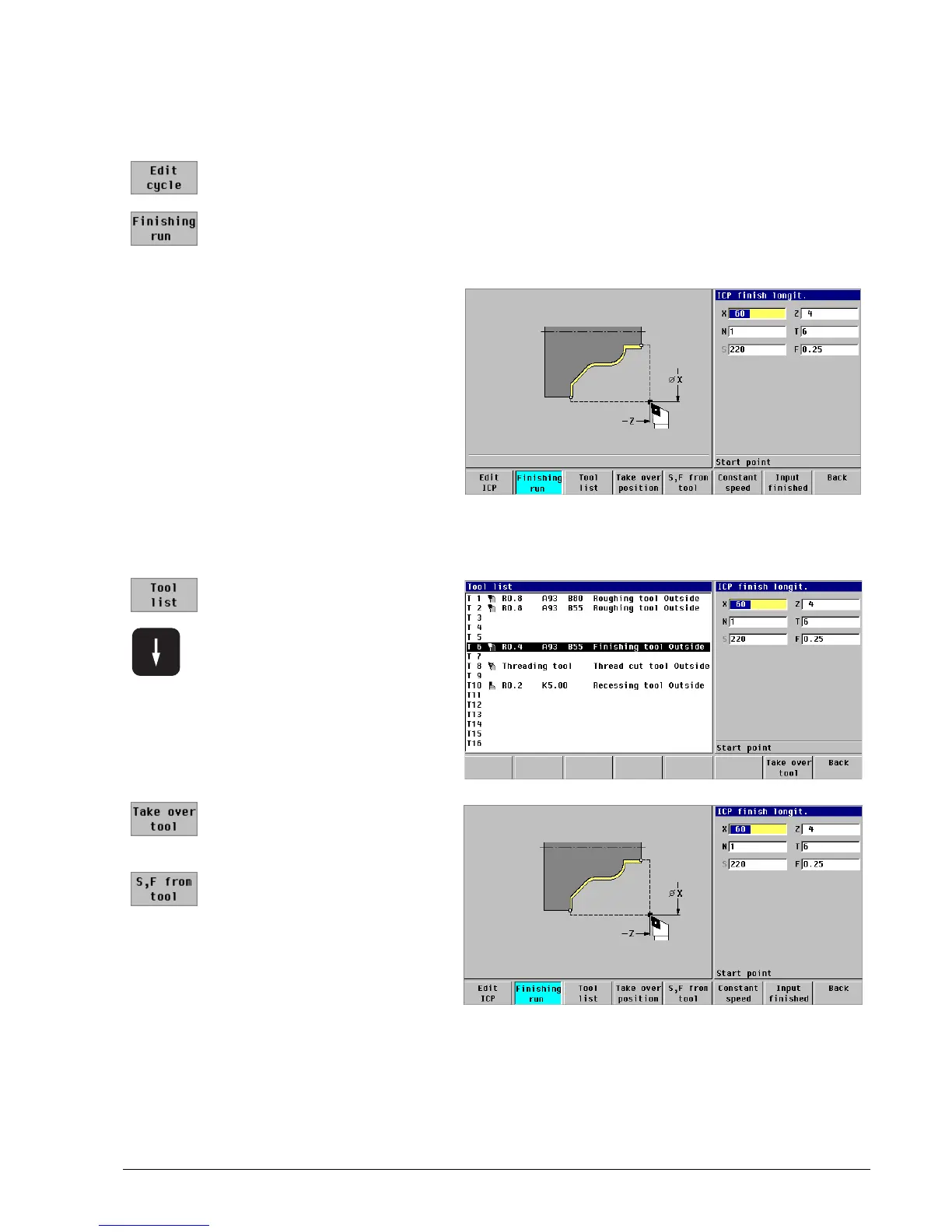

Adapt the cycle
 Press the Edit cycle soft key
 Switch to “Finishing cycle”:
Press the Finishing run
soft key
Cycle parameters:
 Starting point X: 60 mm
 Starting point Z: 4 mm
 ICP contour number N: 1
 Tool number T: 6
 Cutting speed S: 220 m/min
 Feed rate per revolution F:
0.25 mm/rev
Assume the tool number and technology
data from the tool file (see following
steps).
 Call the tool list:
Press the Tool list soft key
 Position the cursor on T6:
Press the arrow key
repeatedly
 Assume the tool:
Press the Take over tool
soft key
 Assume the cutting speed
and feed rate:
Press the S, F from tool
soft key
