HEIDENHAIN MANUALplus 4110 Tool Management 4.6
Create tool T2 by copying
Adapt tool data
Overview of tool data T2

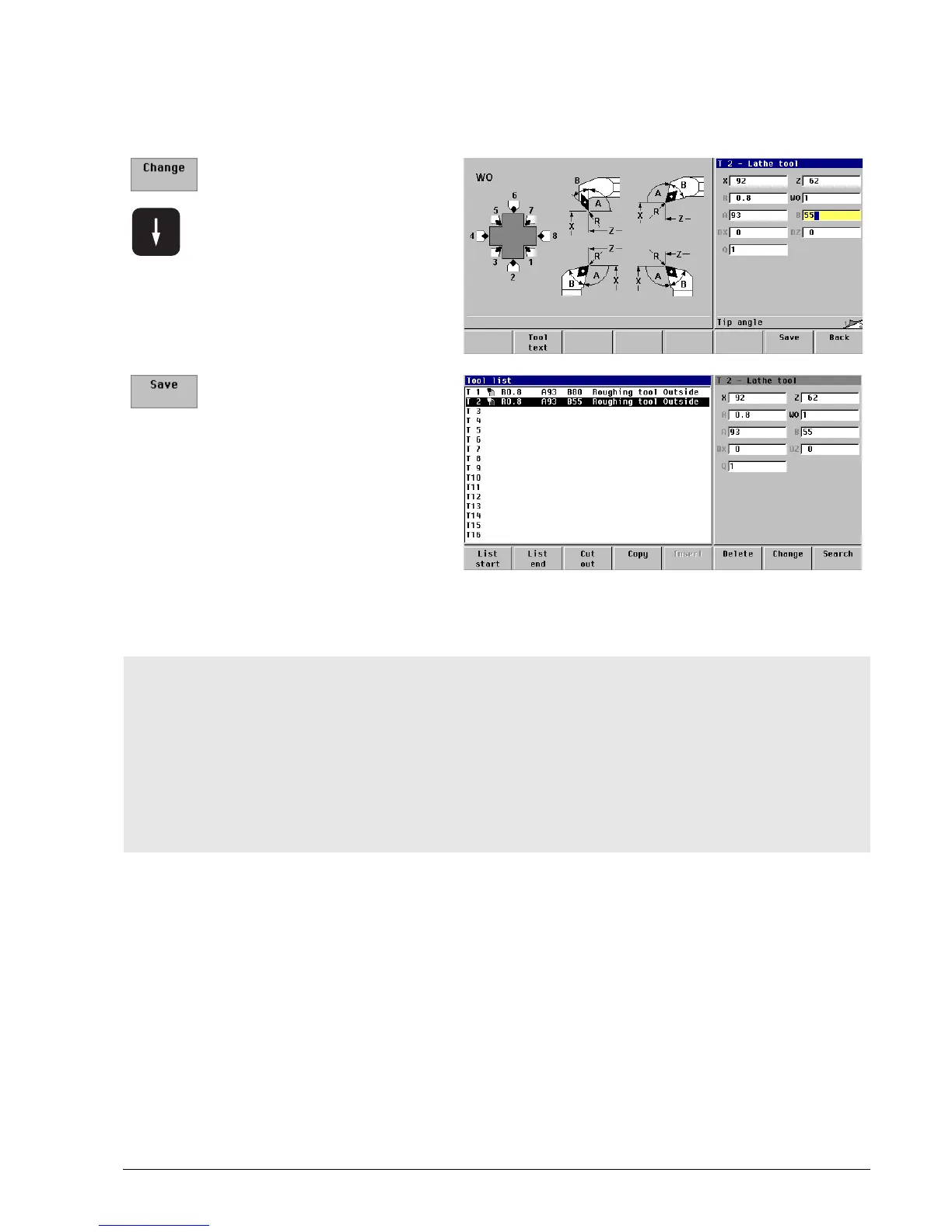

 Press the Change soft key
 Place the cursor on the input
field Tip angle B:
Press the arrow key
repeatedly
 Tip angle B: 55°
 Save the tool data T2:
Press the Save soft key
 Setup dimension X in X: 92 mm
 Setup dimension Z in Z: 62 mm
 Cutting radius R: 0.8 mm
 Tool orientation WO: 1
 Tool angle A: 93°
 Tip angle B: 55°
 Wear compensation DX in X: 0 mm
 Wear compensation DZ in Z: 0 mm
 Tool text Q: 1
 Machining direction MD M3=3, M4=4: 3
 Cutting speed TS: 200 m/min
 Feed rate TF: 0.4 mm/rev
 Lifetime PT/Quantity PZ: –
