HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.27

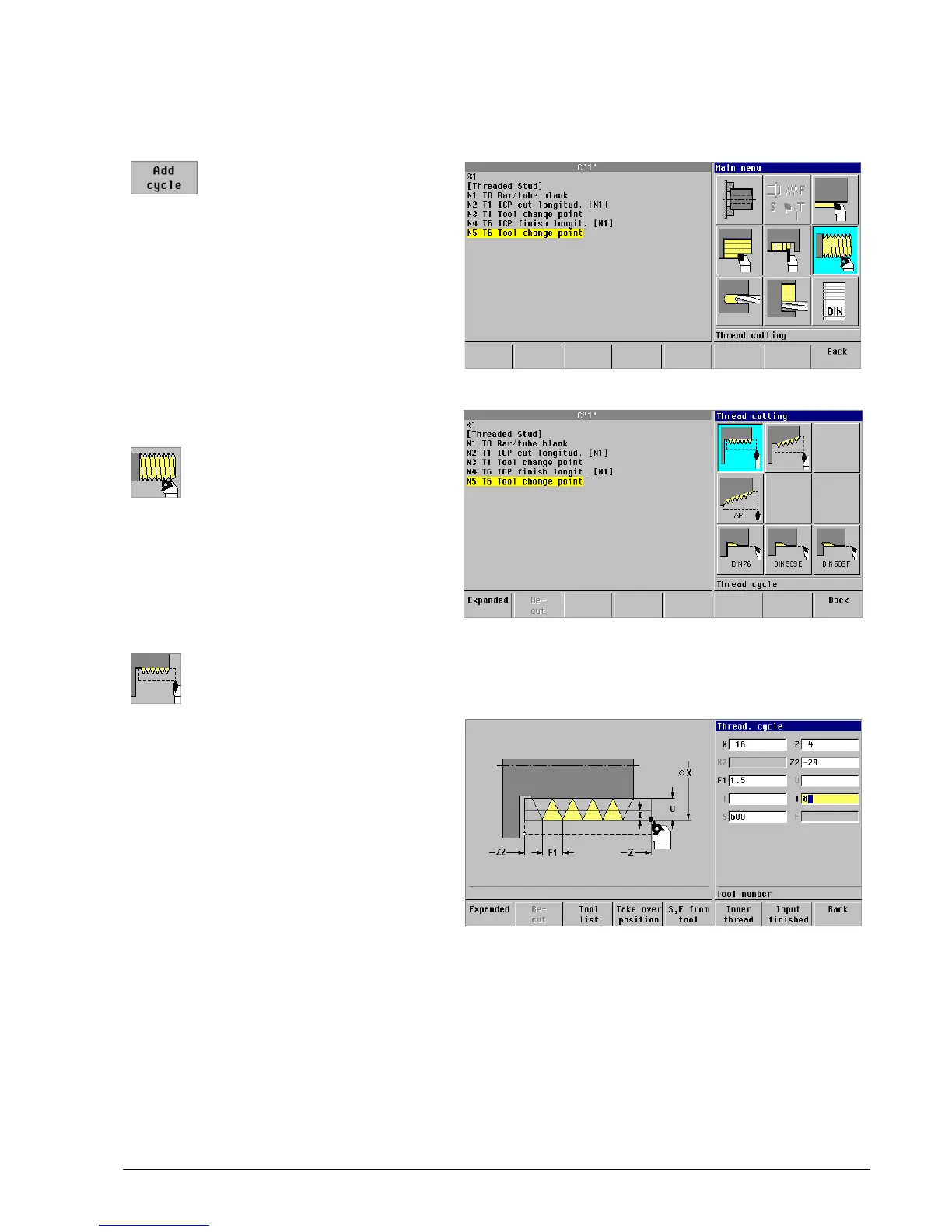

Create the “Threaded stud” cycle program
Program the “Threading cycle”
 Press the Add cycle soft
key
Select the Threading cycle:
 Press the Thread cutting
menu key
 Press the Threading cycle
menu key
Enter the cycle parameters:
 Starting point X: 16 mm
 Starting point Z: 4mm
 End point of thread Z2: –29 mm
 Thread pitch F1: 1.5 mm
 Thread depth U: No entry
 First cutting depth I: No entry
 Tool number T: 8
 Shaft speed S: 600 m/min
Assume the tool number and technology
data from the tool file (see following
steps).
