HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.9

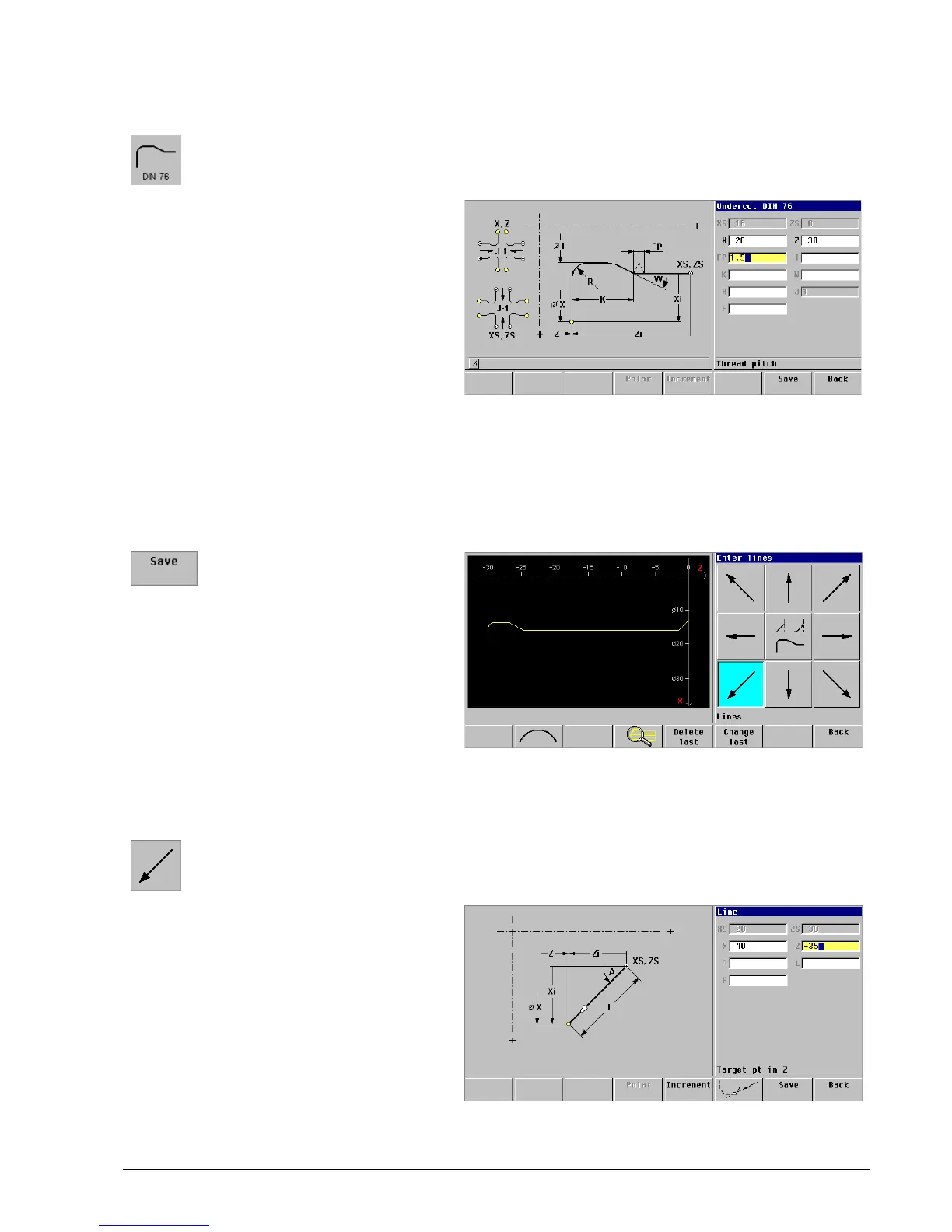

Create the ICP contour “Threaded stud”
Contour element 3 (oblique cut)
 Press the Thread undercut
DIN 76 menu key
Describe the contour element:
 Target point X in X: 20 mm
 Target point Z in Z: –30 mm
 Thread pitch FP: 1.5 mm
 Undercut diameter I: No entry
 K undercut length: No entry
 W undercut angle: No entry
 R undercut radius: No entry
 Element position J: No entry
 Special feed rate F: No entry
The MANUALplus 4110 determines the
undercut parameters from the thread
pitch.
 Conclude entry:
Press the Save soft key
The part of the contour you have entered
up to now is clearly defined, and is
displayed.
 Press the Line menu key
Describe the contour element:
 Target point X in X: 40 mm
 Target point Z in Z: –35 mm
 Angle A to the Z axis: No entry
 Length of line L: No entry
 Special feed rate F: No entry
