HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.16
Create the “Threaded stud” cycle program
Conclude and test the “ICP cutting longitudinal” cycle
Warnings
The MANUALplus 4110 tests whether the cycle can be performed without error. Because of the
cutting geometry, “residual material” remains in this example. This leads to a warning (see the
soft key Warning no.: 1).
Check if any changes to the program are necessary. In this example the residual material is
carried off in the finishing cycle. No changes to the program are necessary.

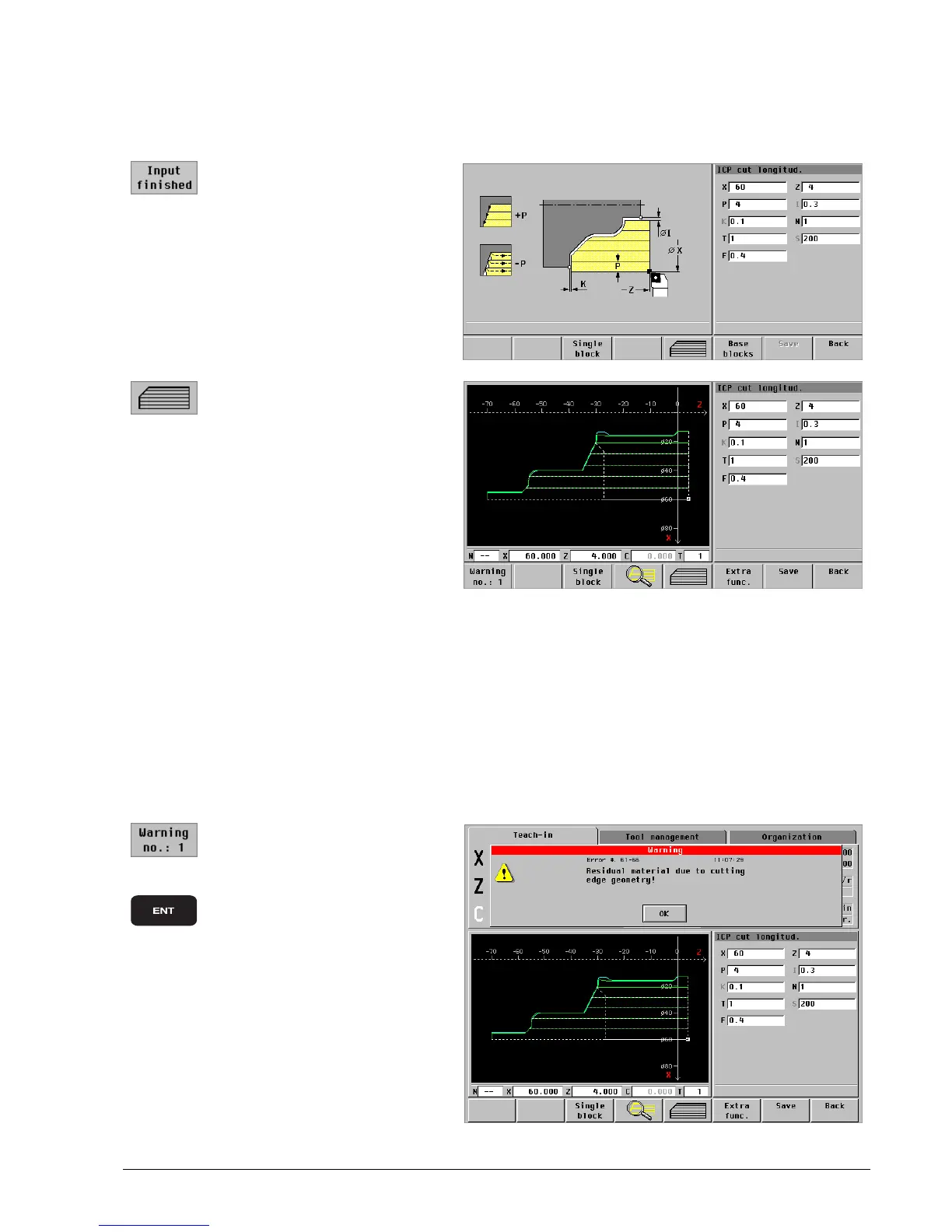

 Conclude input of the
roughing cycle.
Press the Input finished
soft key
 Test the cycle:
Press the Graphics soft key
 Call the warning:
Press the Warning no.: 1
soft key
 Confirm the warning:
Press the Enter key
