HEIDENHAIN MANUALplus 4110 Tool Measurement 5.7

Determine the setting dimensions for T2

Setting dimensions for T2

You determine the precise setting dimensions as follows:

 Setting dimension X: Touch measuring diameter

 Setting dimension Z: Touch the end face (workpiece datum)

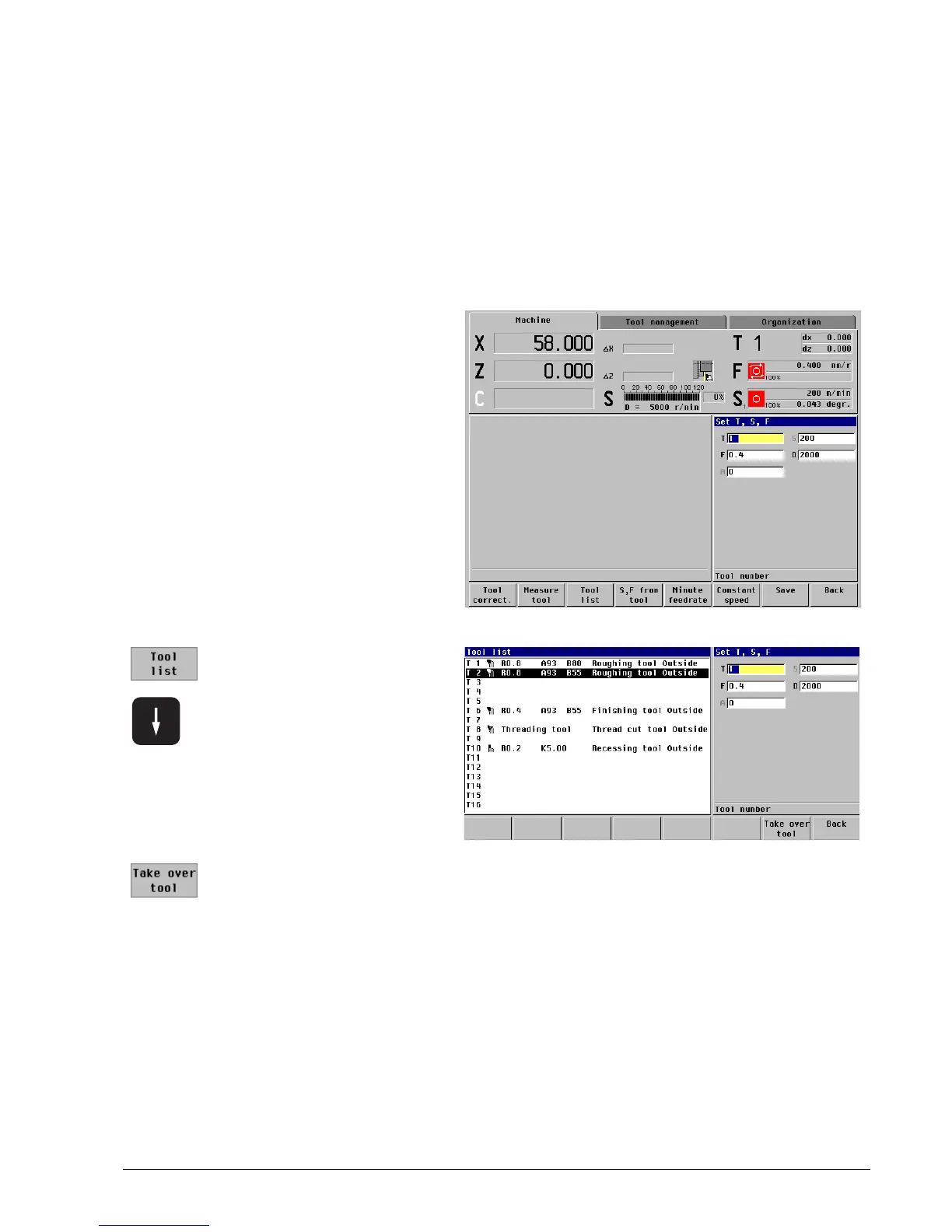

Activate tool T2

Situation after measurement of tool T1

 Open the tool file:

Press the Tool list soft key

 Place the cursor on position

T2:

Press the arrow key

 Press the Take over tool

soft key
