HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.14

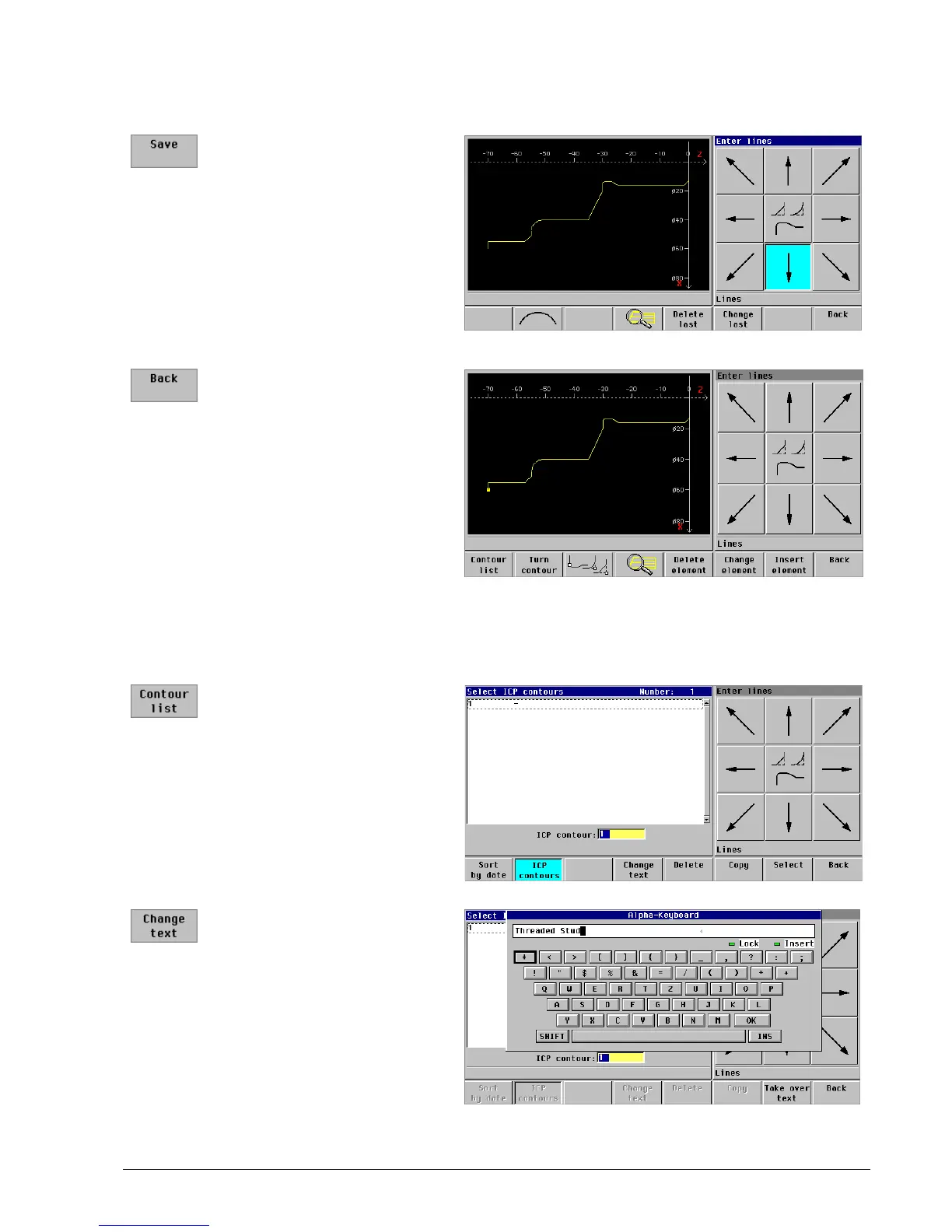

Create the ICP contour “Threaded stud”

Enter the contour name

 Conclude entry:

Press the Save soft key

The “threaded stud” contour is

completely described.

 Exit the input mode:

Press the Back soft key

 Press the Contour list soft

key

 Press the Change text soft

key

 Enter the contour name

“Threaded stud”
