HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.1
Create the “Threaded stud” cycle program
“Threaded stud” example program

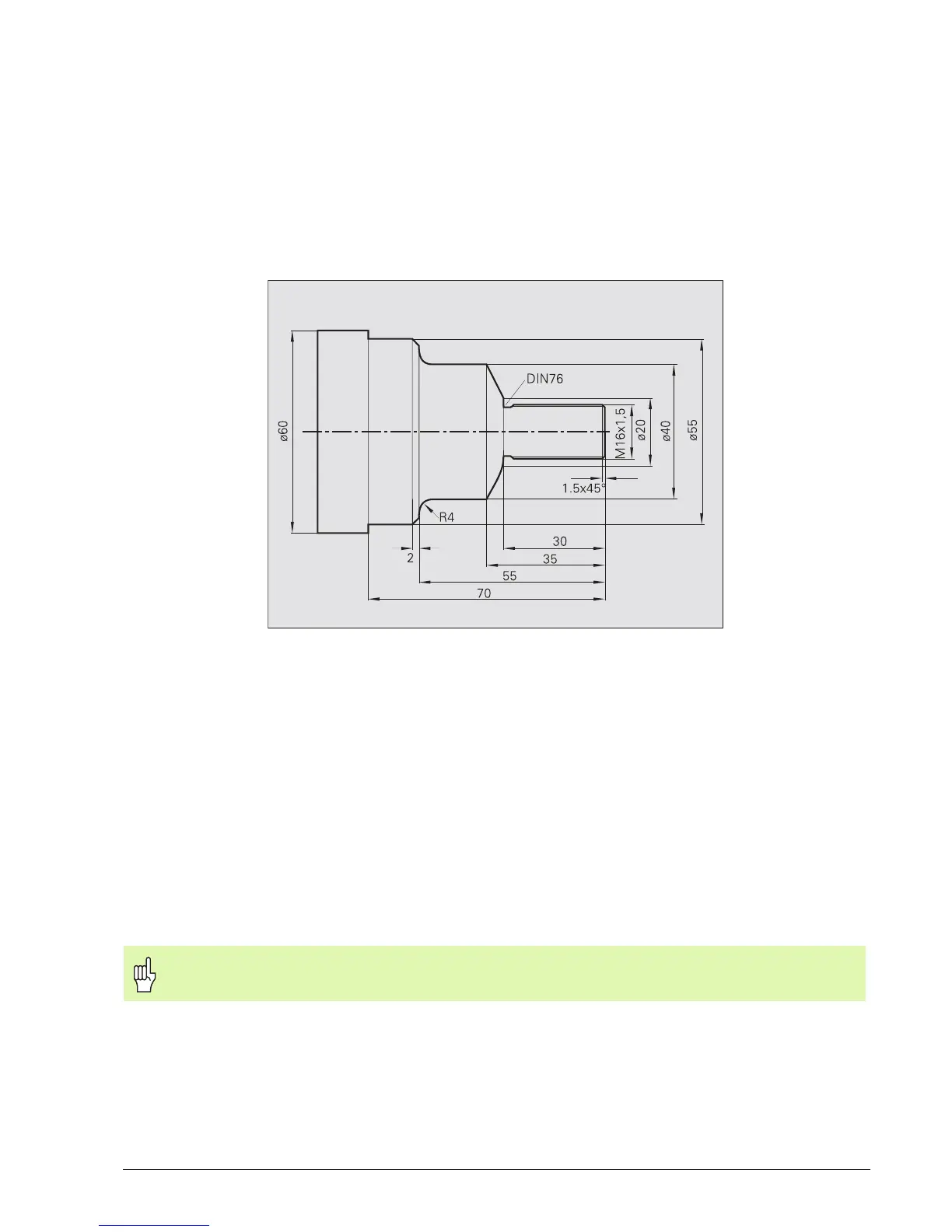

This example illustrates a longitudinal machining procedure using the ICP programming feature.
The individual working steps for machining the ICP contour and integrating the contour into ICP
cycles are based on the workpiece drawing.
Prerequisites:
The workpiece blank is clamped
The roughing tool T1 is clamped
The tools to be used is defined and measured
The workpiece datum is defined
The tool change point is defined
The protection is defined and activated
The maximum shaft speed is defined
All values are based on aluminum workpieces.
