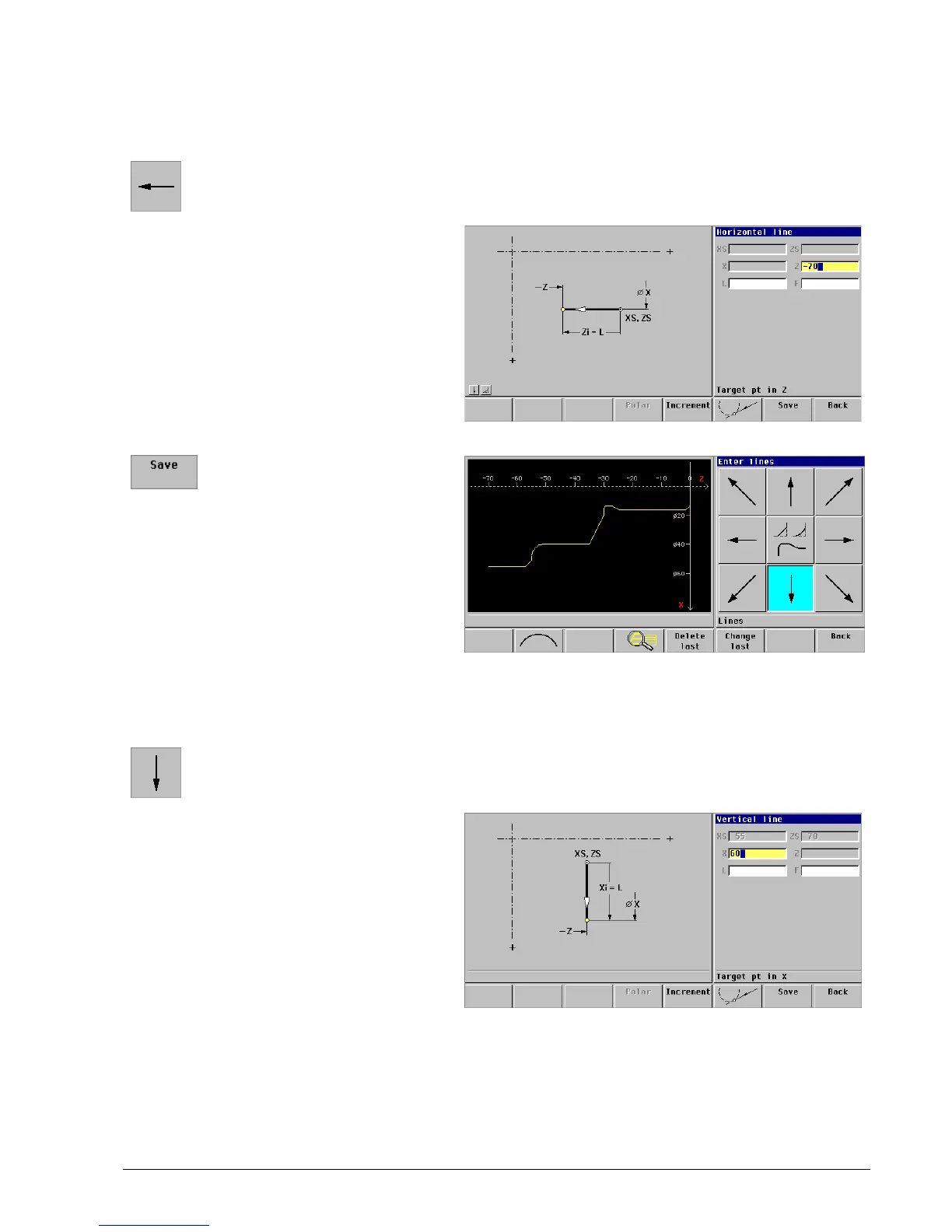

HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.13

Create the ICP contour “Threaded stud”

Contour element 8 (horizontal line):

Contour element 9 (vertical line)

 Press the Line menu key

Describe the contour element:

 Target point Z in Z: –70 mm

 Length of line L: No entry

 Special feed rate F: No entry

 Conclude entry:

Press the Save soft key

 Press the Line menu key

Describe the contour element:

 Target point X in X: 60 mm

 Length of line L: No entry

 Special feed rate F: No entry
