HEIDENHAIN MANUALplus 4110 Tool Management 4.4
Creating tool T1
Enter the tool data (part 2)

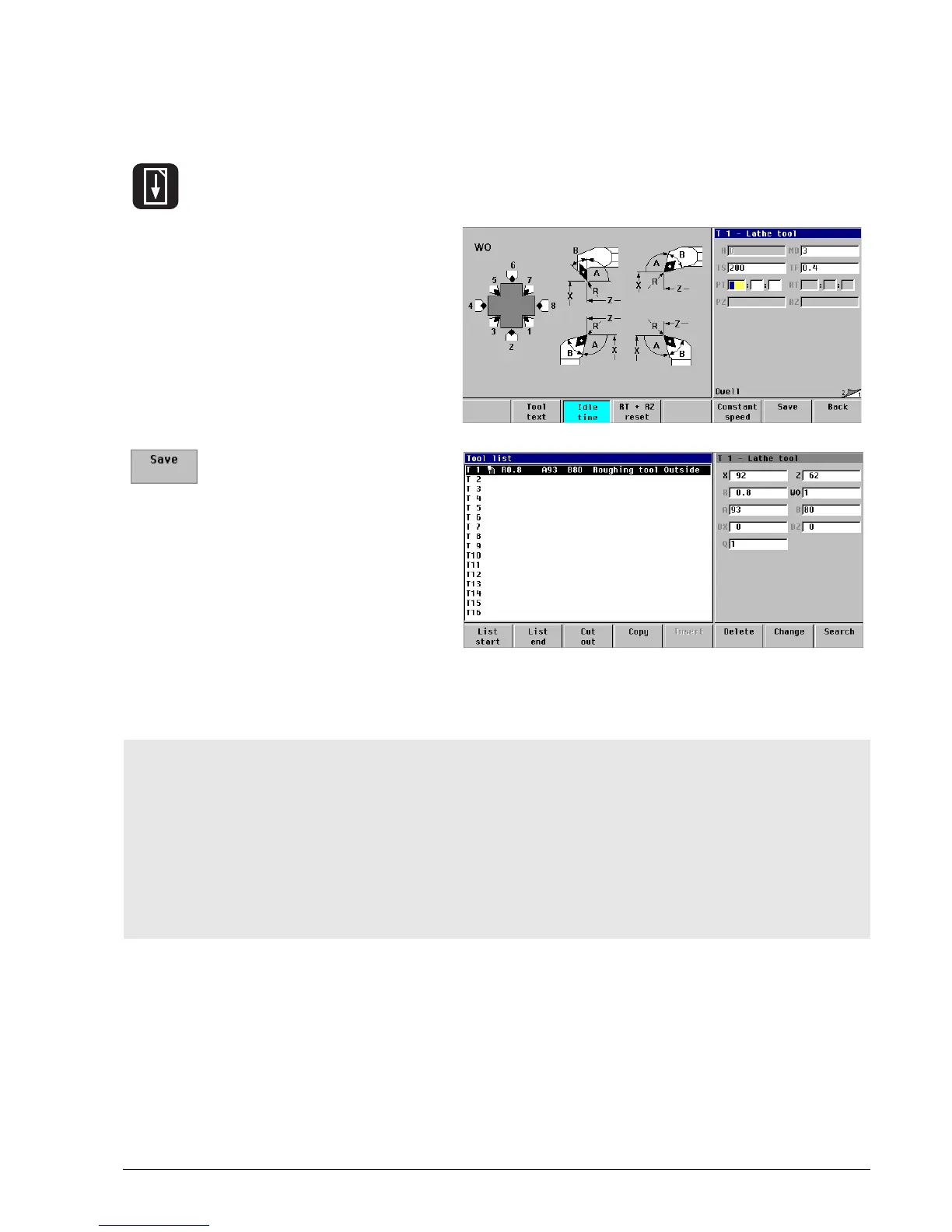

Overview of tool data T1
 Press the Page forward key
 Machining direction MD M3=3, M4=4:3
(3=Machining direction to the right)
 Cutting speed TS:
200 m/min
 Feed rate TF: 0.4 mm/rev
 Quantity PZ: No entry
 Save the tool data:
Press the Save soft key
 Setup dimension X in X: 92 mm
 Setup dimension Z in Z: 62 mm
 Cutting radius R: 0.8 mm
 Tool orientation WO: 1
 Tool angle A: 93°
 Tip angle B: 80°
 Wear compensation DX in X: 0 mm
 Wear compensation DZ in Z: 0 mm
 Tool text Q: 1
 Machining direction MD M3=3, M4=4: 3
 Cutting speed TS: 200 m/min
 Feed rate TF: 0.4 mm/rev
 Lifetime PT/Quantity PZ: –
