220 V
ehicle care
4.

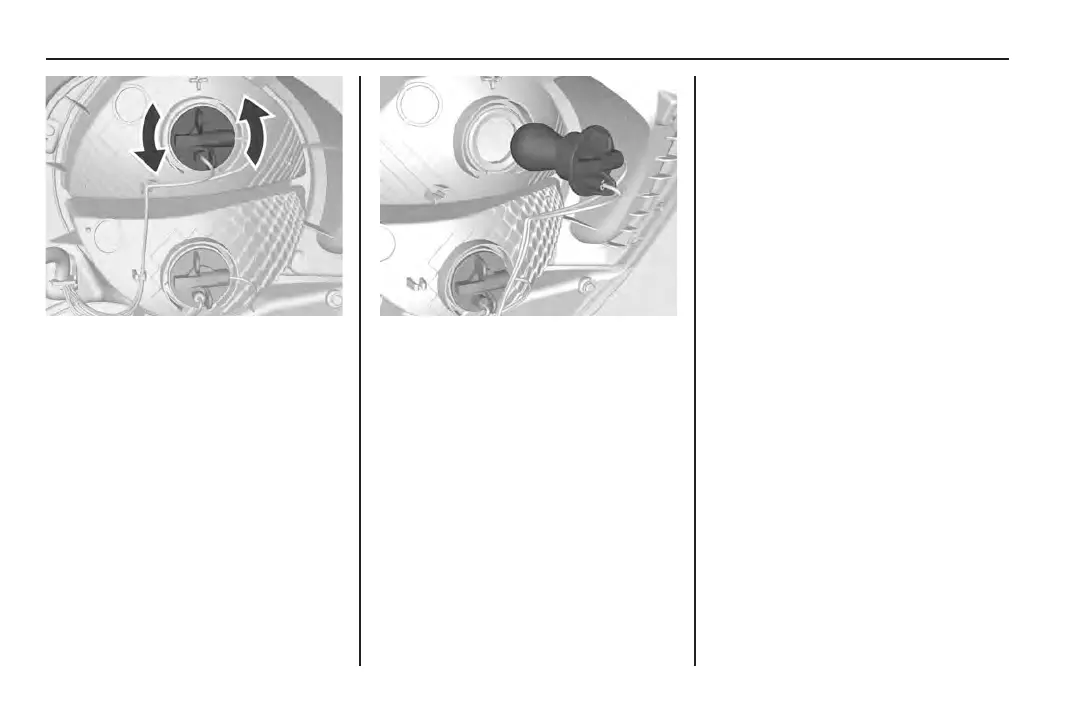

Rotate the bulb holder
anticlockwise.
5.
Remove the bulb holder
.
Note
Avoid damage to the exposed
bulbs.
6.
Disengage the tail lamp bulb
electrical harness from the
retainer clips on the tail lamp
assembly
.
7.
Renew the bulb.
8.
Insert the bulb holder into the
tail lamp assembly and screw
into place.
9.
T
ighten the screws.
10.
Close the covers and engage.
1
1. Check lamp operation.
221
