Huawei FusionServer G5500 User Manual

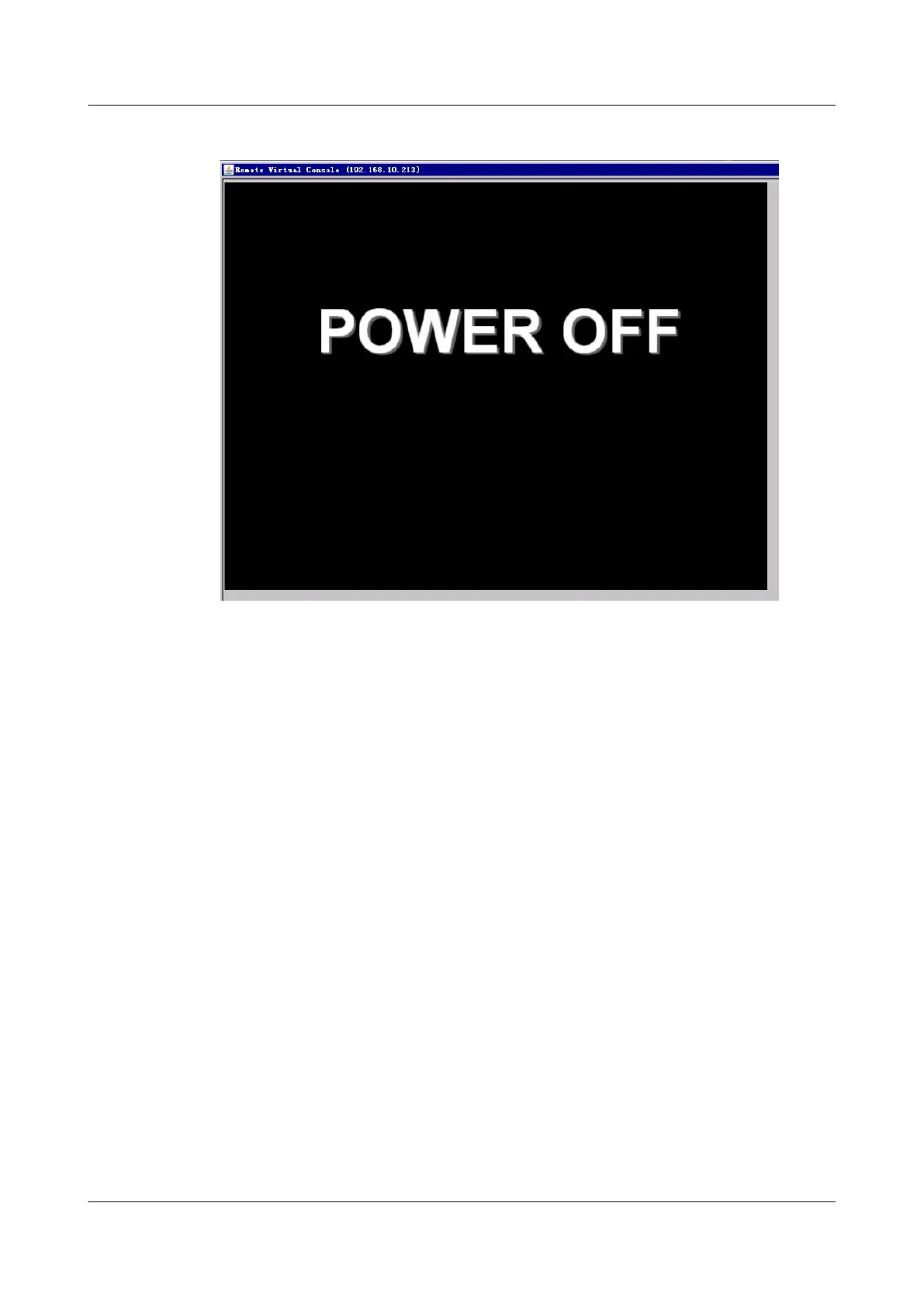

Figure 5-34 Real-time operation console
----End
5.5.4 Logging In to the iBMC CLI
You can log in to the iBMC CLI to manage and monitor the device. There are different ways
to access the CLI of the management software. Choose a way based on site requirements.
To log in to the iBMC CLI over the network port, ensure that:
l The network port on the client is properly connected to the management network port on
the server by using a network cable.
l The IP addresses of the client network port and the management network port are on the
same network segment.
Prepare the following data before logging in to the iBMC CLI:
l IP address of the iBMC management network port
l User name and password of the iBMC management network port
The default iBMC user name is Administrator, and the default password is
Admin@9000.
Procedure
Logging In over SSH
The SSH protocol is used to provide secure remote login and other network services on an
insecure network.
FusionServer G5500 Server
User Guide
5 Configuring the G5500
Issue 02 (2017-12-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
111

Huawei FusionServer G5500 Specifications

General

Chassis type	Rack (4U)
Device class	-
Product color	Black
Number of fans	6 fan(s)
Redundant fans support	Yes
AC input voltage	110-240 V
80 PLUS certification	80 PLUS Platinum
Number of power supply units	4
Power supply unit (PSU) capacity	2200 W
Storage drive capacity	- GB
Storage drives installed	No
Maximum supported storage capacity	- TB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	790 mm
Width	447 mm
Height	175 mm
