Huawei FusionServer G5500 User Manual

8 Log in to the iBMC WebUI by using the manually specified IP address to verify the
setting.
----End
5.4.3 Logging In to the Remote Virtual Console
Log in to the remote virtual console of the iBMC through the iBMC WebUI.
Prepare the following data before logging in to the remote virtual console:
l IP address for the G5500 iBMC management network port
l User name and password for logging in to iBMC.
The default user name is root, and the default password is Huawei12#$.
Procedure
Step 1 Log in to the iBMC WebUI.
For details, see 5.4.1 Logging In to the iBMC WebUI.
Step 2 Choose Remote.
The Remote page is displayed, as shown in Figure 5-16.

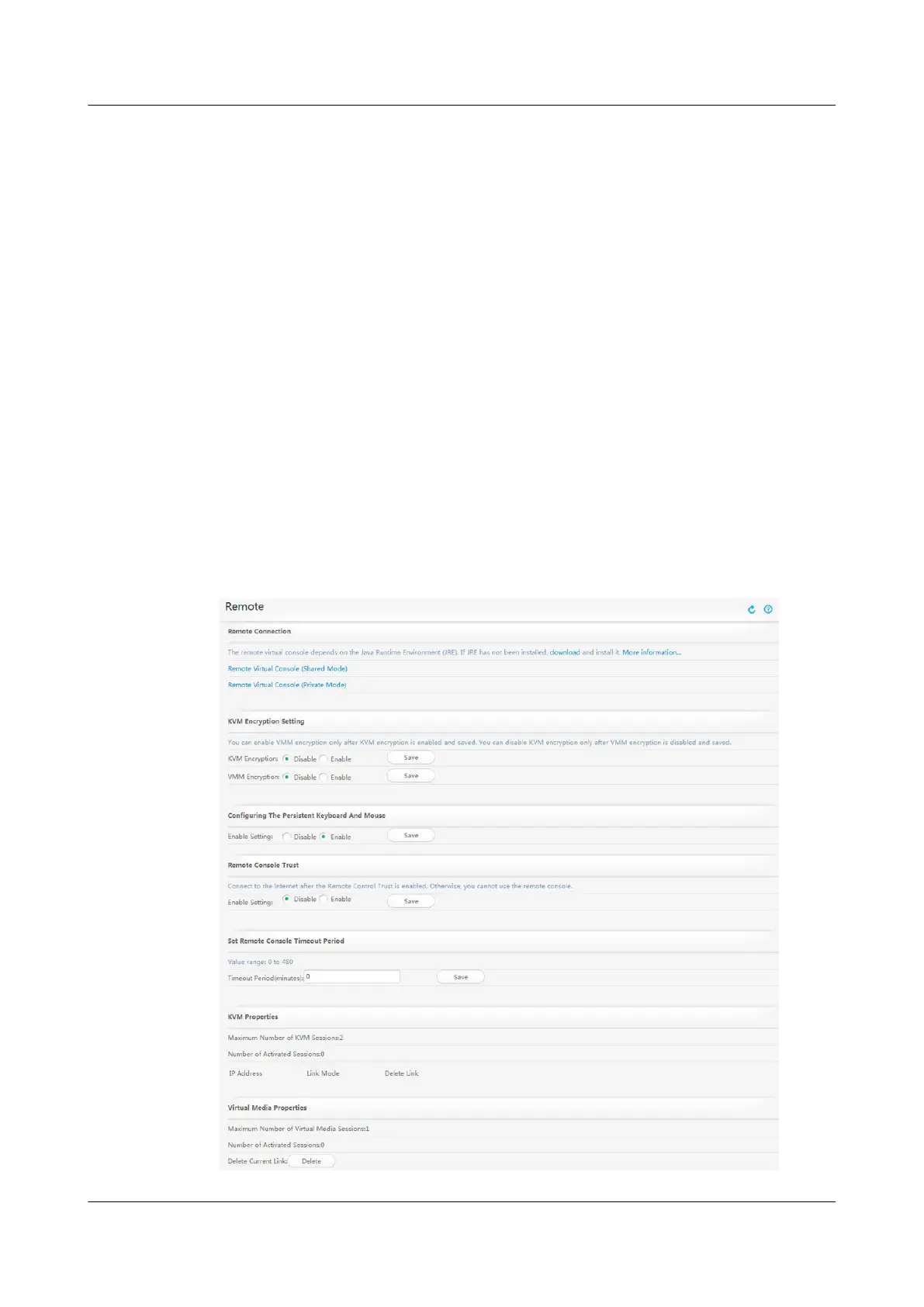

Figure 5-16 Remote page
FusionServer G5500 Server
User Guide
5 Configuring the G5500
Issue 02 (2017-12-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
91

Huawei FusionServer G5500 Specifications

General

Chassis type	Rack (4U)
Device class	-
Product color	Black
Number of fans	6 fan(s)
Redundant fans support	Yes
AC input voltage	110-240 V
80 PLUS certification	80 PLUS Platinum
Number of power supply units	4
Power supply unit (PSU) capacity	2200 W
Storage drive capacity	- GB
Storage drives installed	No
Maximum supported storage capacity	- TB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	790 mm
Width	447 mm
Height	175 mm
