Huawei FusionServer G5500 User Manual

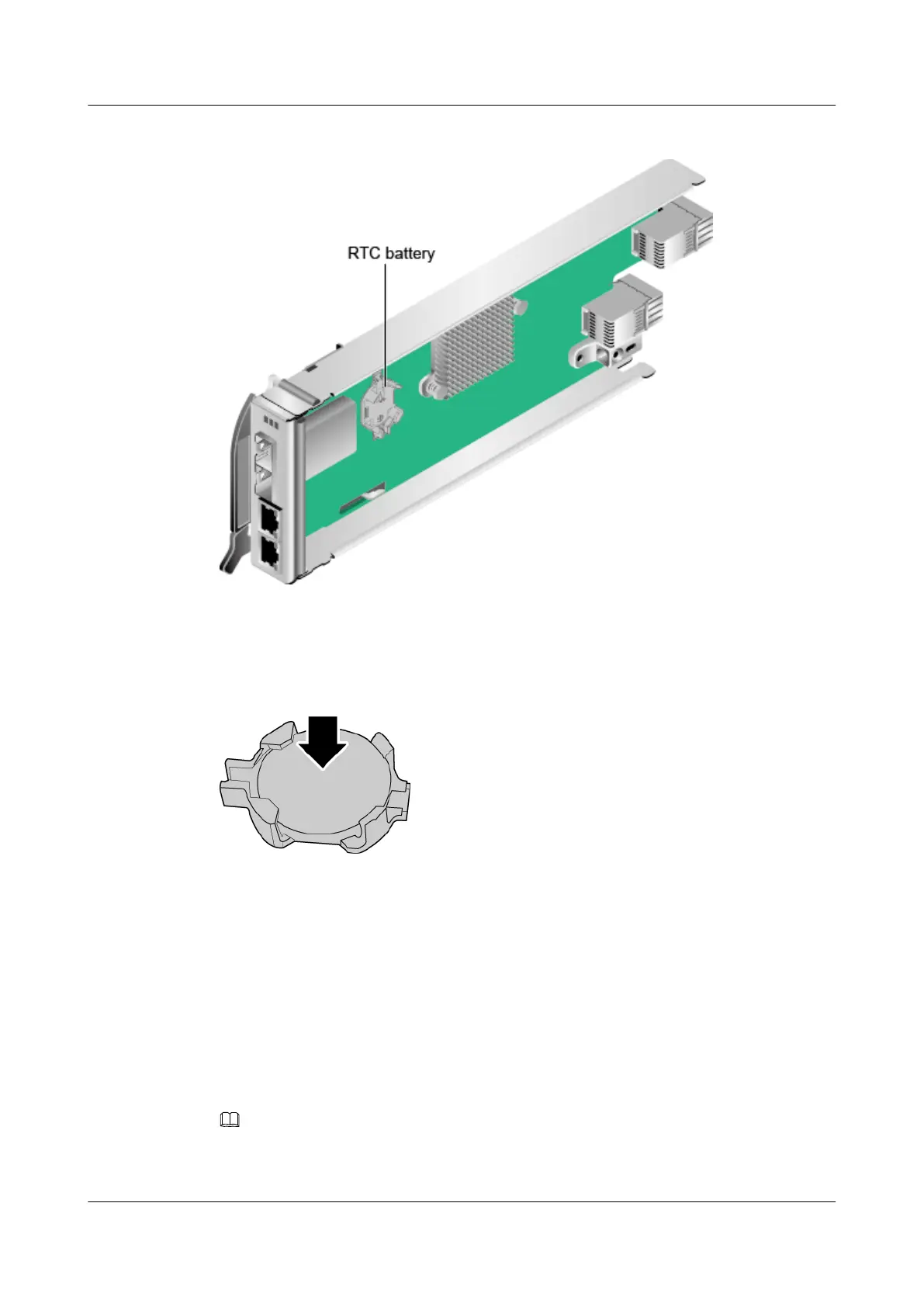

Figure 6-53 Location of the RTC battery
Step 5 Hold the RTC battery with the side marked with texts facing upwards, insert the left end of
the RTC battery into the slot, and gently press down the RTC battery until it is properly
installed in the slot. See Figure 6-54.
Figure 6-54 Installing the RTC battery
----End
6.8.2 Installing a Management Module
Step 1 Determine the location for installing the management module in the G5500, as shown in
Figure 6-55.
Step 2 Take a spare management module out of its ESD bag.
Step 3 Insert the management module into the slot. See (1) in Figure 6-55.
NOTE
If only one management module is configured for a full-length compute node, install the management module
in the slot MM1, as shown in Figure 6-55.
FusionServer G5500 Server
User Guide
6 Optional Part Installation
Issue 02 (2017-12-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
169

Huawei FusionServer G5500 Specifications

General

Chassis type	Rack (4U)
Device class	-
Product color	Black
Number of fans	6 fan(s)
Redundant fans support	Yes
AC input voltage	110-240 V
80 PLUS certification	80 PLUS Platinum
Number of power supply units	4
Power supply unit (PSU) capacity	2200 W
Storage drive capacity	- GB
Storage drives installed	No
Maximum supported storage capacity	- TB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	790 mm
Width	447 mm
Height	175 mm
