Huawei FusionServer G5500 User Manual

Installing an Air Duct
Step 1 Power off the G530 V2. For details, see 3.1 Powering Off the Compute Node.
Step 2 Remove the G530 V2. For details, see 3.5 Removing a G530 V2.
Step 3 Place the G530 V2 on the ESD floor.
Step 4 Remove the cover. For details, see 3.7 Cover.
Step 5 Installing a DIMM. For details, see Installing a DIMM.
Step 6 Vertically place the air duct downwards. See Figure 6-34.

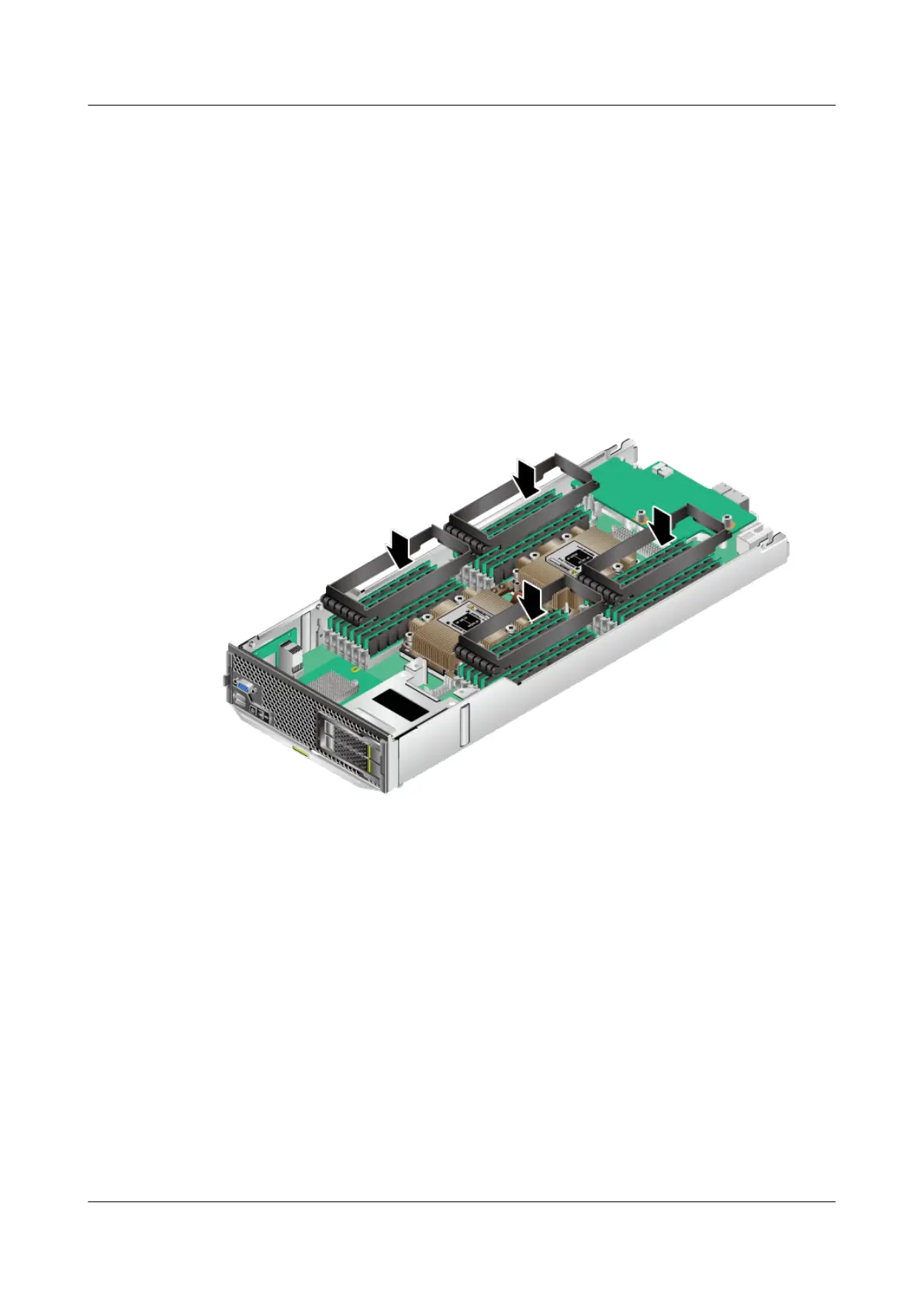

Figure 6-34 Installing an Air Duct
----End
6.4.4 RAID Controller Card
Installing the RAID Controller Card
Step 1 Power off the G530 V2. For details, see 3.1 Powering Off the Compute Node.
Step 2 Remove the G530 V2. For details, see 3.5 Removing a G530 V2.
Step 3 Place the G530 V2 on the ESD floor.
Step 4 Remove the cover. For details, see Removing the Cover of a G530 V2.
Step 5 Determine the location for installing the RAID controller card. See Figure 6-35.
FusionServer G5500 Server
User Guide
6 Optional Part Installation
Issue 02 (2017-12-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
155

Huawei FusionServer G5500 Specifications

General

Chassis type	Rack (4U)
Device class	-
Product color	Black
Number of fans	6 fan(s)
Redundant fans support	Yes
AC input voltage	110-240 V
80 PLUS certification	80 PLUS Platinum
Number of power supply units	4
Power supply unit (PSU) capacity	2200 W
Storage drive capacity	- GB
Storage drives installed	No
Maximum supported storage capacity	- TB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	790 mm
Width	447 mm
Height	175 mm
