Huawei RH2288H V3 User Manual

7.17 Removing an Internal Cable
Remove an internal cable before replacing it with a new one.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Determine the cabinet number and chassis number of the server, and label its
panel to prevent misoperations.
Step 3 Power
o the RH2288H V3. For details, see 4.2 Powering O the Server.
Step 4 Remove all external cables such as power and network cables.
Step 5 Remove the RH2288H V3 and put it on an ESD desktop. For details, see 3.6
Removing the Server.
Step 6 Remove the chassis cover. For details, see 7.11 Removing the Chassis Cover.
Step 7 Determine the cable to be removed. For details, see 2.7 Internal Cabling.
Step 8 Remove the air duct. For details, see 7.13 Removing the Air Duct.
Step 9 Vertically lift a fan module until it is disconnected from the mainboard. See Figure
7-29. Use the same method to remove other fan modules.

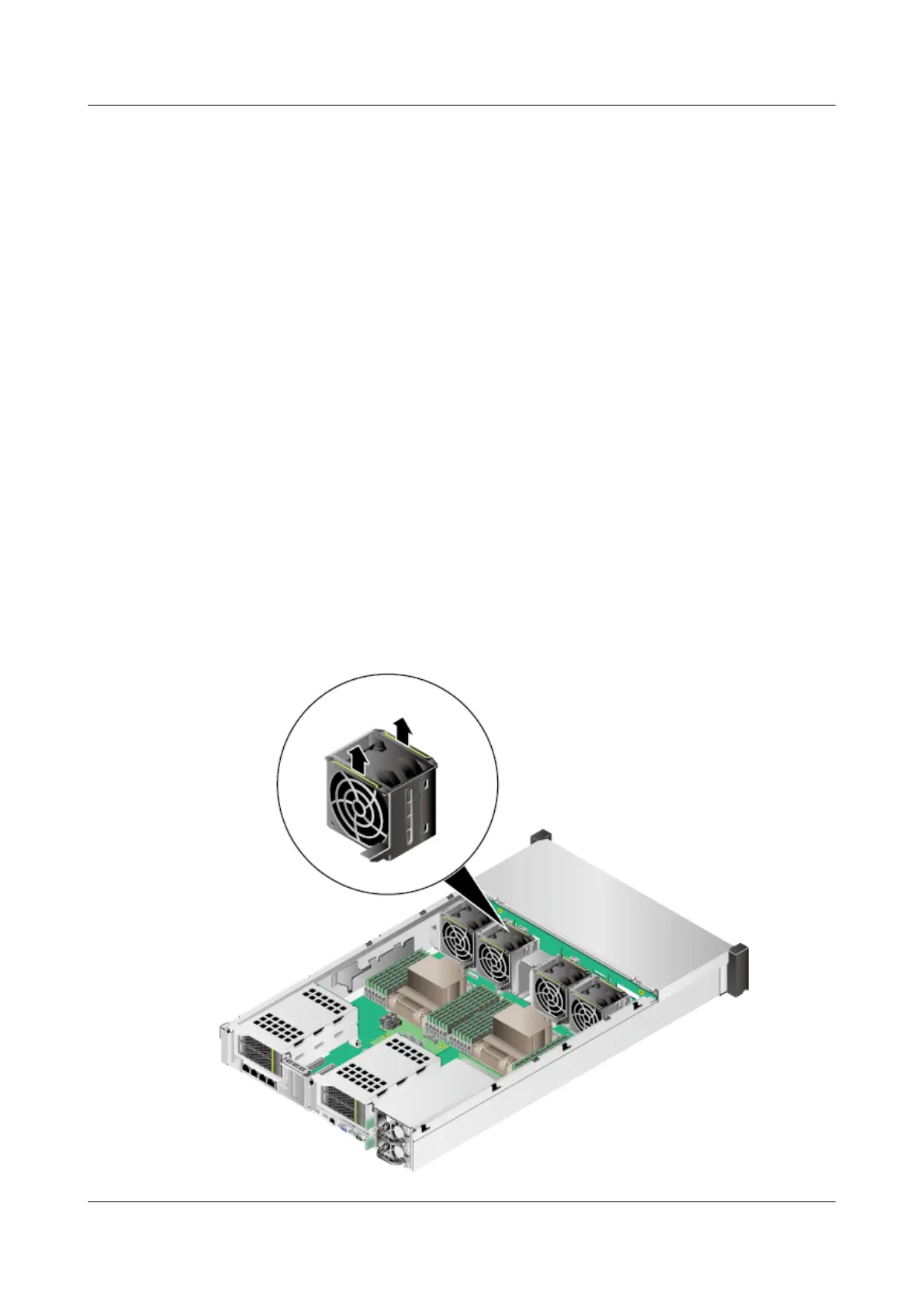

Figure 7-29 Removing a fan module
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 174

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
