Step 11 Place the removed TPM in an ESD bag.
----End
7.24 Installing a TPM
Install a TPM to replace the original one.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the TPM to be replaced. For details, see 7.23 Removing a TPM.
Step 3 Take a spare TPM out of its ESD bag.
Step 4 Insert the TPM vertically downwards into the connector on the mainboard. See (1)
in Figure 7-46.

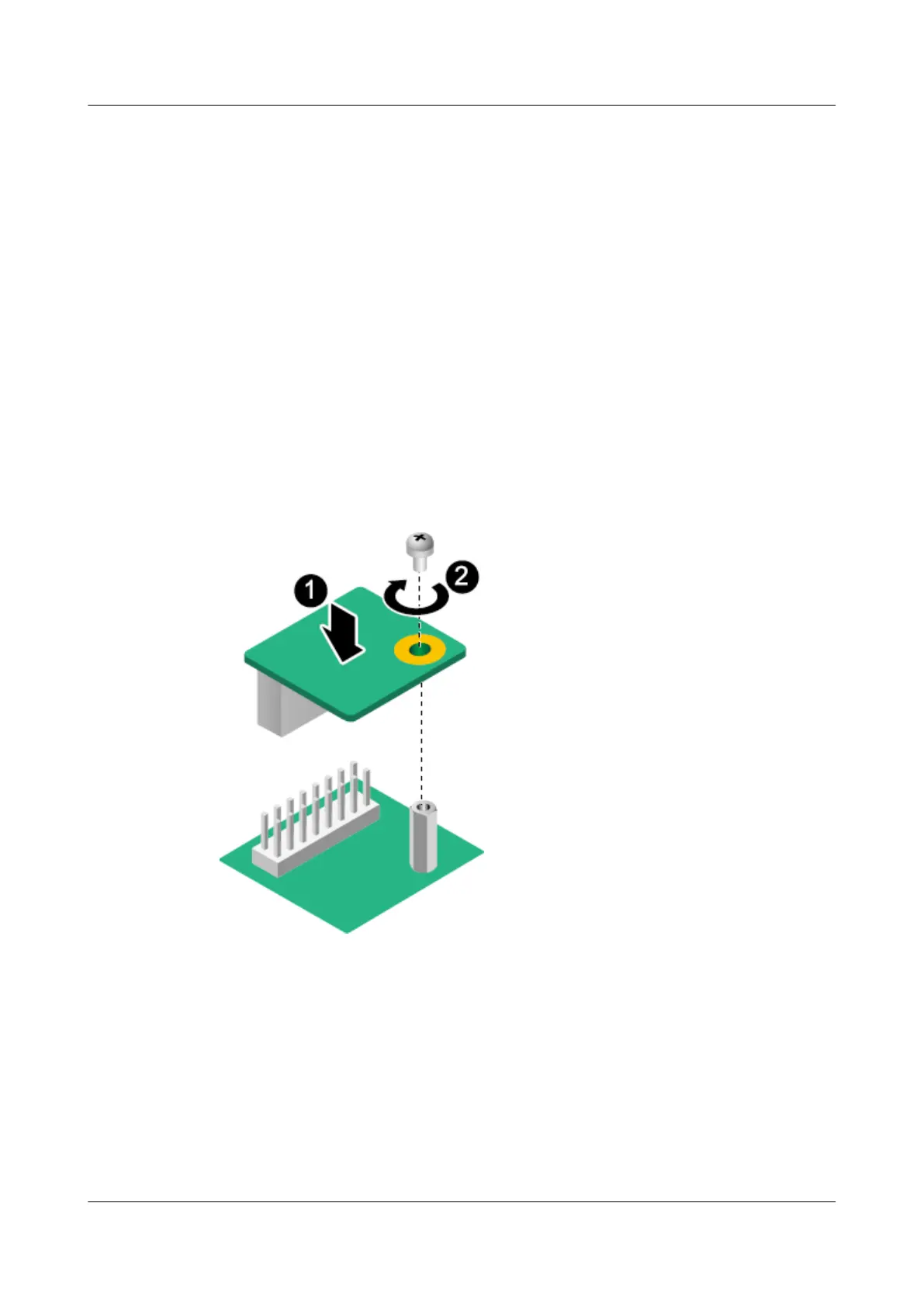

Figure 7-46 Installing the TPM
Step 5 Tighten the screw on the TPM using a Phillips screwdriver. See (2) in Figure 7-46.
Step 6 Install the riser card above the TPM. For details, see 7.20 Installing a Riser Card.
Step 7 Install the chassis cover. For details, see 7.12 Installing the Chassis Cover.
Step 8 Install the RH2288H V3. For details, see 3.4 Installing the Server.
Step 9 Connect all external cables such as power and network cables. For details, see 3.5
Connecting External Cables.
Step 10 Power on the RH2288H V3. For details, see 4.1 Powering On the Server.
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 189

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
