Huawei RH2288H V3 User Manual

Step 6 Remove the chassis cover. For details, see 7.11 Removing the Chassis Cover.
Step 7 Pull up the right end of the system battery and remove it from the slot. See
Figure 7-61.

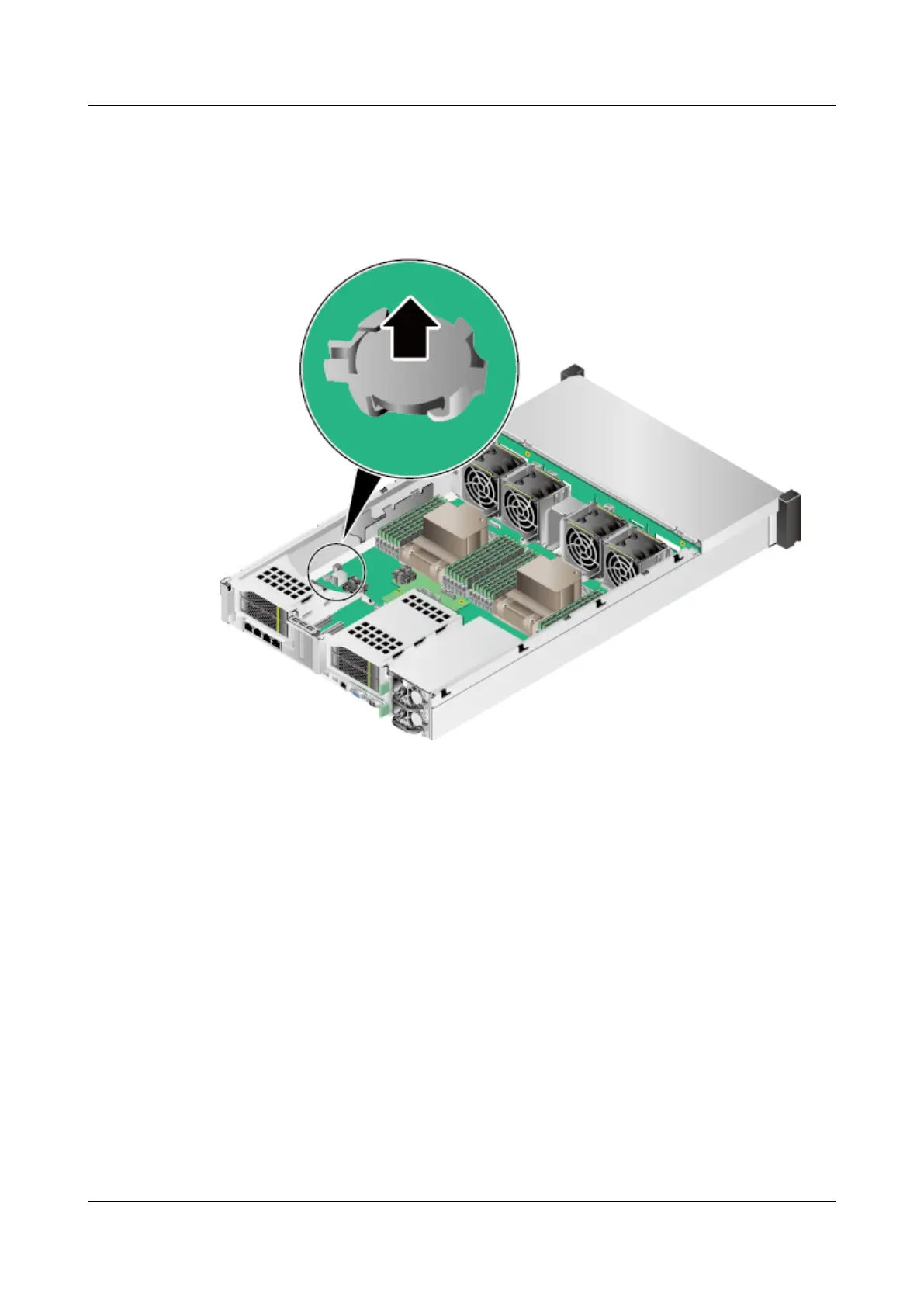

Figure 7-61 Removing the system battery
Step 8 Place the removed system battery in an ESD bag.
----End
7.30 Installing the System Battery
Install a system battery to replace the original one.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the system battery to be replaced. For details, see 7.29 Removing the
System Battery.
Step 3 Take the spare system battery out of its ESD bag.
Step 4 Hold the system battery with the side marked with text facing upwards, insert the
left end of the system battery into the slot, and gently press down the system
battery until it is properly installed in the slot. See Figure 7-62.
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 202

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
