Huawei RH2288H V3 User Manual

Step 10 Press and hold down the latches on both sides of a fan module bracket, and lift
the fan support. Use the same method to lift the other fan module bracket. See
Figure 7-30.

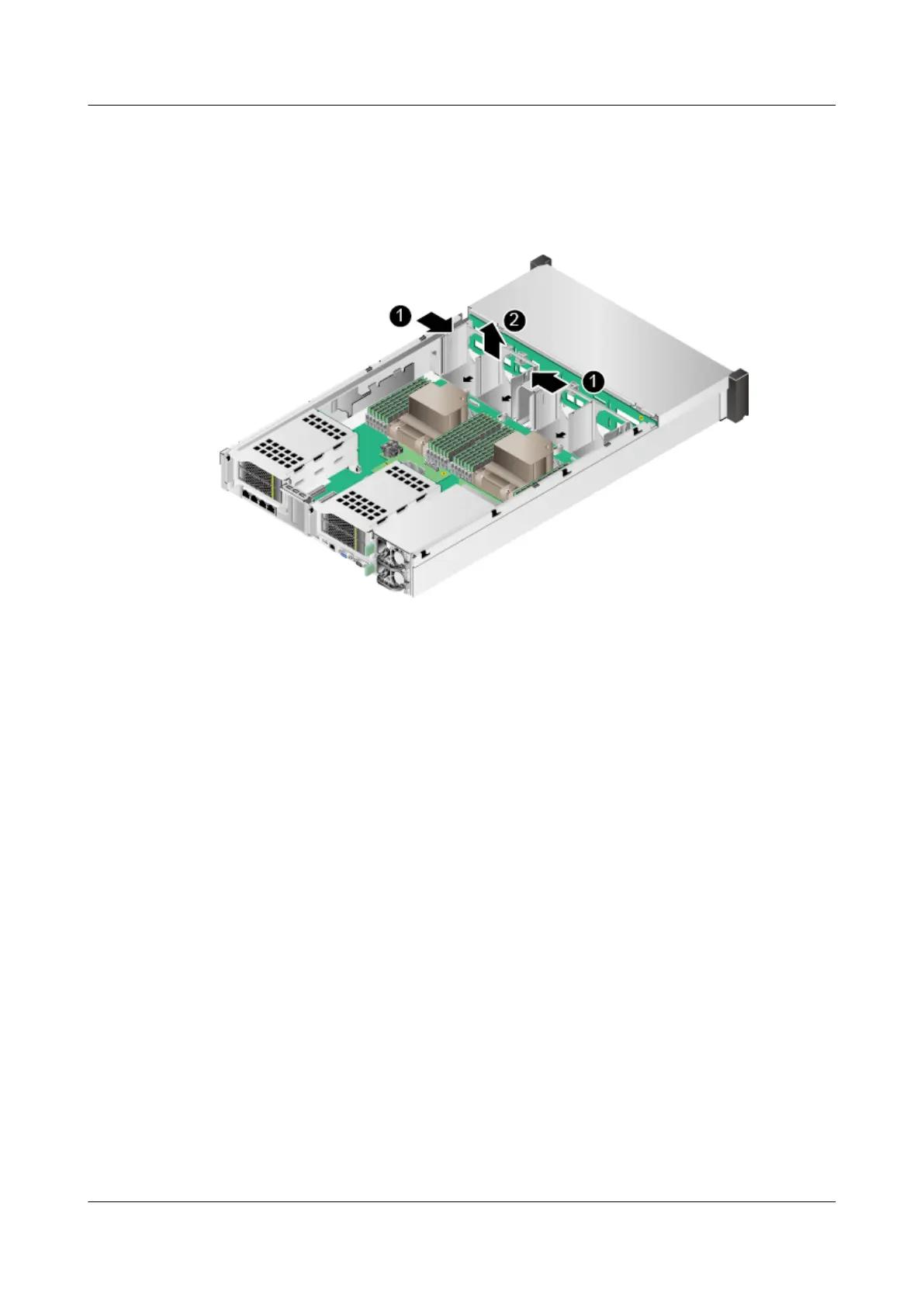

Figure 7-30 Removing a fan module bracket
Step 11 Remove the cable to be removed.
Step 12 Place the removed cable in an ESD bag.
----End
7.18 Installing an Internal Cable
Install an internal cable to replace the original one.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the cable to be replaced. For details, see 7.17 Removing an Internal
Cable.
Step 3 Take a spare cable out of the ESD bag.
Step 4 Install the spare cable. For details about cable port positions, see 2.7 Internal
Cabling.
Step 5 Install fan module brackets in the chassis. See Figure 7-31.
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 175

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
