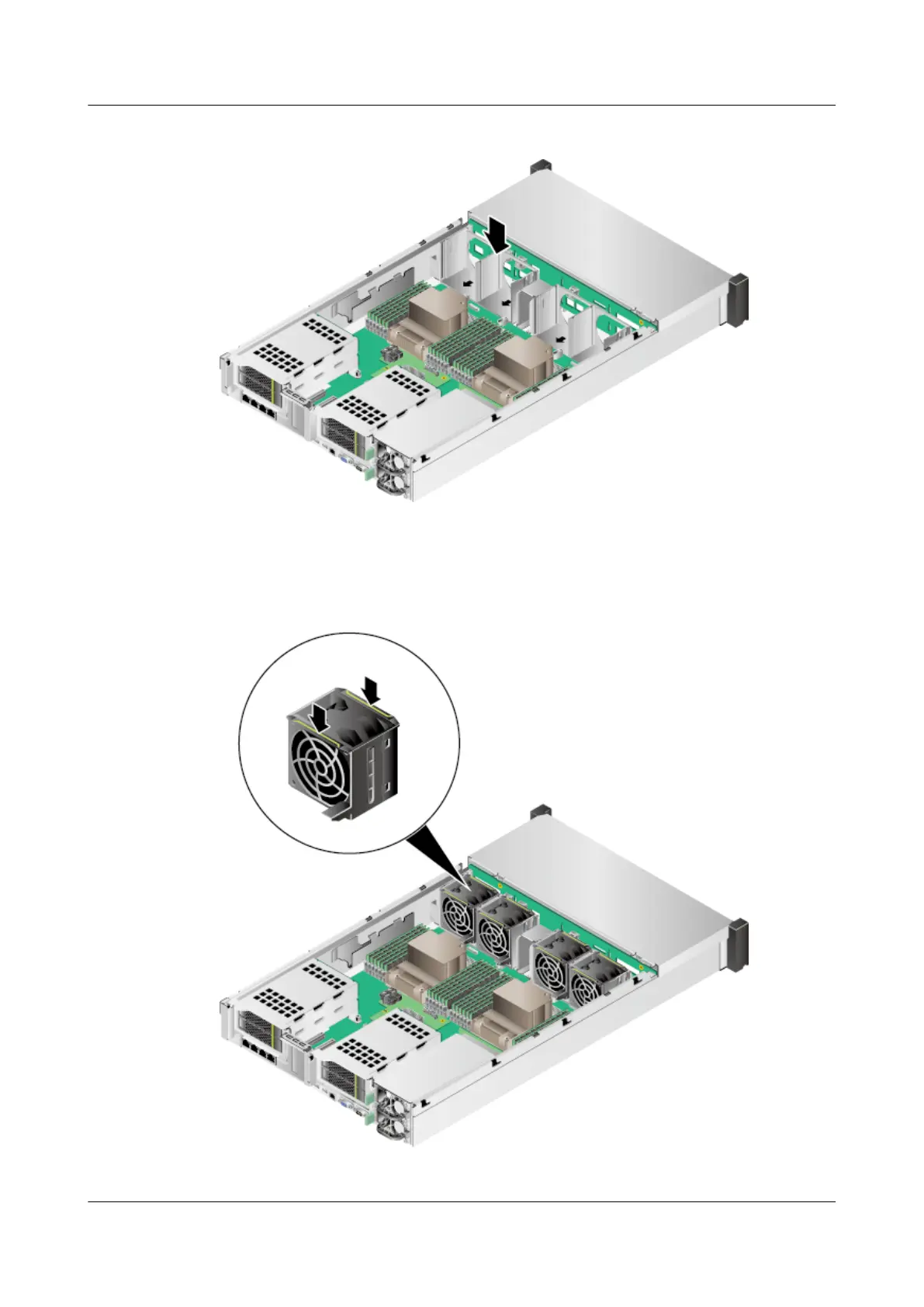

Figure 7-31 Installing fan module brackets
Step 6 Insert fan modules into the slots and ensure that fan module cable connectors t
into the ports on the mainboard. See Figure 7-32.
Figure 7-32 Installing fan modules
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 176

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei RH2288H V3 and is the answer not in the manual?

Huawei RH2288H V3 Specifications

General IconGeneral
Form Factor2U Rack
ProcessorIntel Xeon E5-2600 v3/v4 series
MemoryUp to 1.5 TB, 24 DDR4 DIMM slots
StorageSupports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID SupportRAID 0, 1, 10, 5, 50
Network2 or 4 x GE ports
Power Supply2 x hot-swappable PSUs
ManagementiBMC (Intelligent Baseboard Management Controller)
Operating System SupportMicrosoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
