Huawei RH2288H V3 User Manual

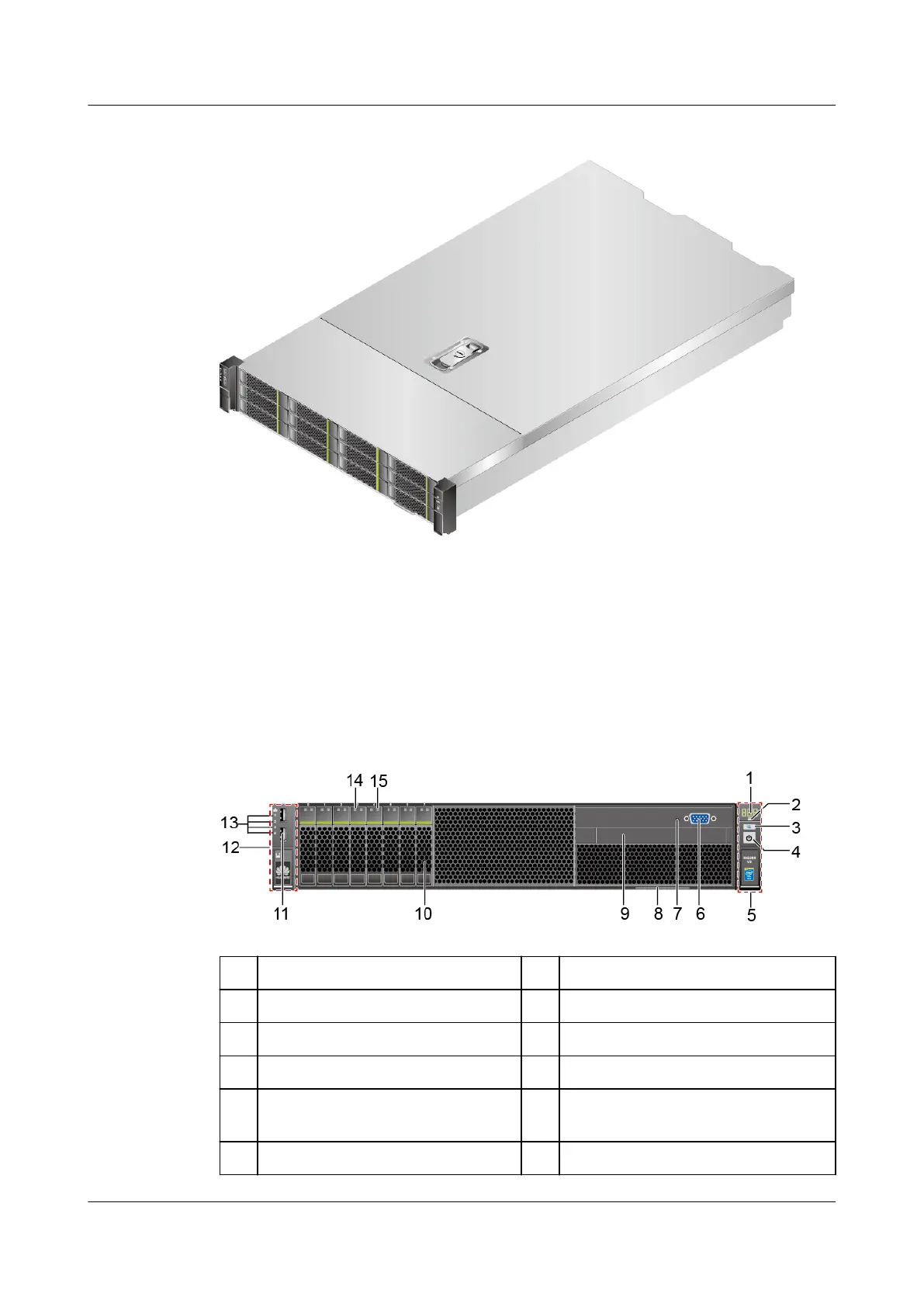

Figure 2-1 RH2288H V3 with 12 drives
2.2 Appearance
Front Panel
Figure 2-2 shows the front panel of an RH2288H V3 with eight 2.5-inch drives.
Figure 2-2 Front panel of an RH2288H V3 with eight 2.5-inch drives
1
Fault diagnosis LED 2 Health status indicator
3 UID button/indicator 4 Power button/indicator
5 Right mounting ear 6 VGA port
7 NMI button 8 Label plate with an ESN label
9 Built-in DVD drive or
touchscreen LCD diagnosis panel
10 Drives (numbered 0 to 7 from left
to right)
11 USB 2.0 port 12 Left mounting ear
RH2288H V3 Server
User Guide 2 Overview
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 8

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
