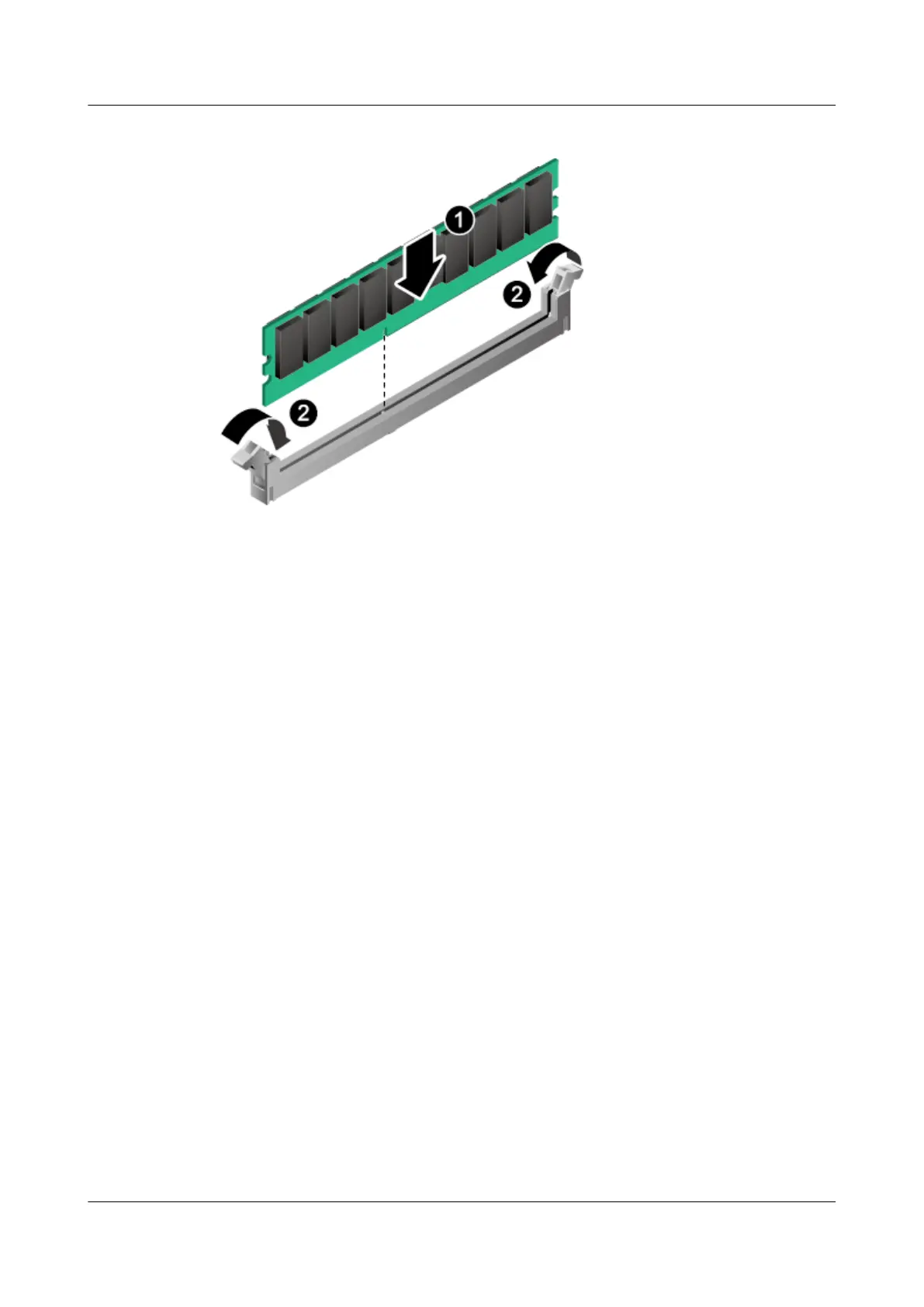

Figure 7-92 Installing a DIMM
Step 6 Install the air duct. For details, see 7.14 Installing the Air Duct.
Step 7 Install the supercapacitor if it is required. For details, see 7.37 Installing the
Supercapacitor (Screw-in RAID Controller Card).
Step 8 Install full-height full-length riser cards if they are required. For details, see 7.20
Installing a Riser Card.
Step 9 Install the chassis cover. For details, see 7.12 Installing the Chassis Cover.
Step 10 Install the RH2288H V3. For details, see 3.4 Installing the Server.
Step 11 Connect all external cables such as power and network cables. For details, see 3.5
Connecting External Cables.
Step 12 Power on the RH2288H V3. For details, see 4.1 Powering On the Server.
----End
7.43 Removing a Mainboard
Remove a mainboard if it has failed.
Procedure
Step 1
Conrm the iBMC and BIOS congurations with the customer for quick recovery
after replacing the motherboard.
Step 2 Log in to the iBMC and record the rmware (iBMC, BIOS, and CPLD) versions of
the mainboard to be replaced. (Choose Information > System Info > Mainboard
Info on the iBMC WebUI or run the ipmcget -d version command on the iBMC
CLI.)
Step 3 (Optional) Export the iBMC and BIOS
conguration les. For details, see "Import/
Export" in
Huawei Rack Server iBMC User Guide
. After replacing the mainboard,
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 230
