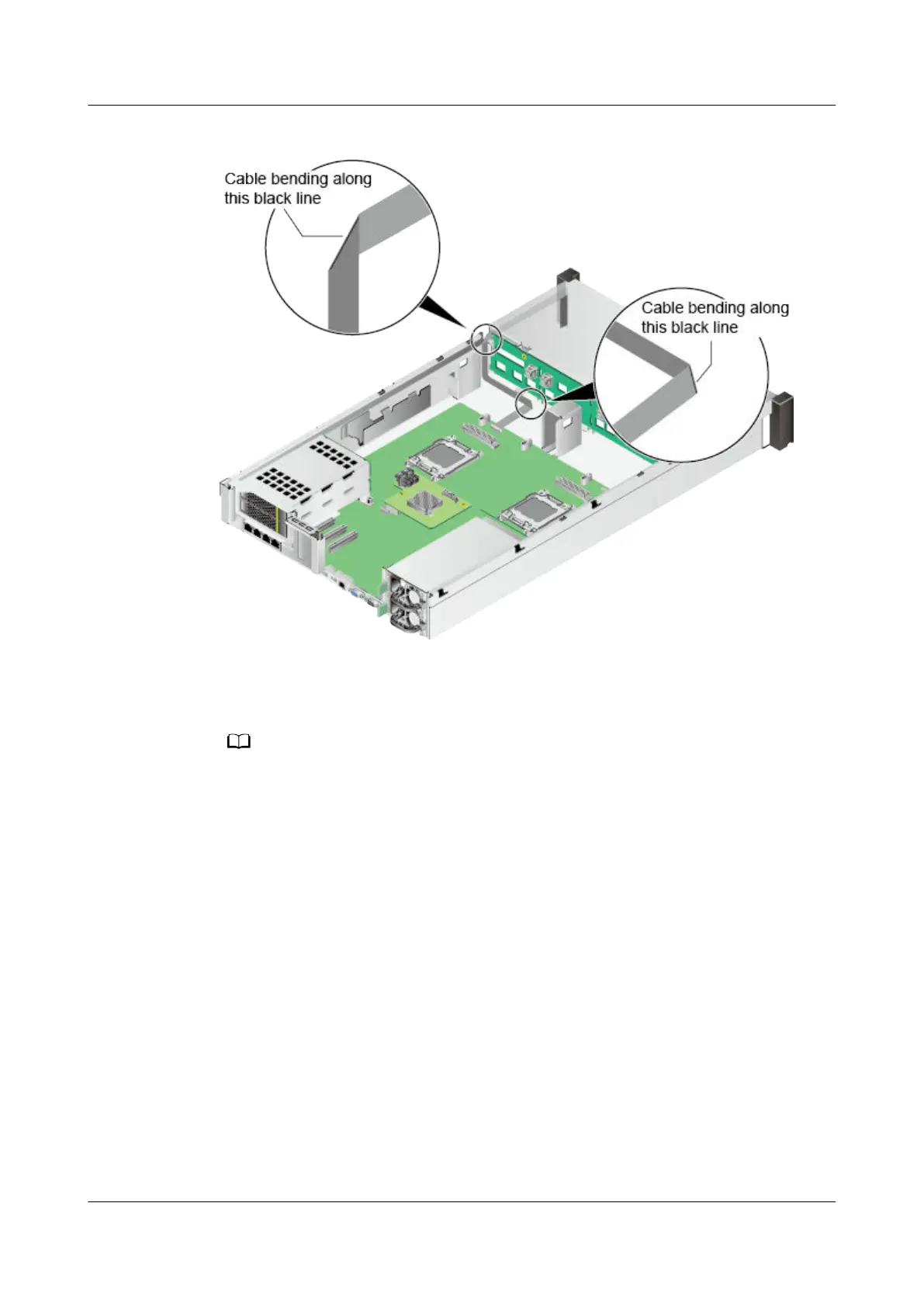

Figure 7-166 Bending the signal cable
Step 6 Connect the mounting ear signal cable to the right mounting ear connector (J43)
on the mainboard. See step (2) in Figure 7-165.
NO TE
Ensure that the blue side of the signal cable faces upwards when connecting the cable. Do
not use excessive force when connecting or removing the cable.
Step 7 Install the mounting ear in the arrow direction. See step (3) in Figure 7-165.
Step 8 Tighten the screw on the right mounting ear. See step (4) in Figure 7-165.
Step 9 Install the fan module brackets in the chassis. See Figure 7-167.
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 296

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
