No. Description BOM Number
1 Signal cable for connecting the indicator
plate of the right mounting ear to the
mainboard (J43)
04051026
2 SAS cable for connecting Port B (J29) of the
front drive backplane to Port B of the RAID
controller card on the mainboard
04051021 (LSI
SAS3008/3108)
04051024 (LSI
SAS2308/2208)
3 SAS cable for connecting Port A (J28) of the
front drive backplane to Port A of the RAID
controller card on the mainboard
04051021 (LSI
SAS3008/3108)
04051024 (LSI
SAS2308/2208)
4 Signal cable for connecting the front drive
backplane (J1) to the mainboard (J1003)
04051052
5 Signal cable for connecting the USB plate of
the left mounting ear to the mainboard (J42)
04051006
6 Power cable for connecting the front drive
backplane (J24) to the mainboard (J30 PWR
CONN1)
04150997
Internal Cabling for a Server with Two RAID Controller Cards
The RH2288H V3 does not support rear drives if it is congured with two RAID
controller cards, which include one RAID controller card in a standard PCIe slot
and one on the mainboard.

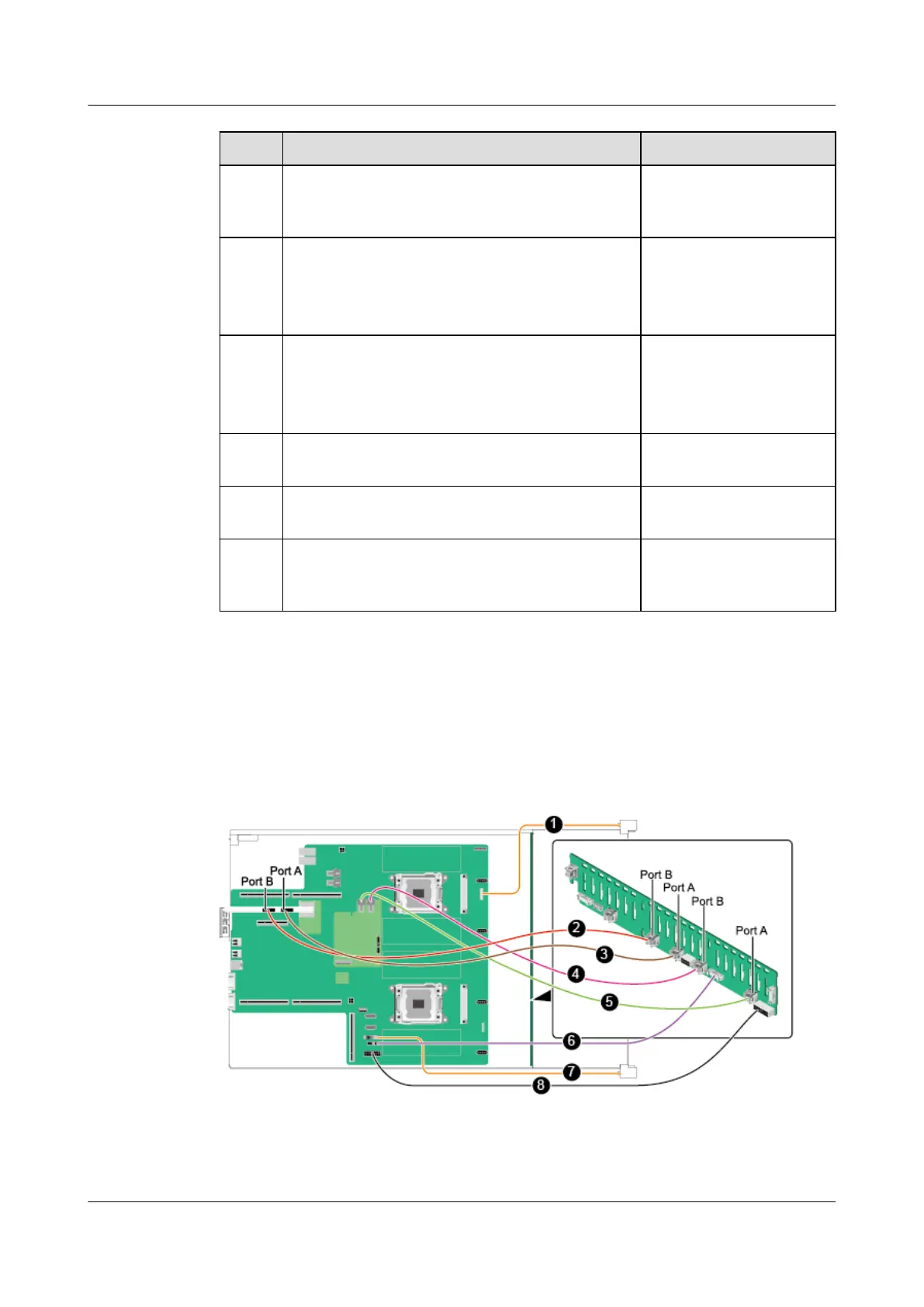

Figure 2-31 Internal cabling for a server with two RAID controller cards
RH2288H V3 Server
User Guide 2 Overview
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 58

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
