Chapter 1: Introduction
Building Cascaded Systems
A cascade system allows inputs from multiple QVM6800+ cascade modules to drive one
display.
A 6800+ frame, fully populated with six QVM6800+ cascade modules, could provide:
1) Six independent quad cards
2) A 24 input cascade system
3) Any combination of the above

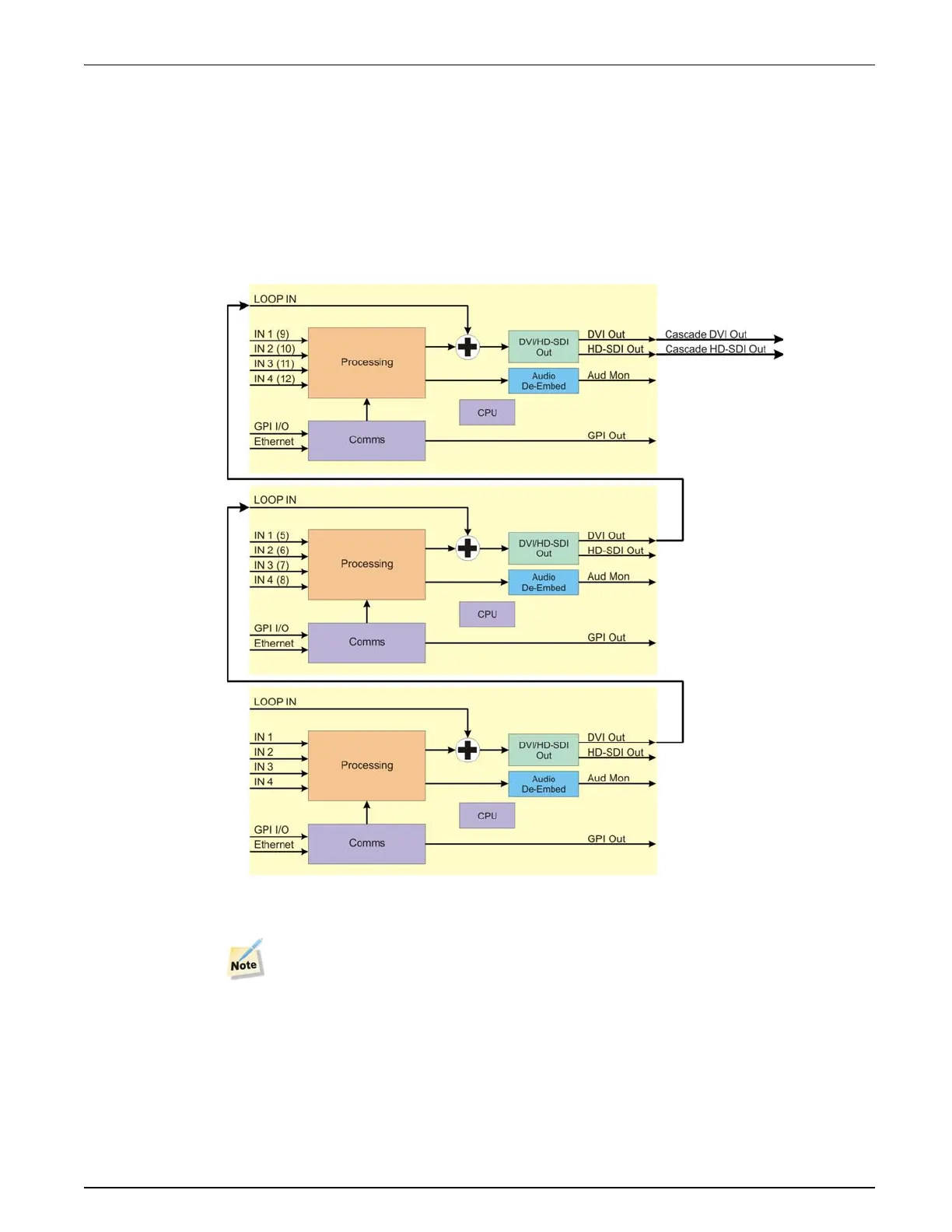

Figure 1-4. QVM6800+ Cascade System
The 12 input example shown would require 9 slots. Input mapping is configured from within
ZConfigurator.
