QVM6800+ Installation and Operation Manual 15
Chapter 3: Using ZConfigurator
Getting started

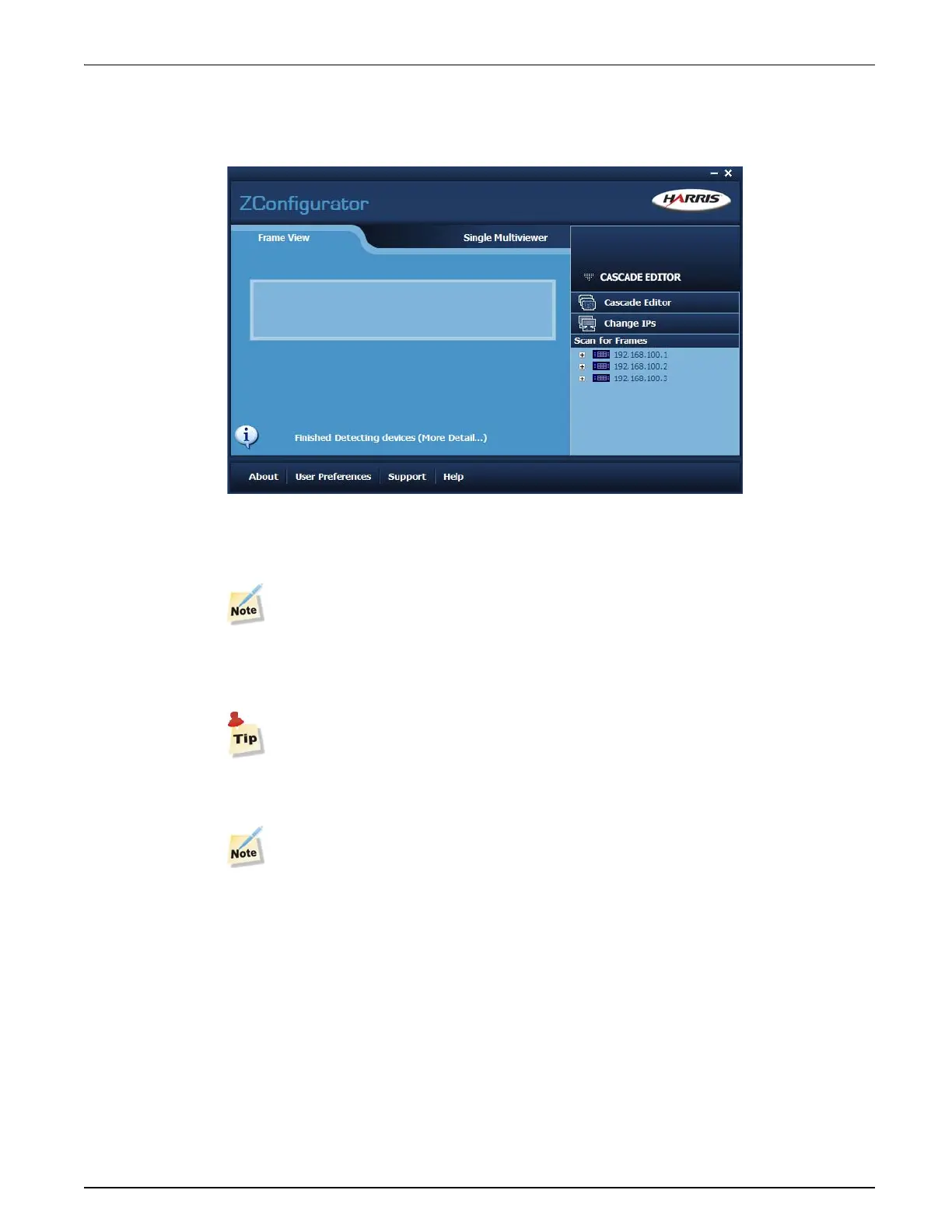

To start building a cascade system from multiple QVM6800+ modules, select Frame View in
the main application and double click on Scan for Frames.
Click on the plus sign by a frame to see the QVM modules installed.
If no frames can seen, check that the frame Ethernet port is also connected to the same network
that the QVM6800+ modules are connected to.
A cascade system requires that each FR6802+ frame has its Ethernet port connected to
the same network that ZConfigurator is connected to. However, only ZConfigurator can be
used to configure a cascade. Navigator and CCS-P control and monitoring software should
not be used to control or create cascades created by ZConfigurator.
The IP address of each card must lie in the same subnet range as each QVM6800+ ETH
module installed. Frame IP addresses can be changed using telnet commands; refer to the
FR6802+ QXF manual for further help.
If difficulty in detecting frames in frame view persists, it is recommended to contact
customer service as a frame upgrade may be required.
