QVM6800+ Installation and Operation Manual 57
Chapter 7
Connectors and Cables
DVI Connector

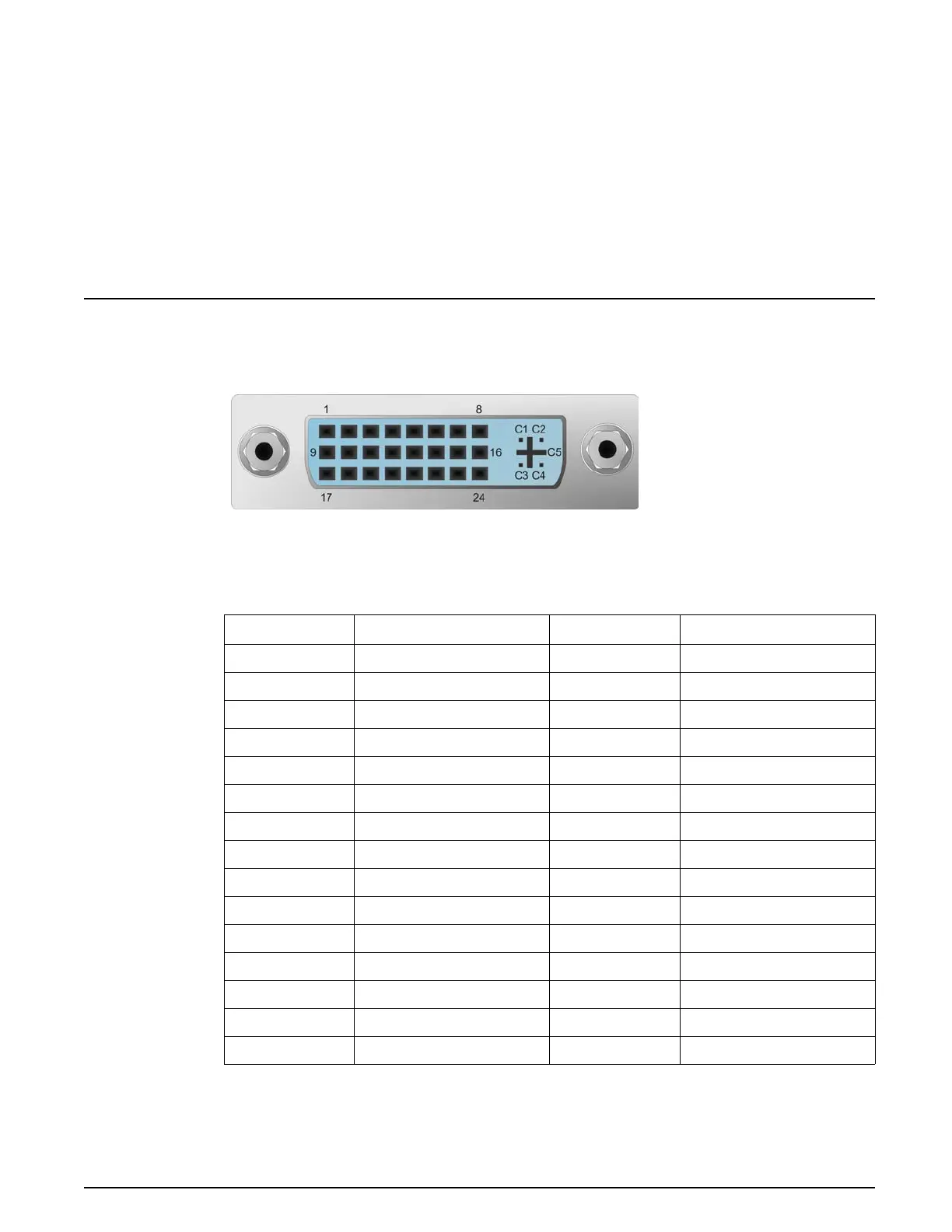

Figure 7-1. DVI Connector
Table 7-1. Pinouts for the DVI Connector
Pin No. Description Pin No. Description
1 DATA 2+ 16 Hot Plug Detect
2 DATA 2- 17 DATA 0-
3 DATA 2/4 SHEILD 18 DATA 0+
4 DATA 4- 19 DATA 0/5 SHIELD
5 DATA 4+ 20 DATA 5-
6 DDC CLOCK 21 DATA 5+
7 DDC DATA 22 CLOCK SHIELD
8 N/C 23 CLOCK +
9 DATA 1- 24 CLOCK -
10 DATA 1+
11 DATA 1/3 SHIELD C1 N/C
12 DATA 3- C2 N/C
13 DATA 3+ C3 N/C
14 +5V POWER C4 N/C
15 DATA GND C5 Analog Ground
