Inovance IS620P Series User Manual

IS620P User Manual Chapter 3 Wiring of Servo System
- 49 -

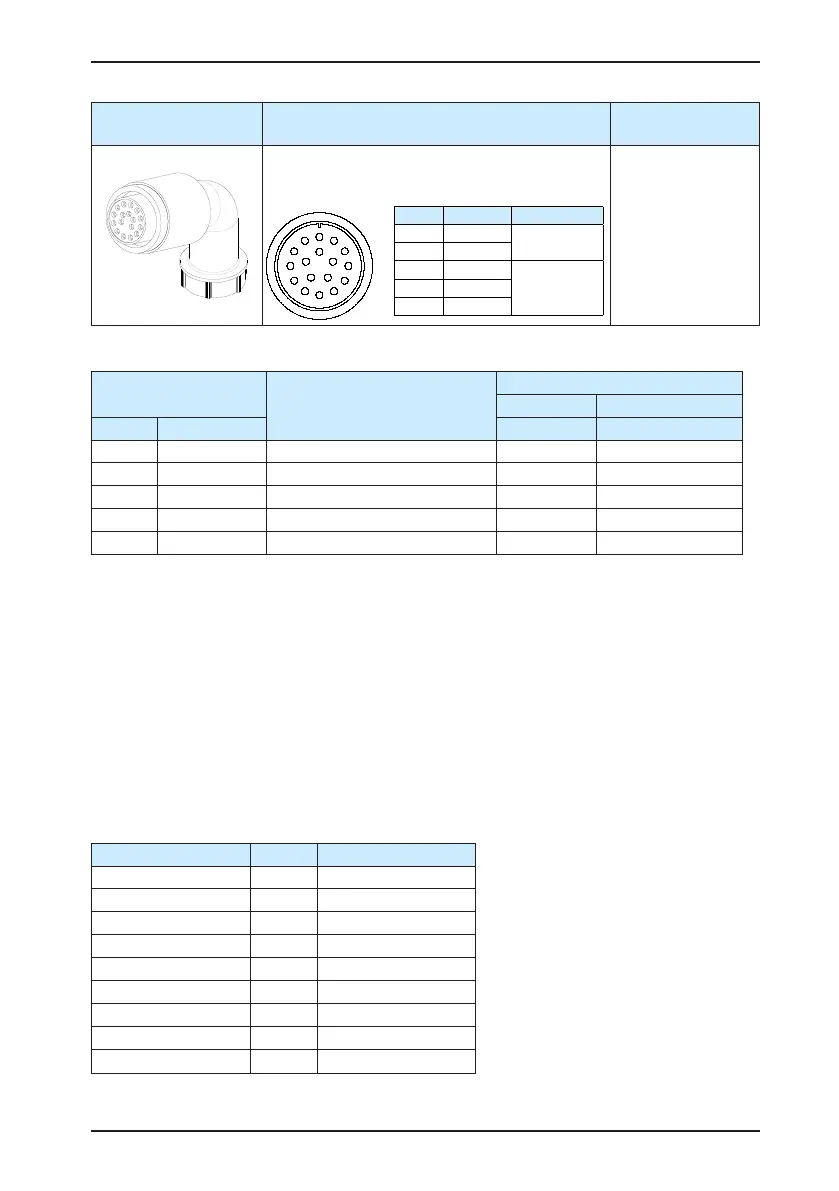

Connector Appearance Terminal Pin Layout
Frame Size of
Adaptable Motor
MIL-DTL-5015 series
3108E20-29S aviation plug
20-29 aviation plug
A
B
M
C
L
N
T
P
D
K
R
S
E
J
F
G
H
Pin No. Signal
A PS+
Twisted-pair
B PS-
G +5V
H GND
J Shielded
100
130
180
Table 3-10 Pin connection relation of encoder cables
DB9 at Servo Drive Side
Function Description
Motor Side
9-pin 20-29 Aviation Plug
Signal Pin No. Pin No. Pin No.
PS+ 1 Serial communication signal + 3 A
PS- 2 Serial communication signal - 6 B
+5V 7 Encoder +5V power supply 9 G
GND 8 Encoder +5V power ground 8 H
PE Housing Shield 7 J
Observe the following precautions when wiring the encoder:
1. Servo drive and shield at servo motor side must be properly grounded. Otherwise, the
servo drive will report false error.
2. It is recommended that twisted-pair cables of size from AWG26 to AWG16 be used. The
cables shall not exceed 20 m.
3. Do not connect wires to the reserved pins.
4. To determine the length of the encoder cable, consider voltage drop caused by the
cable resistance and signal attenuation caused by the distributed capacitance. It is
recommended to use twisted-pair cable of size AWG26 or above (as per UL2464 standard)
and with a length within 10 m. The following table lists the recommended cable sizes.
Table 3-11 Recommended cable sizes
Cable Size Ω/km Allowed Cable Length
26 AWG (0.13 mm
2
) 143 10.0
25 AWG (0.15 mm
2
) 89.4 16.0
24 AWG (0.21 mm
2
) 79.6 18.0
23 AWG (0.26 mm
2
) 68.5 20.9
22 AWG (0.32 mm
2
) 54.3 26.4
21 AWG (0.41 mm
2
) 42.7 33.5
20 AWG (0.52 mm
2
) 33.9 42.2
19 AWG (0.65 mm
2
) 26.9 53.2
18 AWG (0.82 mm
2
) 21.4 66.9
