Intel® Light Guided Diagnostics Intel® Server Boards S5520HC, S5500HCV, and S5520HCT TPS
Revision 1.8
Intel order number E39529-013
126
8.4 DIMM Fault LEDs

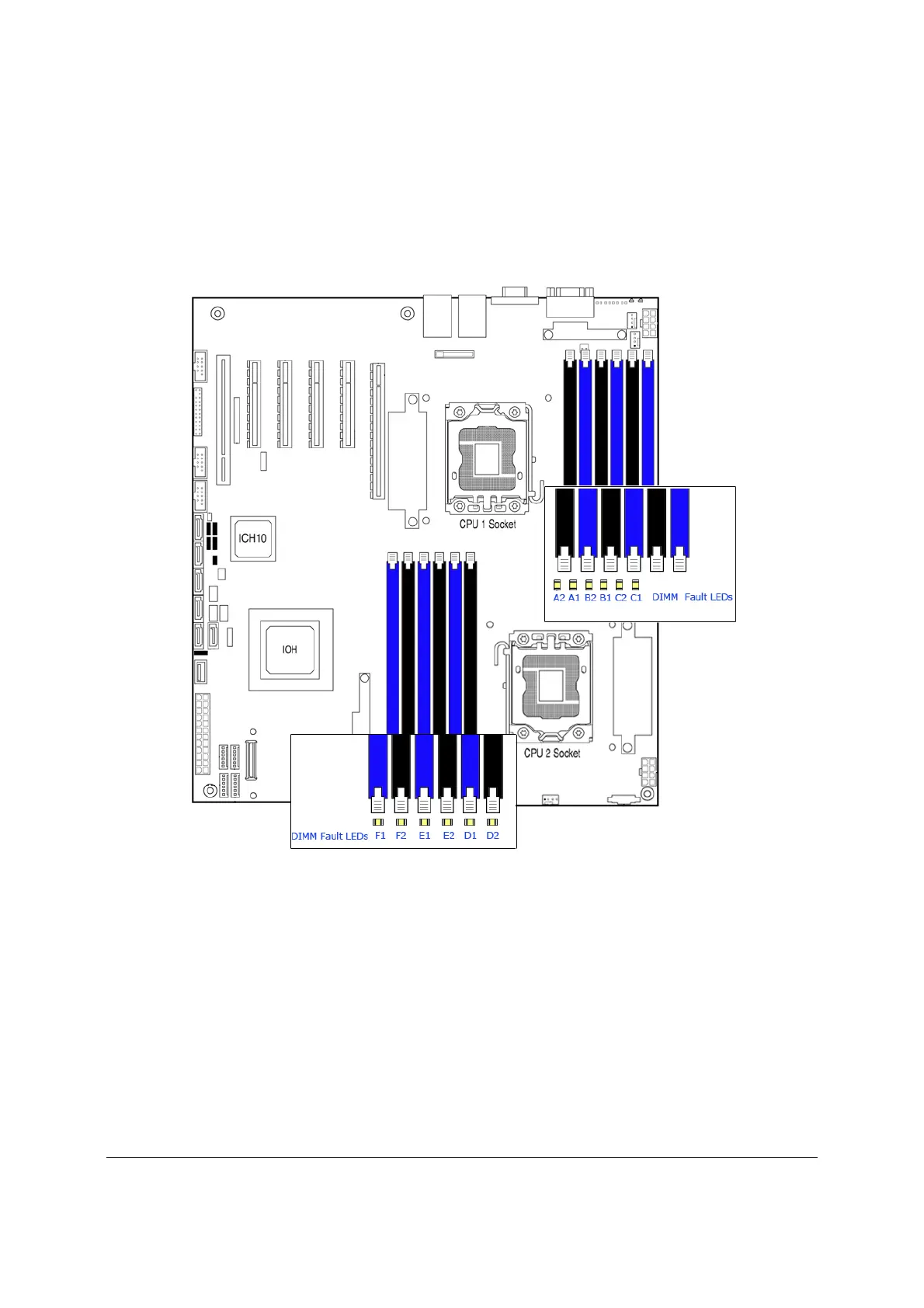

The server boards provide memory fault LED for each DIMM socket. These LEDs are located
as shown in the following figure. The DIMM fault LED illuminates when the corresponding DIMM
slot has memory installed and a memory error occurs.
* D2, E2, and F2 DIMM slot and Fault LED’s are empty in Intel
®
Server Board S5500HCV
Figure 57. DIMM Fault LED’s Location
