Functional Architecture Intel® Server Boards S5520HC, S5500HCV, and S5520HCT TPS
Revision 1.8
Intel order number E39529-013
56
System pre-requirements:
Processor: B1 or later stepping Intel
®
Xeon Processor 5600 Series
Server Board: Intel
®
Server Board S5520HCT; PBA version E80888-553 or later
Memory: At least 1 GB memory installed
Intel
®
TXT Setup:
1 – Enable TPM module:
Go to BIOS setup Menu page, Security Tab, set administrator password.

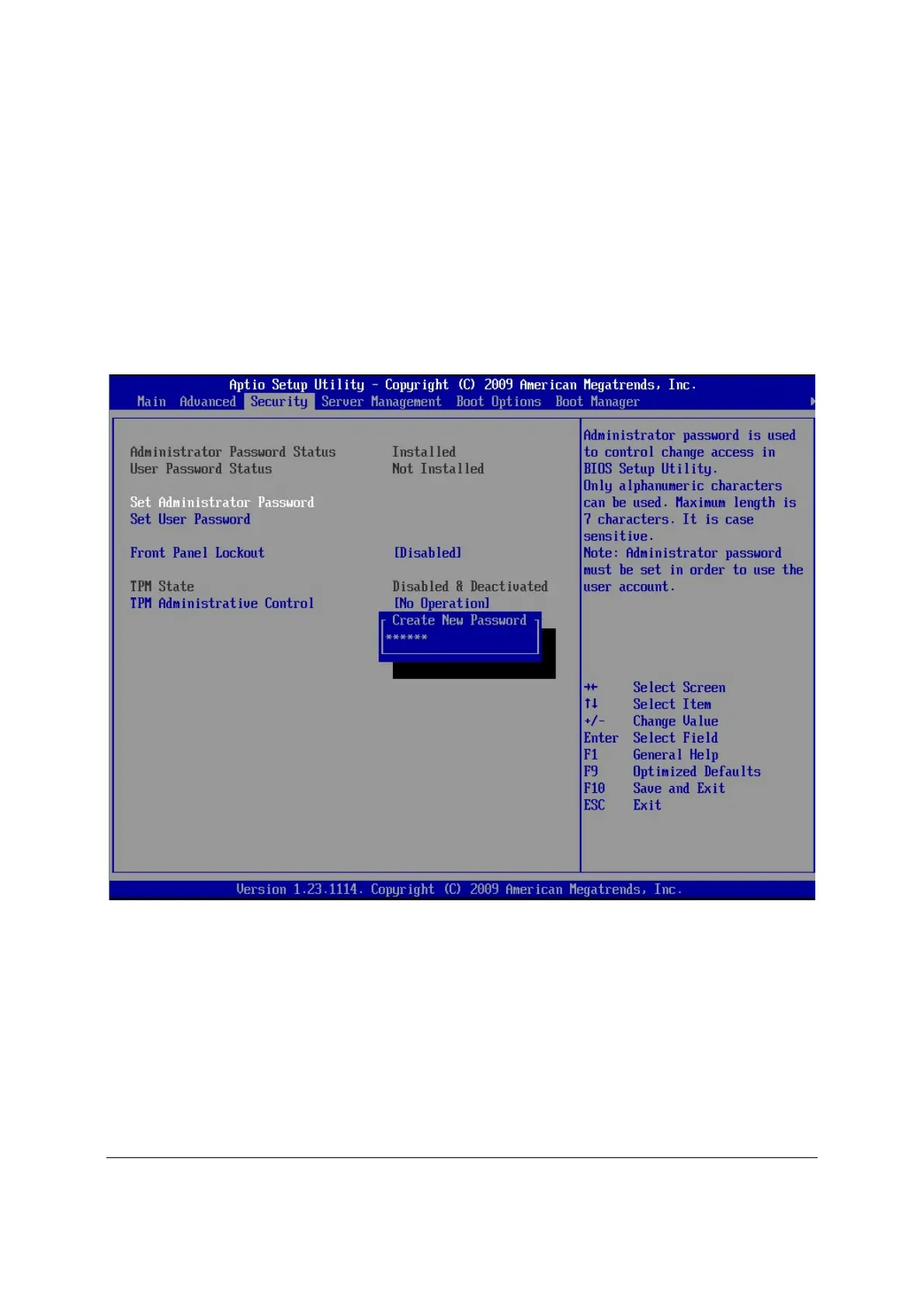

Figure 22. Setting Administrator password in BIOS
2. After administrator password is setup, press “F10” to save and exit BIOS setup.
3. System will automatically reboot, go to BIOS setup Menu page, Security Tab, set TPM
Administrative Control as “Turn ON”, press “F10” to save and exit BIOS setup.
