Intel® Server Boards S5520HC, S5500HCV, and S
5520HCT TPS
Overview
Revision 1.8
Intel order number E39529-013
5
Server Board La
yout

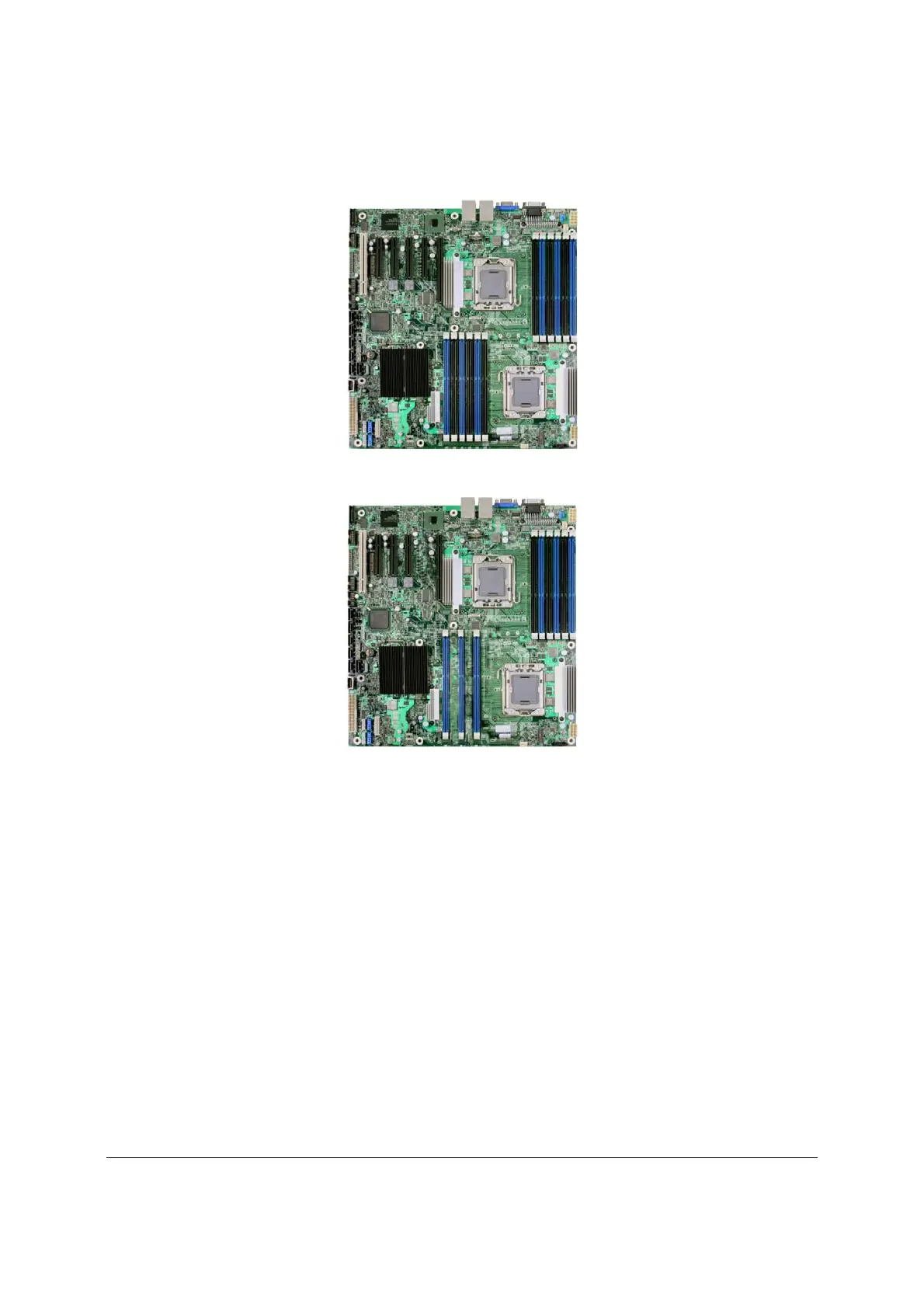

Figure
1. Intel
®
Server Board S5520HC
Figure 2. Intel
®
Server Board S5500HCV
2.1.1
Server Board Connector and Component
Layout
The following figure sho
ws the layout of the se
rver board. Ea
ch connector and majo
r component
is identified by a number or
letter, and a description is given below the
figure.
