Functional Architecture Intel® Server Boards S5520HC, S5500HCV, and S5520HCT TPS
Revision 1.8
Intel order number E39529-013
28
Server Board CPU Socket DIMM Identifier Channel/Slot
Intel
®
Server Board S5520HC
CPU 1
A1 (Blue) Channel A, Slot 0
A2 (Black) Channel A, Slot 1
B1 (Blue) Channel B, Slot 0
B2 (Black) Channel B, Slot 1
C1 (Blue) Channel C, Slot 0
C2 (Black) Channel C, Slot 1
CPU 2
D1 (Blue) Channel D, Slot 0
D2 (Black) Channel D, Slot 1
E1 (Blue) Channel E, Slot 0
E2 (Black) Channel E, Slot 1
F1 (Blue) Channel F, Slot 0
F2 (Black) Channel F, Slot 1

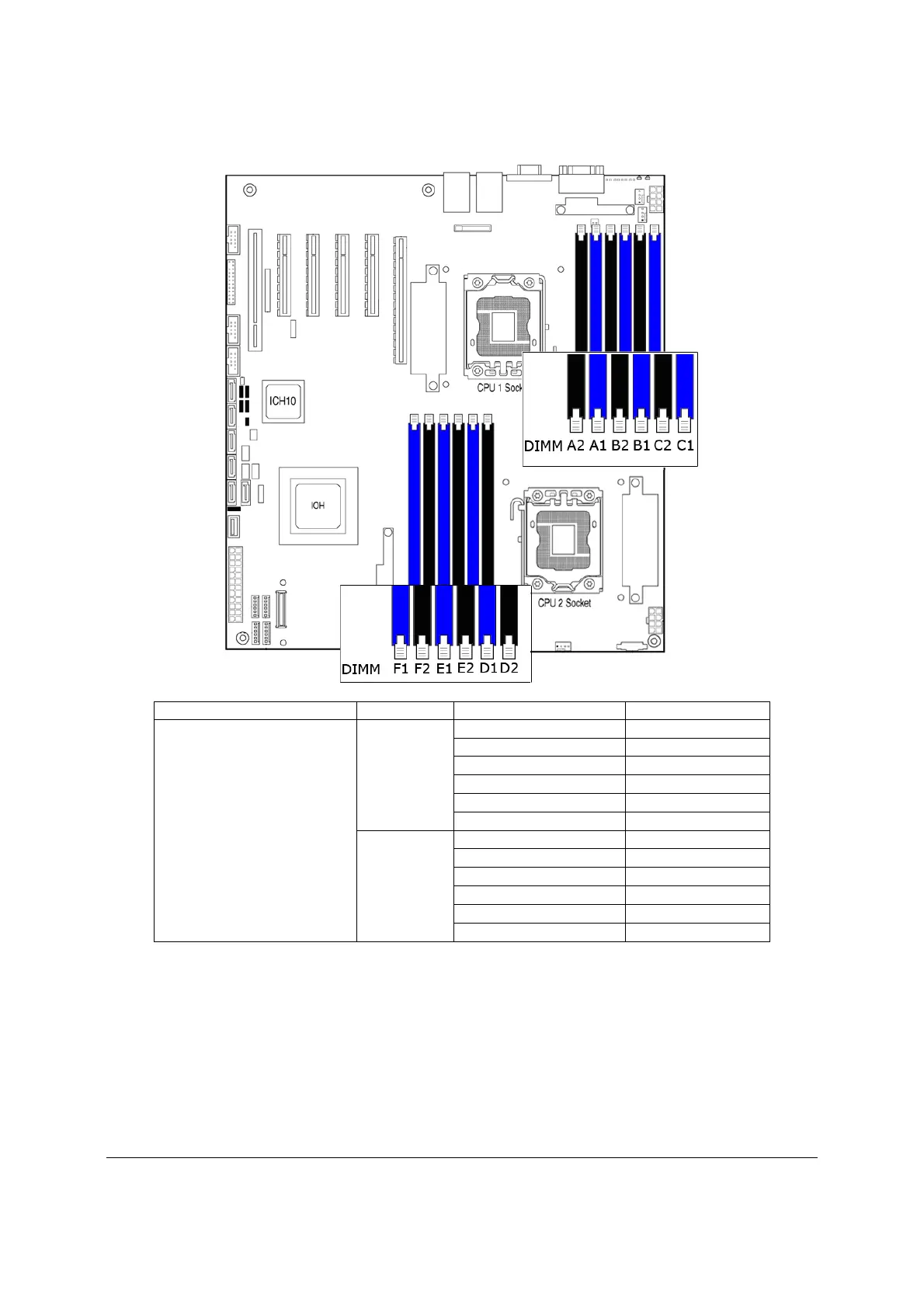

Figure 16. Intel
®
Server Board S5520HC DIMM Slots Arrangement
