Intel® Server Boards S5520HC, S5500HCV, and S5520HCT TPS Functional Architecture
Revision 1.8
Intel order number E39529-013
45
Figure 19. Intel
®

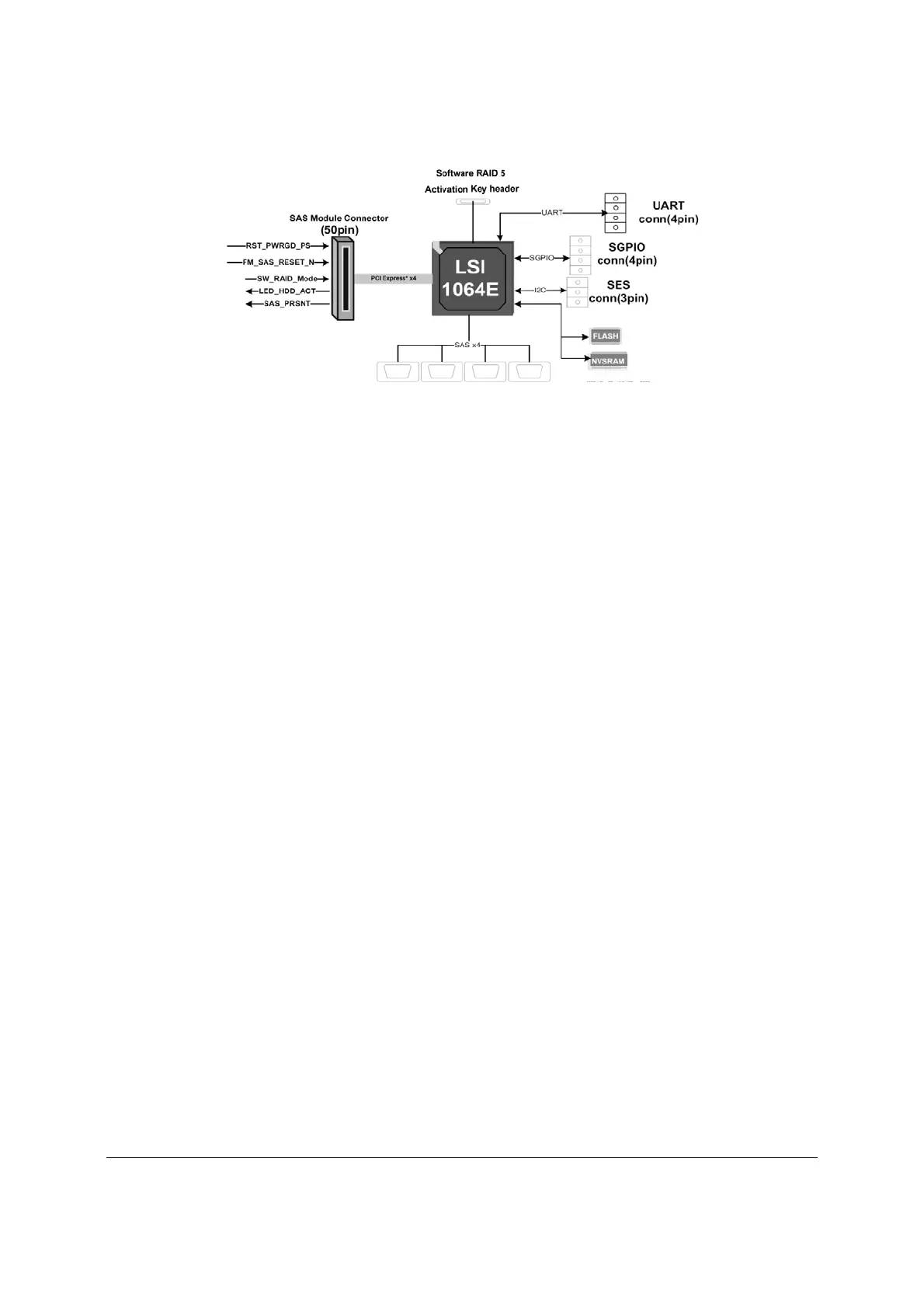

SAS Entry RAID Module AXX4SASMOD Functional Block Diagram
3.6.1 SAS RAID Support
The BIOS Setup Utility provides drive configuration options on the Advanced | Mass Storage
Controller Configuration setup page for the Intel
®
SAS Entry RAID Module AXX4SASMOD,
some of which affect the ability to configure RAID.
The “Intel
®
SAS Entry RAID Module” option is enabled by default once the Intel
®
SAS Entry
RAID Module AXX4SASMOD is present. When enabled, you can set the “Configure Intel
®
SAS
Entry RAID Module” to either “LSI* Integrated RAID” or “Intel
®
ESRTII” mode.
