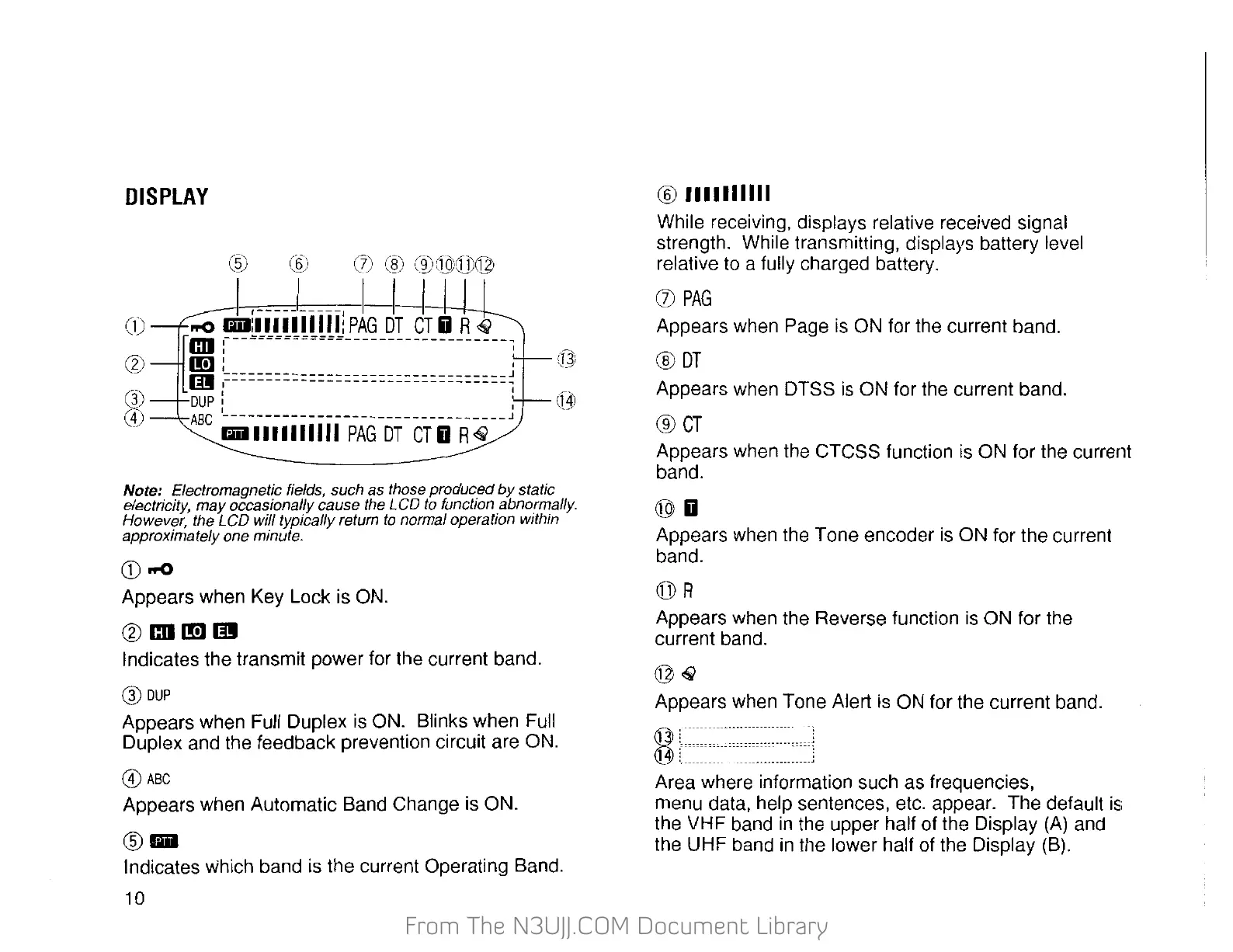

DISPLAY
Note:
Electromagnetic fields, such
as
those produced
by
static
electricity, may occasionally cause the LCD
to
function abnormally.
However, the LCD will typically return
to
normal operation within
approximately one minute.
Q)...o
Appears when Key Lock is ON.
®llDI!!JID
Indicates the transmit power for the current band.
@DUP
Appears when Full Duplex
is
ON. Blinks when Full
Duplex and the feedback prevention circuit are ON.
@ABC
Appears when Automatic Band Change is ON.
®•
Indicates
Which
band is the current Operating Band.
10
@
1111111111
While receiving, displays relative received signal
strength. While transmitting, displays battery level
relative to a fully charged battery.
(J)
PAG
Appears when Page is ON for the current band.
®DT
Appears when DTSS is ON for the current band.
@CT
Appears when the CTCSS function
is
ON for the current
band.
®D
Appears when the Tone encoder
is
ON for the current
band.
@R
Appears when the Reverse function is ON for the
current band.
@~
Appears when Tone Alert is ON for the current band.
~
..........
.
Area where information such as frequencies,
menu data, help sentences, etc. appear. The default is
the VHF band
in
the upper half of the Display
(A)
and
the UHF band in the lower half of the Display (B).
