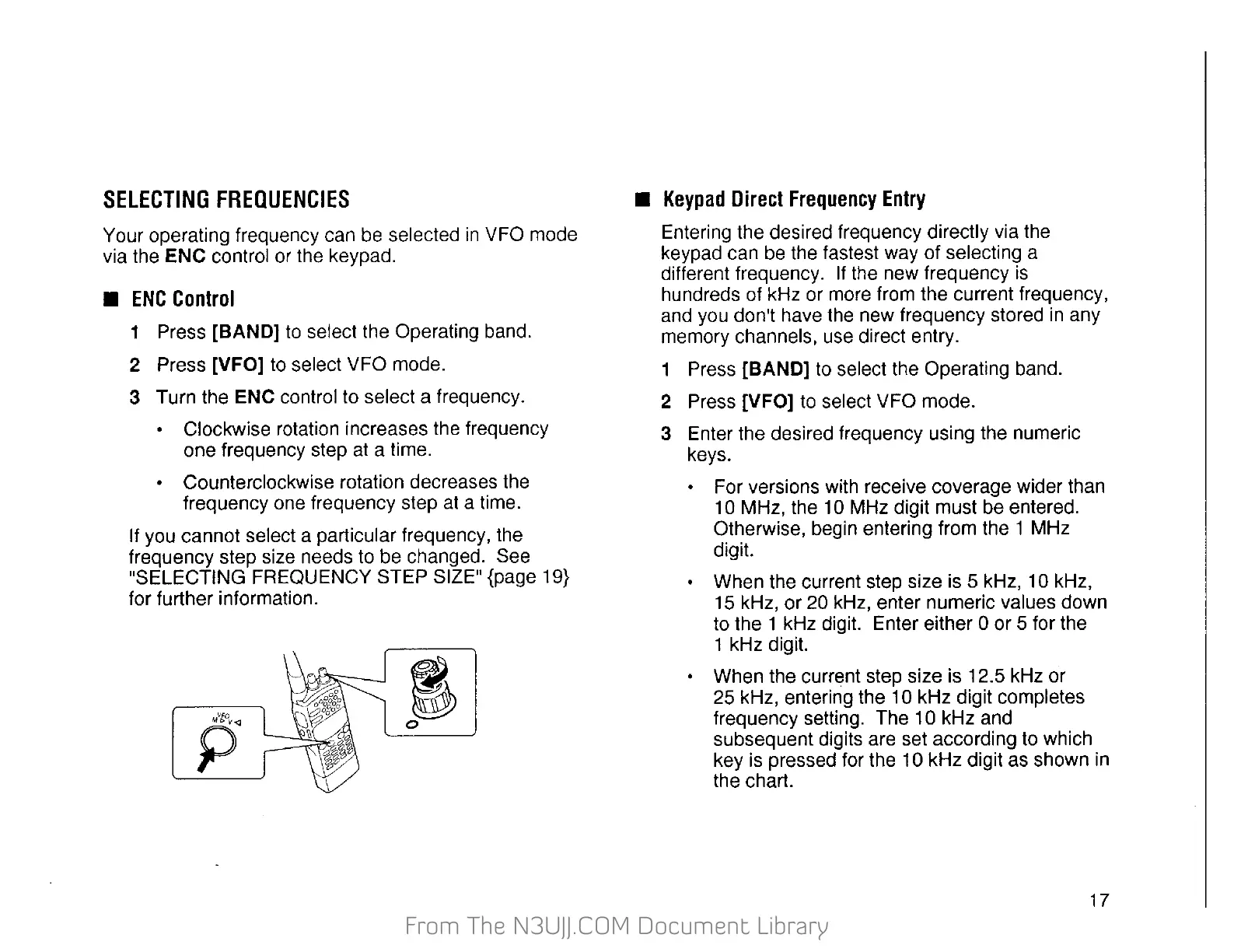

SELECTING
FREQUENCIES
Your operating frequency can
be
selected
in
VFO mode
via the
ENC control or the keypad.
•
ENC
Control
1 Press [BAND]
to
select the Operating band.
2 Press
[VFO]
to
select VFO mode.
3 Turn the
ENC control to select a frequency.
o Clockwise rotation increases the frequency
one frequency step
at
a time.
o Counterclockwise rotation decreases the
frequency one frequency step
at
a time.
If you cannot select a particular frequency, the
frequency step size needs to be changed. See
"SELECTING FREQUENCY STEP SIZE" {page 19}
for further information.
I
0
•
Keypad
Direct
Frequency
Entry
Entering the desired frequency directly via the
keypad can
be
the fastest way of selecting a
different frequency. If the new frequency
is
hundreds of kHz or more from the current frequency,
and you don't have the new frequency stored
in
any
memory channels, use direct entry.
1 Press [BAND]
to
select the Operating band.
2 Press
[VFO]
to
select VFO mode.
3 Enter the desired frequency using the numeric
keys.
o For versions with receive coverage wider than
1 0 MHz, the
10
MHz digit must be entered.
Otherwise, begin entering from the 1 MHz
digit.
o When the current step size is 5 kHz, 1 0 kHz,
15 kHz, or 20 kHz, enter numeric values down
to the 1 kHz digit. Enter either 0 or 5 for the
1 kHz digit.
o When the current step size is 12.5 kHz or
25 kHz, entering the 1 0 kHz digit completes
frequency setting. The 10 kHz and
subsequent digits are set according
to
which
key is pressed for the 1 0 kHz digit as shown
in
the chart.
17
