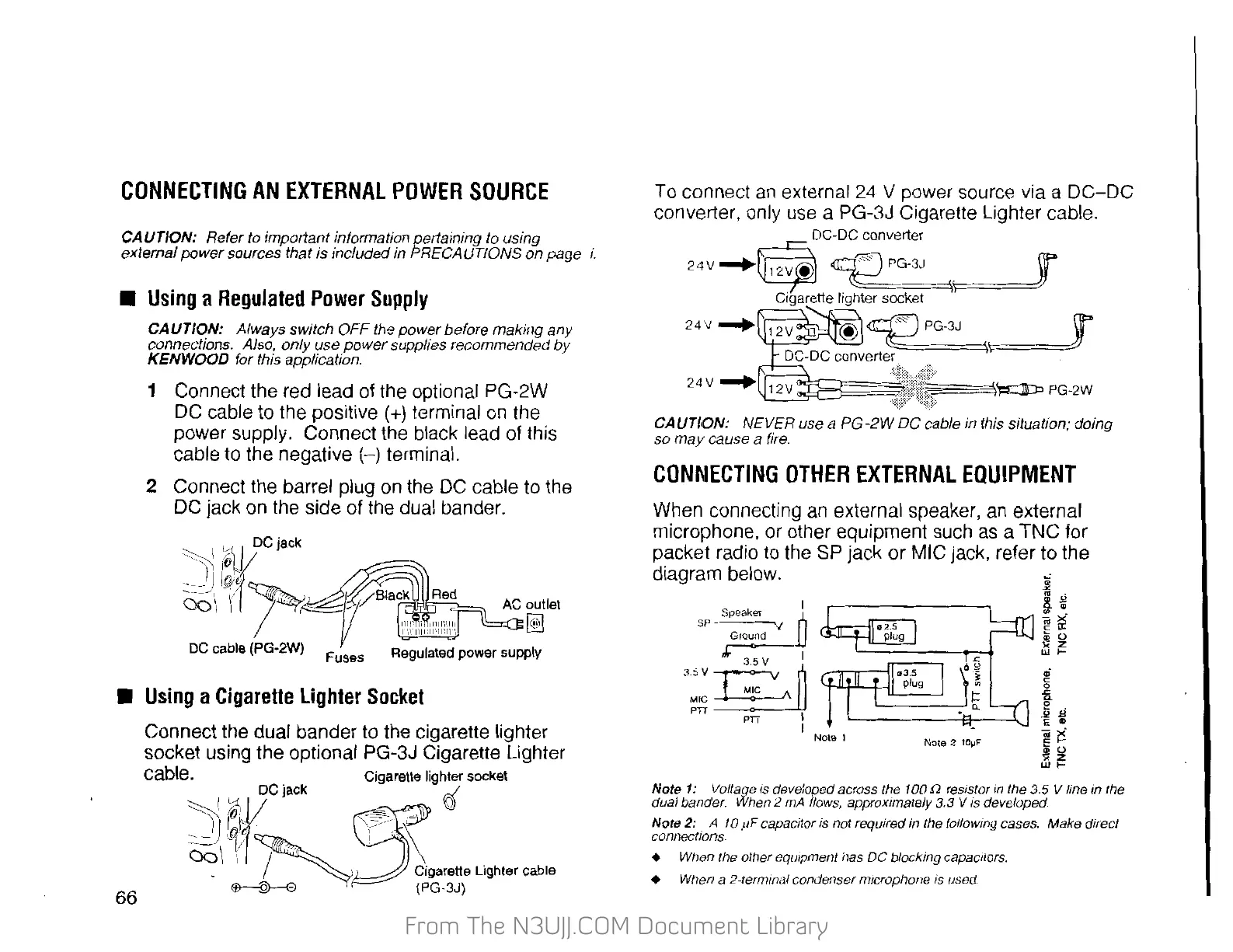

CONNECTING
AN
EXTERNAL
POWER
SOURCE
CAUTION: Refer to important information pertaining
to
using
external power sources that is included in PRECAUTIONS on page
i.
•
Using
a
Regulated
Power
Supply
CAUTION: Always switch OFF the power before making any
connections.
Also,
only use power supplies recommended by
KENWOOD for this application.
1 Connect the red lead of the optional PG-2W
DC cable to the positive(+) terminal
on
the
power supply. Connect the black lead of this
cable to the negative
(-)
terminal.
2 Connect the barrel plug on the DC cable to the
DC jack on the side of the dual bander.
"'"
1
;'\j
DC
jack
.
:1
:~~~
-
)·
~
60\
i
;~
DC cable (PG-2W)
Fuses
Regulated power supply
•
Using
a
Cigarette
Lighter
Socket
66
Connect the dual bander to the cigarette lighter
socket using the optional PG-3J Cigarette Lighter
cable.
Cigarelle lighter socket
DCjack
@
~l
1
J
r
6
.t~·
9\.,3~
~
\
[j
.::=<
'~':
~f
: '
Oo\
I.
I.·.
.
~
Cigarette
lighter
cable
@---@-<3
..
(PG-3J)
To connect
an
external 24 V power source via a
DC-DC
converter, only use a PG-3J Cigarette Lighter cable.
24V-+-
CAUTION: NEVER use a
PG-2W
DC cable
in
this situation; doing
so
may
cause a
fire.
CONNECTING
OTHER
EXTERNAL
EQUIPMENT
Note
l
Note 2
1(%JF
Note
1:
Voltage
ts
developed across lhe 100
fl
res1s10r
m the 3.5 V line m the
dual bander. When 2
mA
flows, approx1mately 3.3
Vis
developed,
Note 2: A
10
pF
capacitor is not required in the following cases. Make direct
connections.
+ When the
etller
eqwpmetlll>as
DC
blockmg capacitors.
• When a Z·termmal condenser microphone is used.
